The unit used here is a:

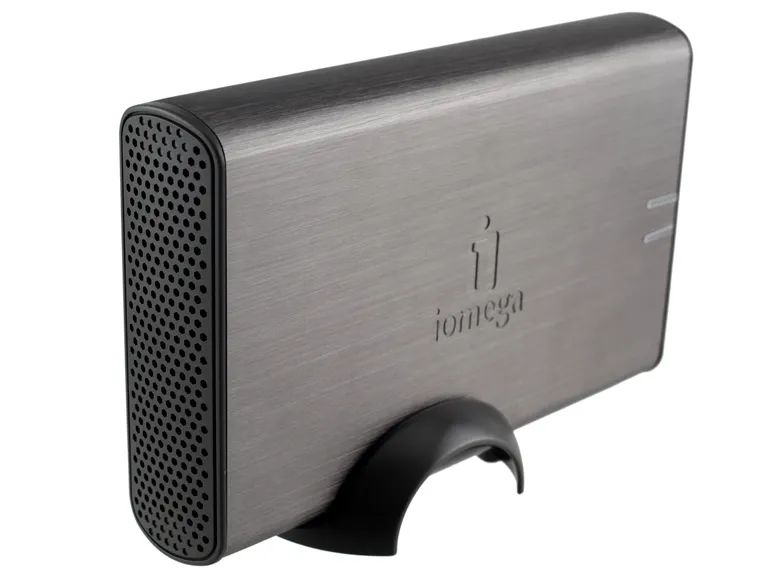

• Iomega NHDD1 / 31632500 Media Network Netstore device
• single HDD PATA connection
• using SMB 1.0 protocol

Interface #

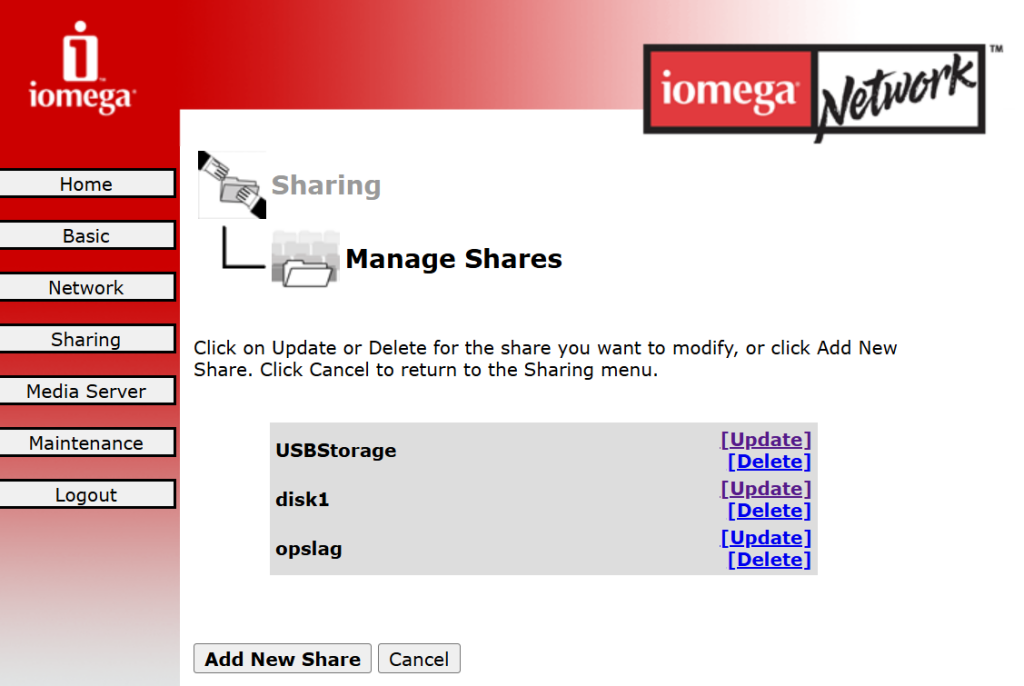

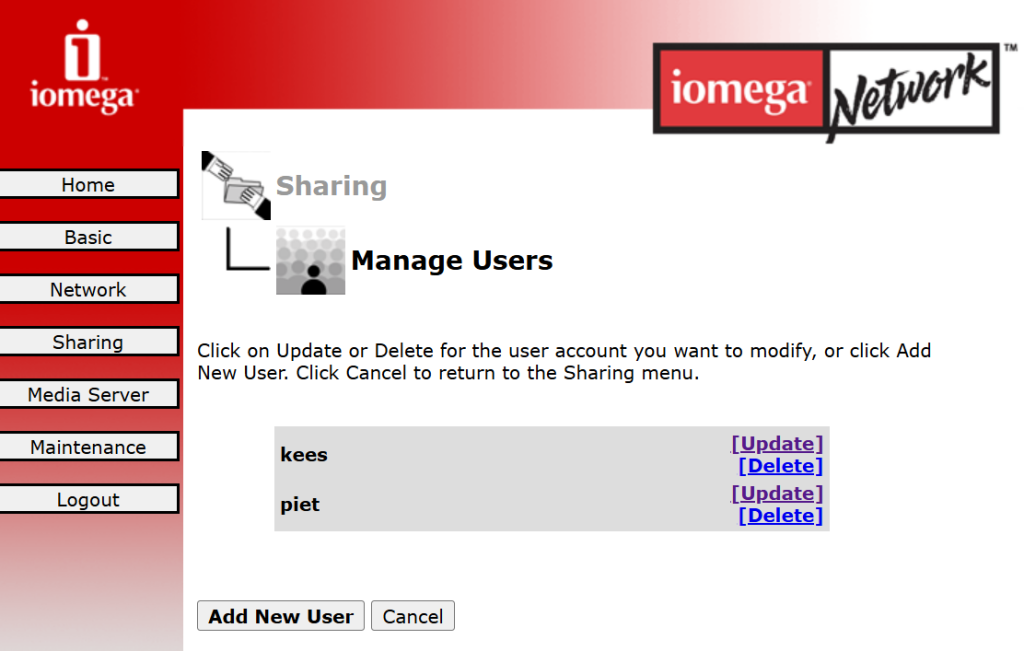

User interface is pretty simple, you can add users and shares, then add a user to a share:

---

Windows 10/11 and network #

The unit uses a SMB 1.0 interface wich is by default NOT enabled in modern Windows OS, you have to enable the SMB 1.0 service:

1. Windows key + R, type optionalfeatures.exe and press enter

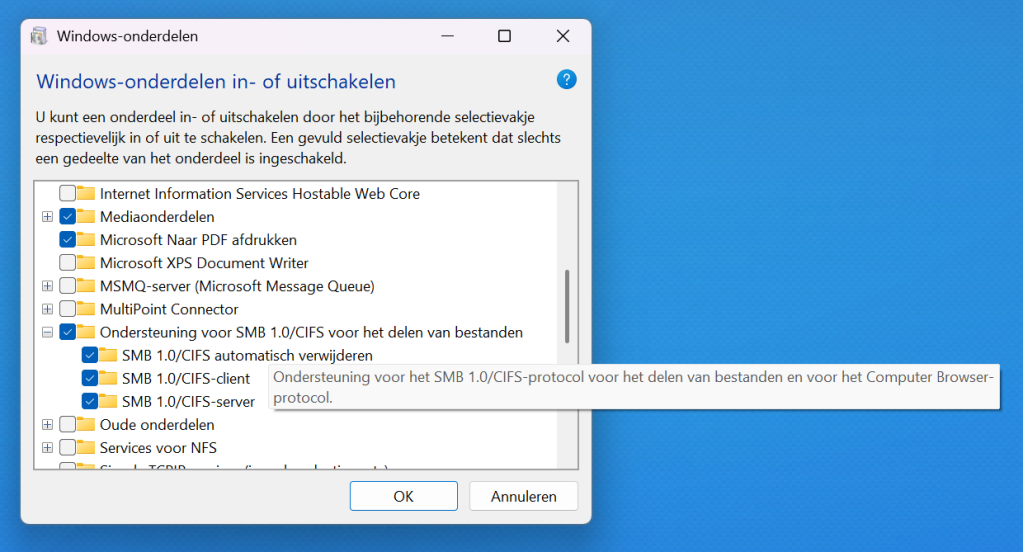

2. Tick the box “SMB 1.0/CIFS Client“, and press OK! (it will take a while to complete the action)
3. You will be prompted to reboot: make sure you have closed everything and reboot! (it will look as if you have triggered a Windows update)

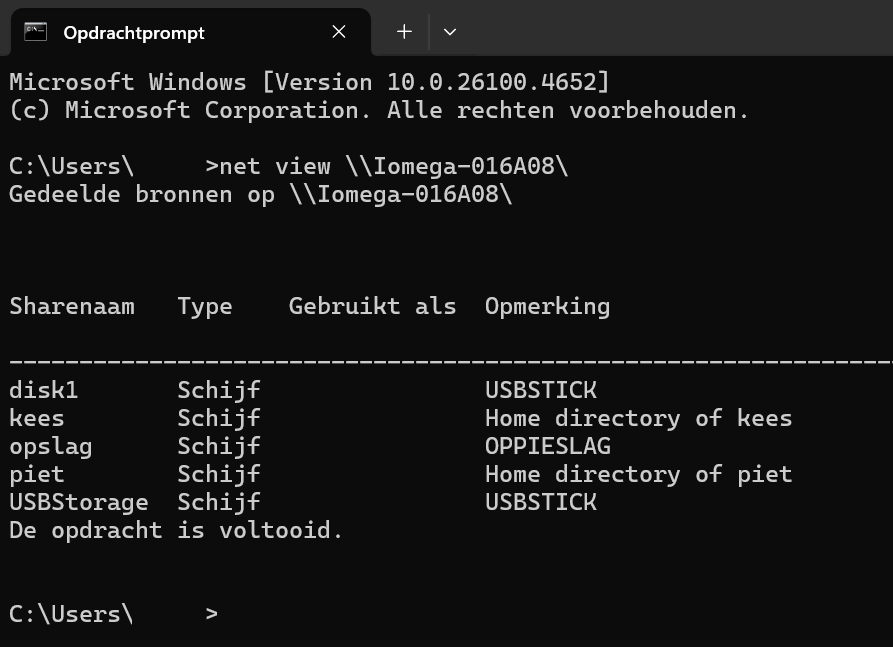

4. After the reboot: try the command net view \\YourServerIP\ and rejoice!

Source:

https://learn.microsoft.com/en-us/answers/questions/957194/windows-11-smb-client-cannot-connect-to-smb-share

Now you can also access the device in explorer using //[NAME]/

---

Network credentials #

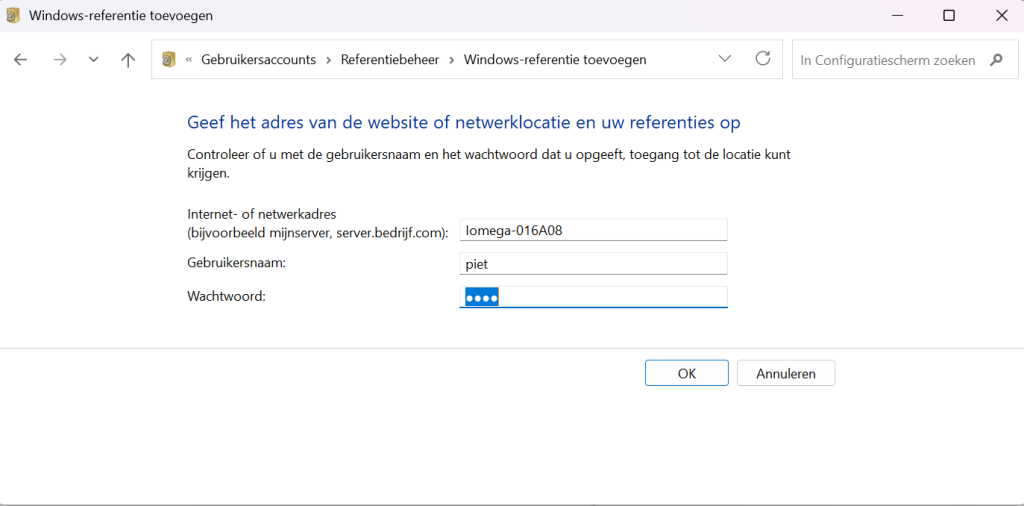

Sometimes it can help to add the network credentials into your Windows OS configuration:
