Orange Pi Zero 3 H618 – Info

Table of Contents

Hardware specification #

V1.3

V1.2

CPUAllwinner H618 Quad-core Cortex-A53 processor 1.5GHz
GPU• Mali G31 MP2
• Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory1GB/1.5GB/2GB/4GB LPDDR4

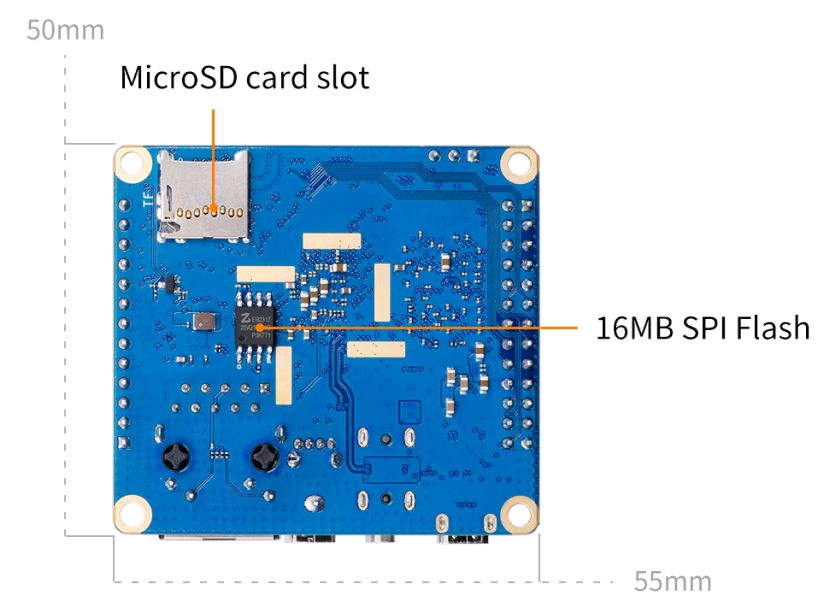

On-board storage16MB SPI Flash
Power managementAXP313A
On-board WiFi + BluetoothSupports WiFi5 and Bluetooth 5.0
Network10M/100M/1000M Ethernet interface
Audio input/output13Pin expansion port supports 2-ch output 1-ch input
Video output• Micro HDMI up to 4K@60fps
• TV-Out:13Pin supports 1-ch TV CVBS output
UART3Pin Debug UART
USBUSB 2.0 * 3(two of which lead from the expansion board)
SD card interfaceMicro SD card interface
Expansion interface• 26Pin GPIO interface
• 13Pin GPIO interface
Power input5V3A，Type-c connector
OS SupportAndroid 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04
PCB50mm*55mm

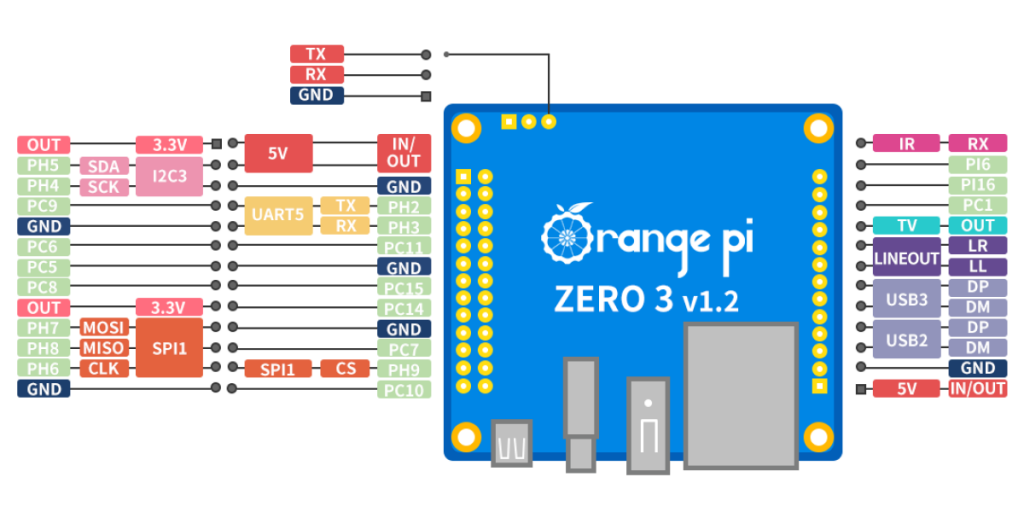

Pinout #

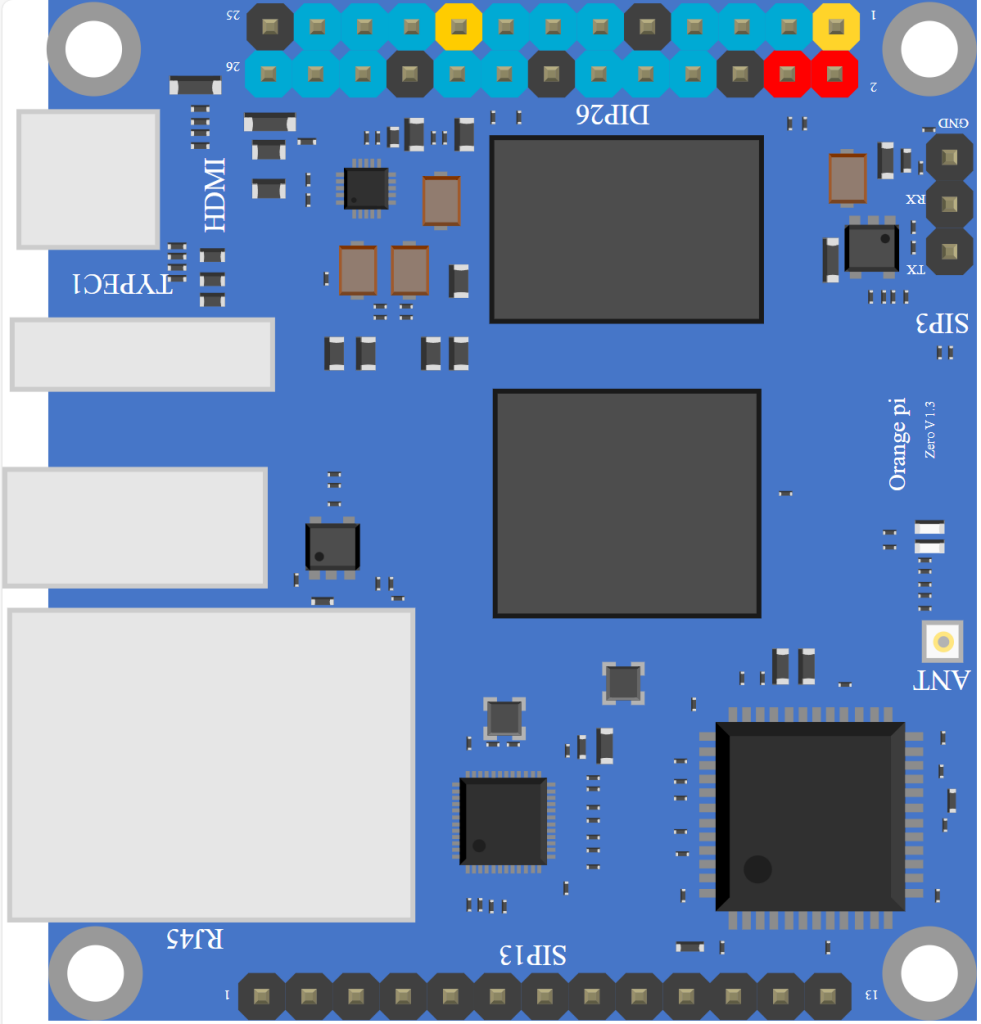

Fritzing #

Source: https://forum.fritzing.org/t/orange-pi-zero-3-library/26173/2

Icoon

Orange-PI-Zero3.fzpz #

1 bestand(en) 40.77 KB
Downloaden

3D model #

Source: http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/service-and-support/Orange-Pi-Zero-3.html

Icoon

orange pi zero 3 H618.step.zip #

1 bestand(en) 1.87 MB
Downloaden

Products #

Source #

http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero-3.html
