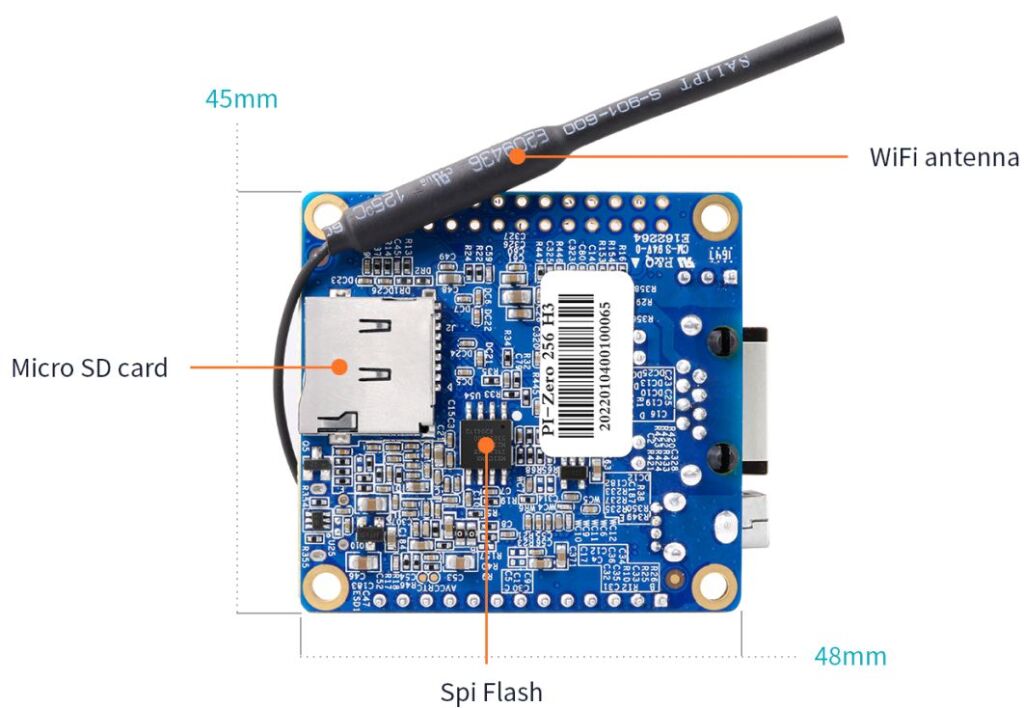

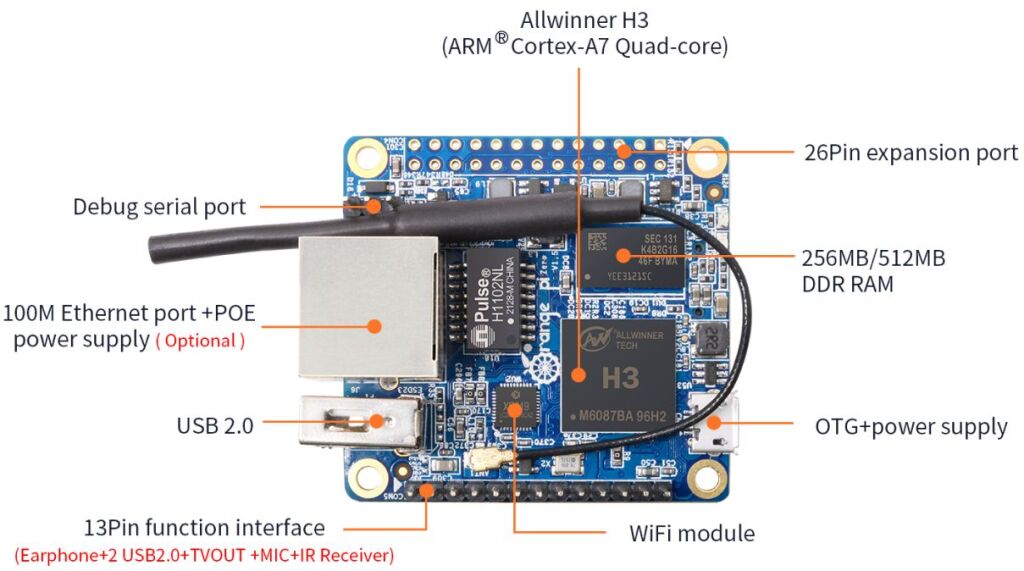

Orange Pi Zero H3 LTS – Info
Hardware specification #
| CPU | • H2 Quad-core Cortex-A7 H.265/HEVC 1080P. • H3 Quad-core Cortex-A7 H.265/HEVC 1080P |
| GPU | • Mali400MP2 GPU @600MHz • Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 256MB/512MB DDR3 SDRAM(Share with GPU)(256MB version is Standard version) |
| Onboard Storage | TF card (Max. 32GB)/ 2MB Spi Flash |
| Onboard Network | 10/100M Ethernet RJ45 POE is default off. |
| Onboard WiFi | XR819, IEEE 802.11 b/g/n |
| Audio Input | MIC(via 13 pins external board ) |
| Video Outputs | AV OUT(via 13 pins external board) |
| Power Source | USB OTG can supply power |
| USB 2.0 Ports | Only One USB 2.0 HOST, one USB 2.0 OTG |
| Low-level peripherals | • 26 Pins Header, • 13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV) |
| LED | Power led & Status led |
| Supported OS | Android, Lubuntu, Debian |

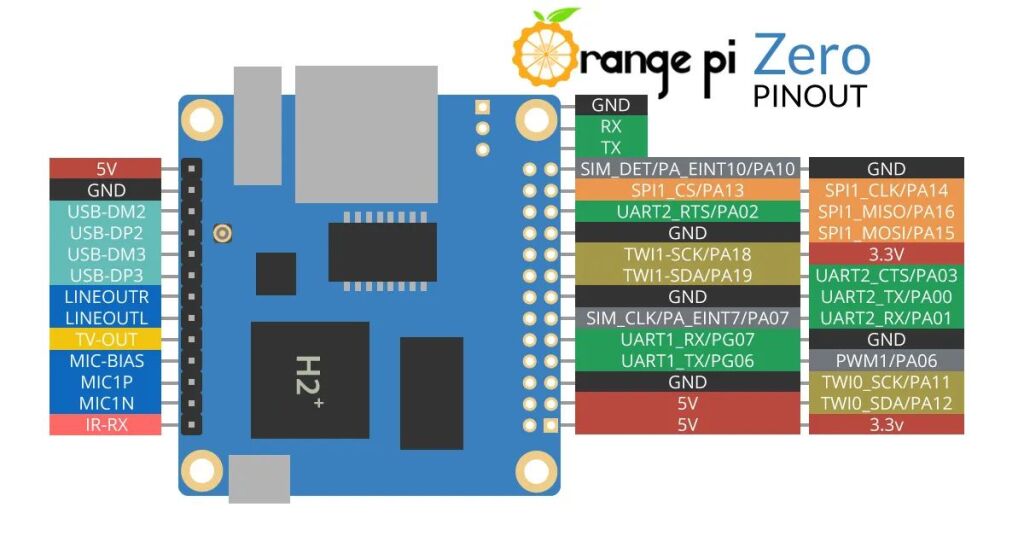

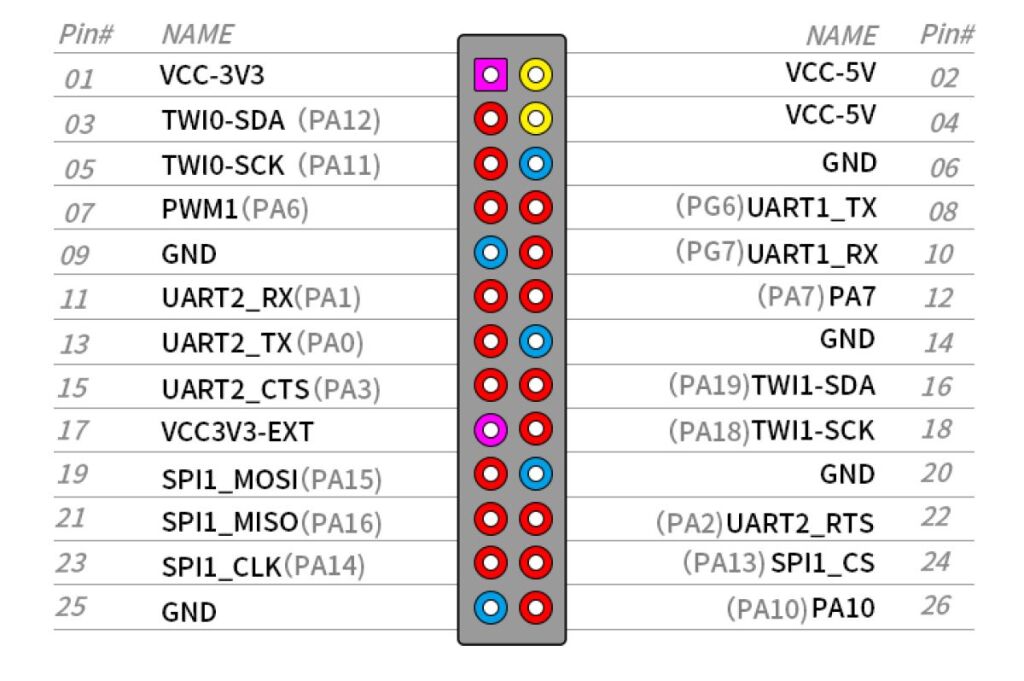

Pinout #

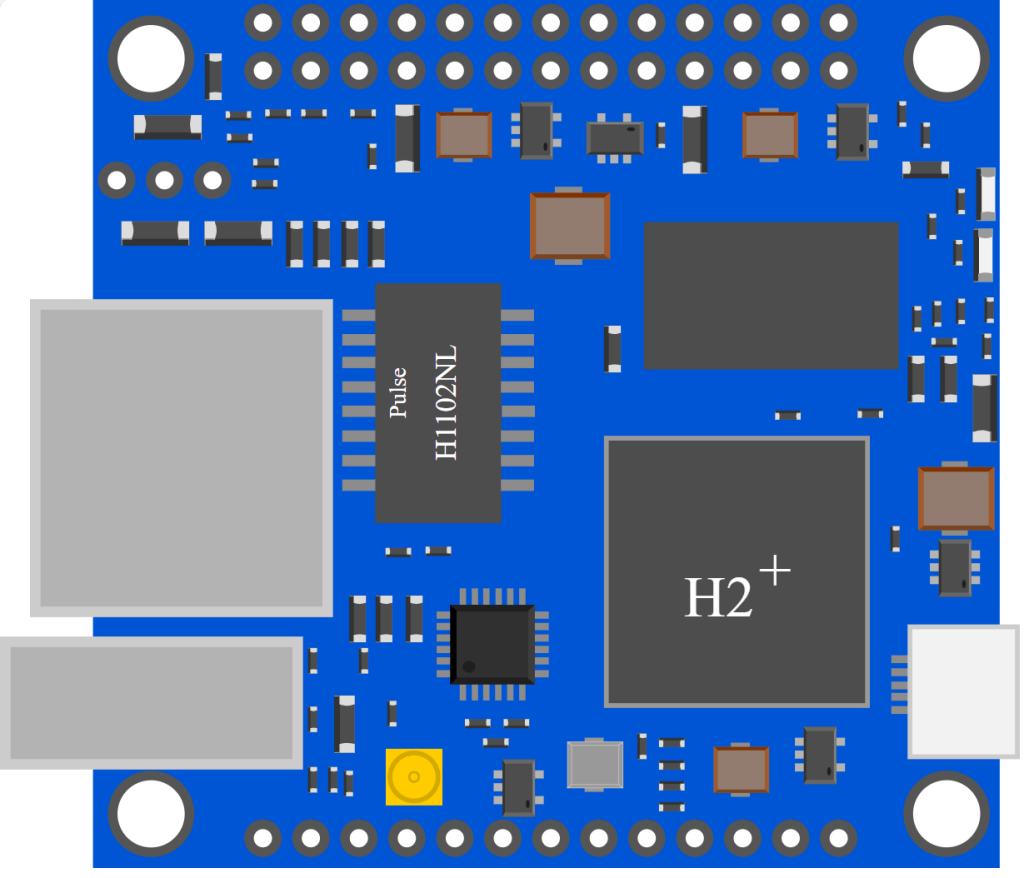

Fritzing #
Source: https://forum.fritzing.org/t/library-tools-fritzing/16435

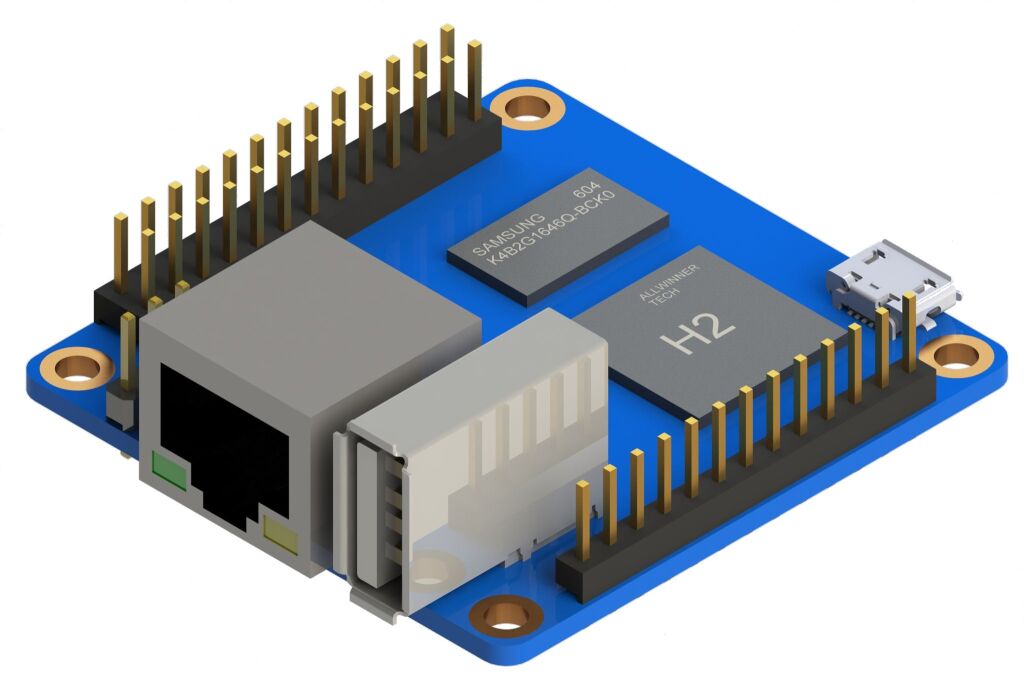

3D model #
Source: https://grabcad.com/library/orange-pi-zero-v1-1-1

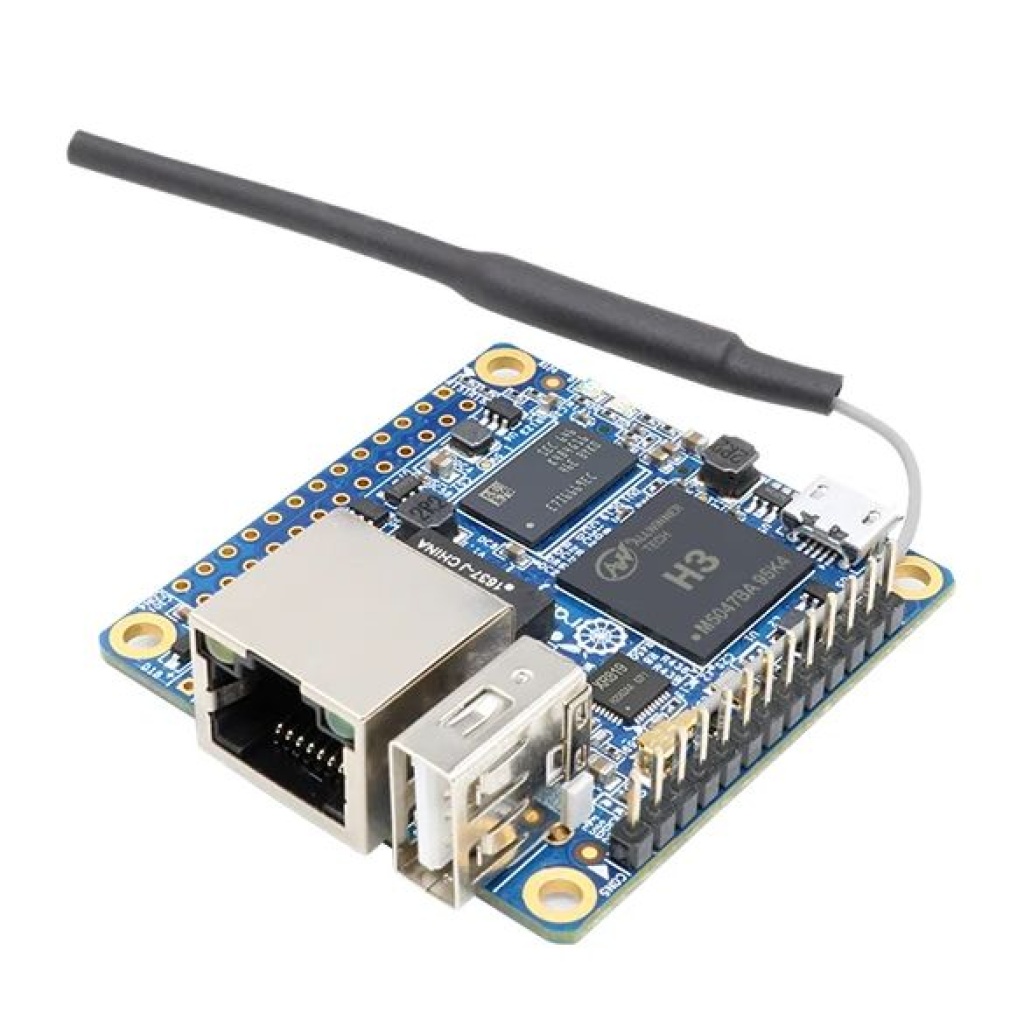

Products #
Source #
http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero.html
