Beschrijving
Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!
— GARANTIE 14 dagen na aankoop —
Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

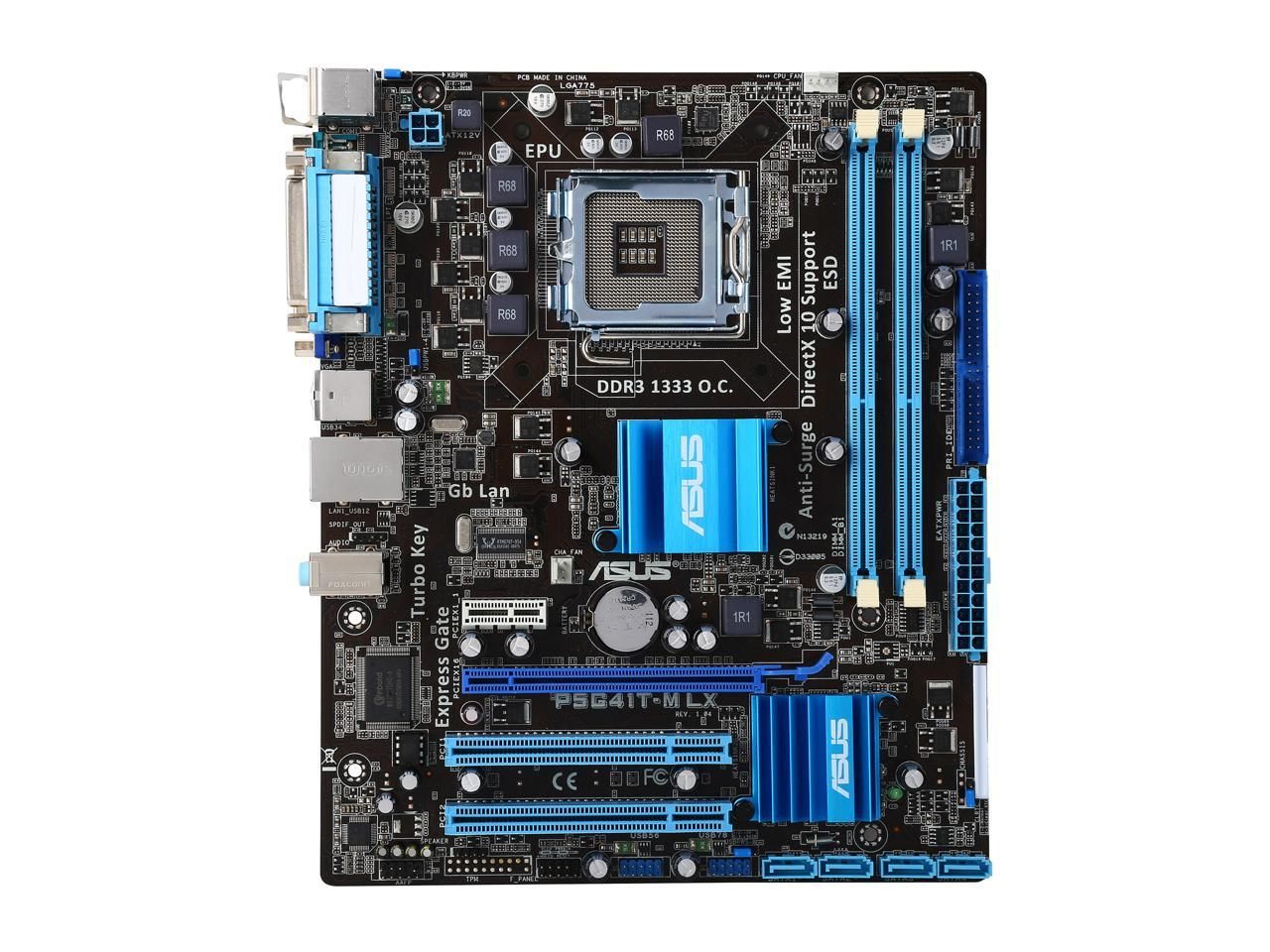

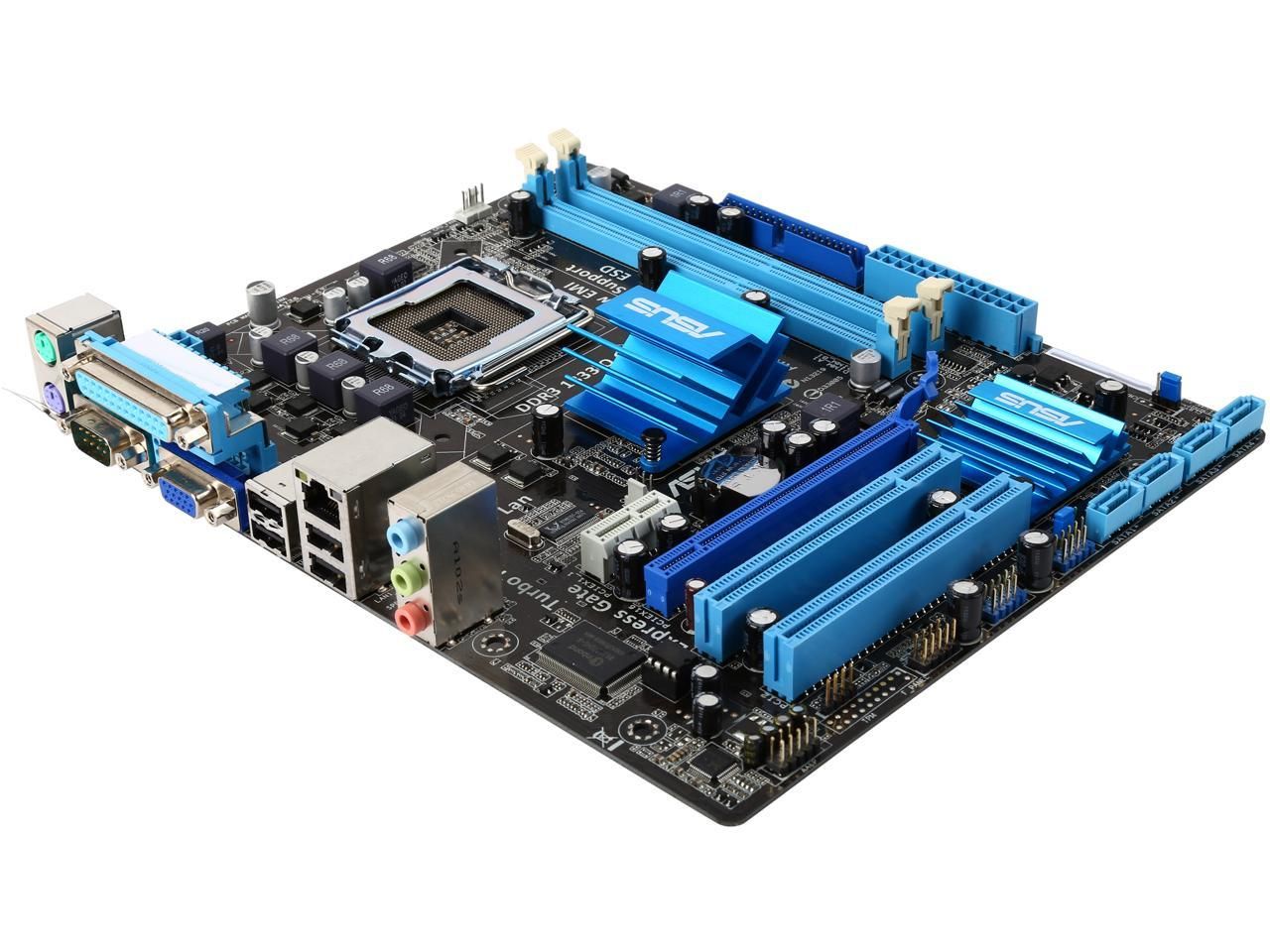

With performance, features and proven ASUS quality, the ASUS P5G41T-M LX-R motherboard is a great foundation for a PC system based on Intel Core 2 processor. It’s powered by Intel G41 Chipset and supports 65nm/45nm Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo processor with up to 1333 MHz FSB. A rich array of ASUS features are incorporated to take your experience to the next level, like Anti-Surge Protection, ASUS EPU for optimizing energy efficiency, Turbo Key for one-button overclocking, and C.P.R.(CPU Parameter Recall) for fail-safe setting recall after overclocking failure.
A Parallel (LPT) port and a Serial port are provided at the rear I/O panel for direct hookup of your legacy equipment.
Support Intel Core 2 CPU and 45nm Processor
This motherboard supports Intel LGA775 Core 2 Extreme / Core2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process. This motherboard supports Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency.
Anti-Surge Protection
This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply (PSU).
ASUS EPU
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money.
Turbo Key
ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After your easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button.
C.P.R.(CPU Parameter Recall)
The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.
Gigabit Lan
The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
Model
| Brand | ASUS |
|---|---|
| Model | P5G41T-M LX-R |
Supported CPU
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Duo / Pentium Dual-Core / Celeron |
| FSB | 1333/1066/800MHz |
Chipsets
| Chipset | Intel G41 |
|---|---|
| South Bridge | Intel ICH7 |
Onboard Video
| Onboard Video Chipset | Intel GMA X4500 |
|---|
Memory
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333(O.C.)/1066/800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
Expansion Slots
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
Storage Devices
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| SATA 3Gb/s | 4 x SATA 3Gb/s |
Onboard Audio
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
Onboard LAN
| Max LAN Speed | 1Gbps |
|---|
Rear Panel Ports
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
Internal I/O Connectors
| Onboard USB | 4 x USB 2.0 |
|---|
Physical Spec
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6″ x 7.9″ |
| Power Pin | 24 Pin |
Features
| Features | FSB 1333/1066/800MHzDual-channel DDR3 1333(OC)/1066/800
ASUS Anti-Surge ASUS Turbo Key DirectX10 support Express Gate & EPU |
|---|
Additional Information
| Date First Available | June 01, 2015 |
|---|
Extra informatie
| Gewicht | 1000 g |
|---|---|
| Afmetingen | 24 × 24 × 6 mm |
Merk
ASUS
