Beweging sensor radar 2.4GHz Human detection met Bluetooth HLK-LD2410B FMCW 24G

 5,20 incl. BTW

Availability: 15 op voorraad Artikelnummer: SEN-2023-LD2410B Categorieën: , Tags: , , , , , , , , ,
Vergelijken

Beschrijving

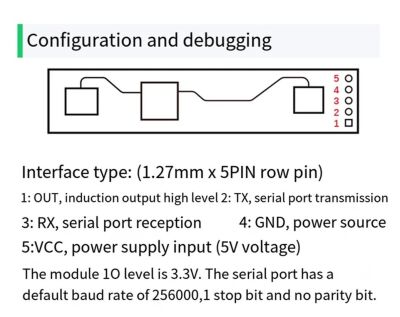

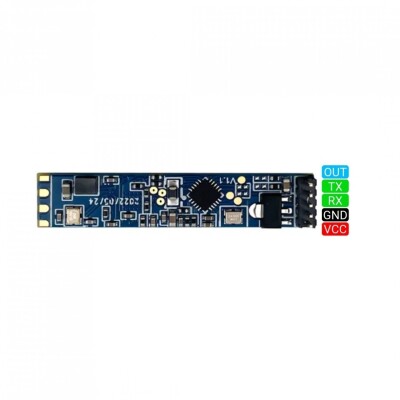

Let op: de module heeft een 1.27mm pitch pinout en is daardoor niet geschikt voor op een breadbord, gebruik daarvoor dit handige kabeltje om de module aan te sluiten op je DIY projecten:

Connector JST 5P 1.25mm pitch female 28AWG 20cm Molex PicoBlade compatible naar Dupont 2.54mm pitch female

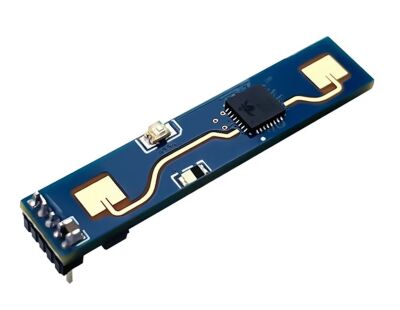

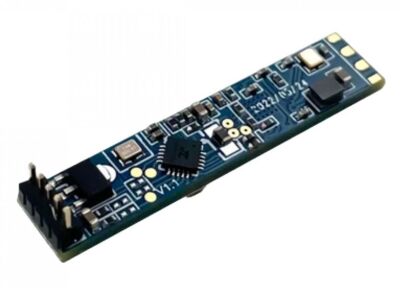

HLK-LD2410B is a high-sensitivity 24GHz human presence status sensing module developed by Hi-Link Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.

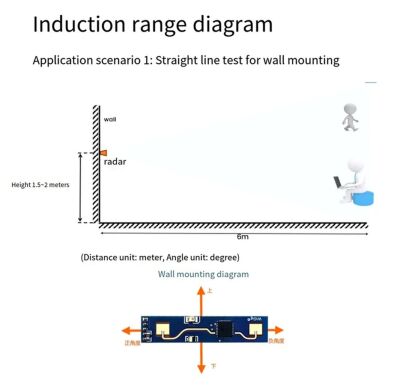

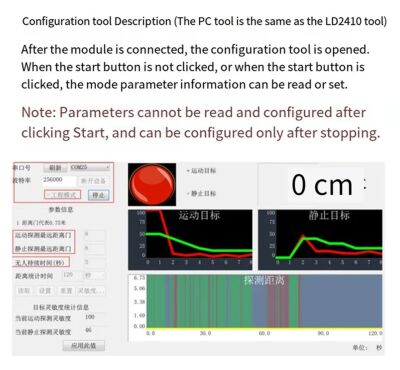

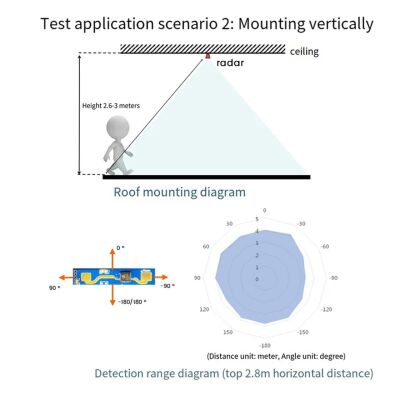

This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 5 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

Extra informatie

Gewicht 100 g
Afmetingen 5 × 4 × 1 mm
Voltage (V)

Frequentie (Hertz)

Chip

Stroomverbruik (A)

Ruis (µVrms)

Signaalsterkte ontvangen (µVp-p)

Vermogen uitgezonden (EIRP) (dBm)
