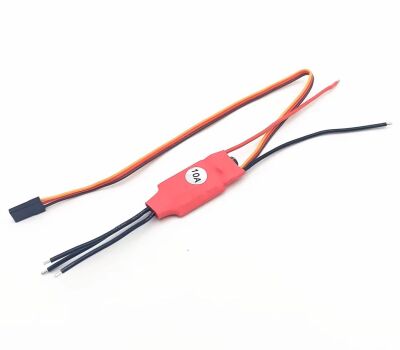

BLDC 3-fase motor ESC 2.8-13V 1S-3S 10A with BEC module SimonK Firmware

Beschrijving

Description:

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

• Highest efficiency 100% N-FET design.
• Highest accuracy with Crystal Oscillator (Temperature won’t affect the PWM operating range like other cheap ESC’s).
• No low voltage cutoff, because any cutoff in a multirotor = crash.
• No over temp cutoff, because any cutoff in a multirotor = crash.
• Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
• 16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
• Super simple, foolproof operation! Nothing to program other than the throttle range.

ESC Specs:

• Max cont. current: 10A
• Peak current: 20A (10s)
• Voltage: 2-3S lixx,
• BEC: 5V/1A
• Size: 38mmx15mmx9mm
