CAN Bus Classic 2.0B communication module 3.3V SPI MCP2515 16MHz SIT65HVD230DR TVS/ESD protection (DomoticX eXperience EC201 V1)
€ 8,47 incl. BTW
Availability: 28 op voorraad
Artikelnummer: MOD-3257-EC201
Categorieën: CAN Bus, CAN bus module, Communicatie module, DomoticX eXperience series
Tags: 16MHz, 3.3V, CAN, Classic 2.0B, Controller, DomoticX eXperience, ECF01, MCP2515, module, SIT65HVD230DR, SPI, TVS/ESD protection
- Beschrijving
- Extra informatie
- Downloads
- Q & A
Beschrijving
This module is shipped with HEADER PINS

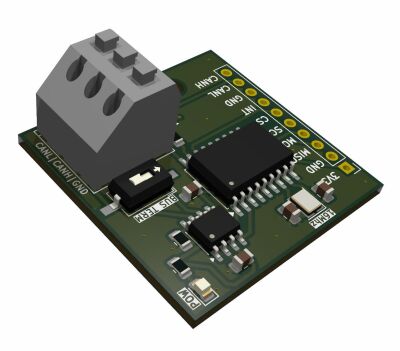

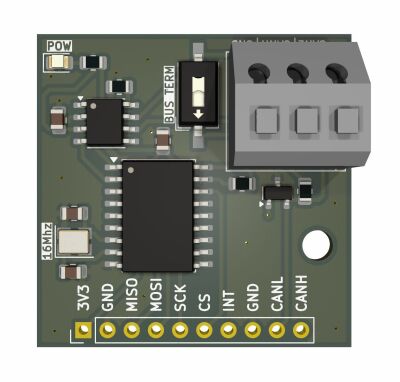

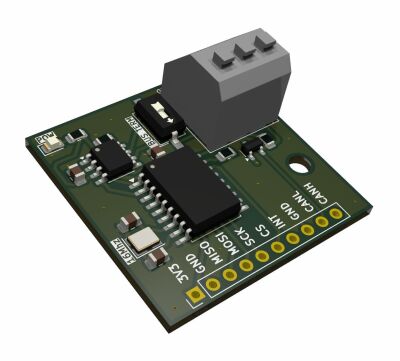

This is a high quality CAN bus module with a CAN MCP2515 controller chip @ 16Mhz, and a SIT65HVD230DR transciever chip, the CAN lines are TVS/ESD protected.
On this module is also a power indication LED and a switch for bus termination resistor (120 Ohm), the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!
Specs:
CAN Interface: CAN classic 2.0B
CAN Controller: MCP2515 @ 16Mhz (Max. Bitrate: 1 Mbps)
CAN Transciever: SIT65HVD230DR (Max. Bitrate: 1 Mbps)
Voltage: 3.3VDC
Extras:
- Power led indicator
- BUS termination switch
- TVS/ESD protection
Dimensions (LxBxH):
33mm x 33mm x 16mm
Extra informatie
Gewicht | 75 g |
---|---|
Afmetingen | 4 × 3 × 1,5 mm |
