CAN Bus Classic 2.0B transciever module 3.3V UART SIT65HVD230DR TVS/ESD protection (DomoticX eXperience ECT01 V1)
€ 4,60 incl. BTW
Availability: 28 op voorraad
Artikelnummer: MOD-3262-ECT01
Categorieën: CAN Bus, CAN bus module, Communicatie module, DomoticX eXperience series
Tags: 3.3V, bus, CAN, Classic 2.0B, DomoticX, ECT01, eXperience, module, protection, SIT65HVD230DR, transciever, TVS/ESD, UART, v1
- Beschrijving
- Extra informatie
- Downloads
- Q & A
Beschrijving
This module is shipped with HEADER PINS

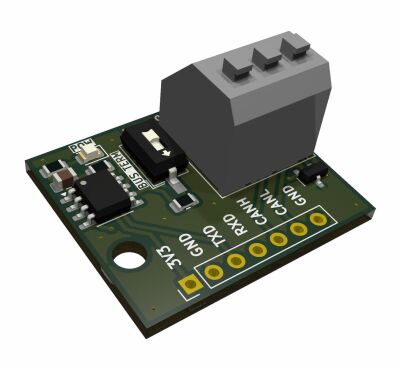

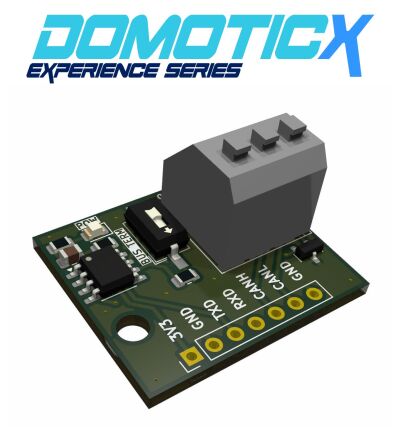

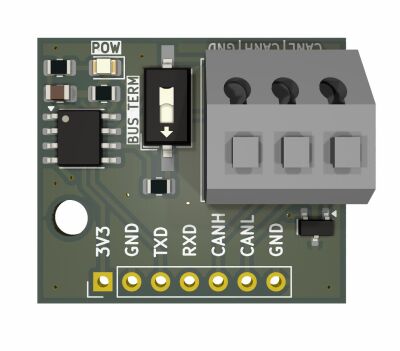

This is a high quality CAN bus transciever module with a SIT65HVD230DR transciever chip, the CAN lines are TVS/ESD protected.
On this module is also a power indication LED and a switch for bus termination resistor (120 Ohm), the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!
Specs:
CAN Interface: CAN classic 2.0B
CAN Transciever: SIT65HVD230DR (Max. Bitrate: 1 Mbps)
Voltage: 3.3VDC
Extras:
- Power led indicator
- BUS termination switch
- TVS/ESD protection
Dimensions (LxBxH):
28mm x 24mm x 16mm
Extra informatie
Gewicht | 50 g |
---|---|
Afmetingen | 4 × 3 × 1,5 mm |
