CAN Bus FD/Classic 2.0B communication module 3.3V SPI MCP2518 40MHz ISO1042 Isolated TVS/ESD protection (DomoticX eXperience ECF01 V1)

Beschrijving

This module is shipped with HEADER PINS

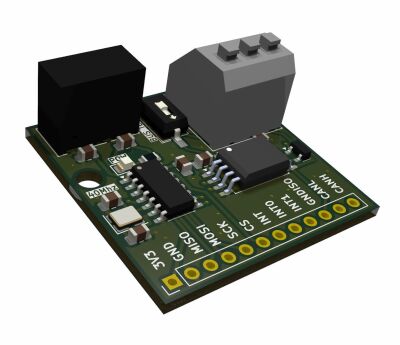

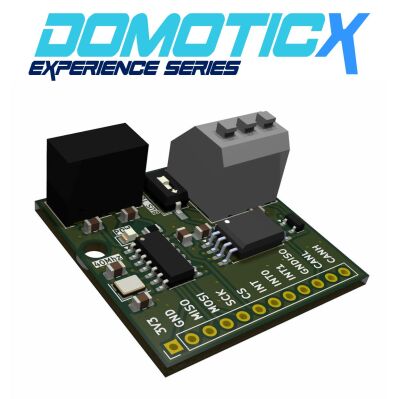

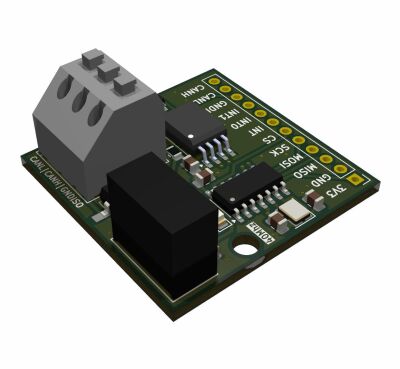

This is a high quality CAN bus module with a CAN MCP2518 controller chip @ 40Mhz, and a ISO1042 isolated transciever chip, the ISO1042 is powered with a DC 3.3V-DC 5V isolated buck converter, the CAN lines are TVS/ESD protected.

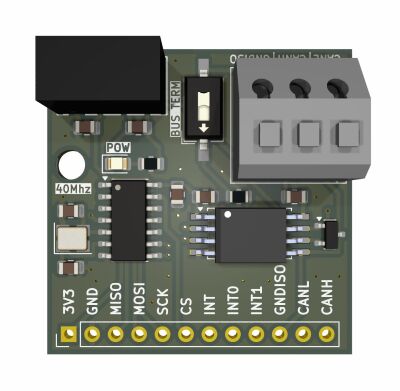

On this module is also a power indication LED and a switch for bus termination resistor (120 Ohm), the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!

Specs:

CAN Interface: CAN FD and Classic 2.0B

CAN Controller: MCP2518 @ 40Mhz (Max. Bitrate: 8 Mbps)

CAN Transciever: ISO1042 isolated CAN (Supports classic CAN up to 1 Mbps) and FD (Flexible Data Rate) up to 5 Mbps

Voltage: 3.3VDC

Extras:

• Power led indicator
• BUS termination switch
• Isolated CAN bus transmission powered by DC 3.3V-DC 5V isolated buck converter
• TVS/ESD protection

Dimensions (LxBxH)

33mm x33mm x 16mm
