CAN Bus FD/Classic 2.0B transciever module 3.3V/5.0V UART ISO1042 Isolated TVS/ESD protection (DomoticX eXperience ECT02 V1)

Beschrijving

This module is shipped with HEADER PINS

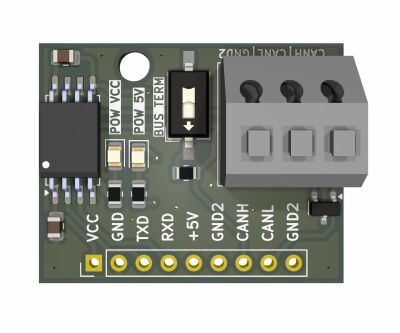

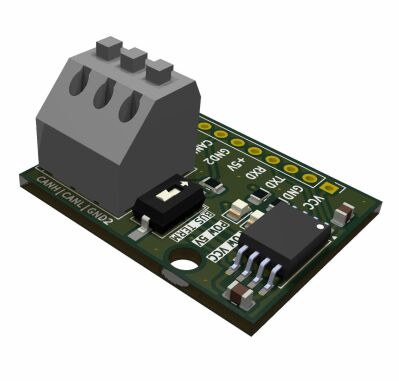

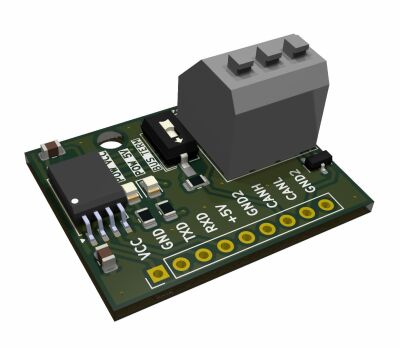

This is a high quality CAN bus transciever module with a ISO1042 isolated transciever chip, the CAN lines are TVS/ESD protected.

On this module are also a power indication LED’s and a switch for bus termination resistor (120 Ohm), the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!

Specs:

CAN Interface: CAN FD and Classic 2.0B

CAN Transciever: ISO1042 isolated CAN (Supports classic CAN up to 1 Mbps) and FD (Flexible Data Rate) up to 5 Mbps

Voltage: 3.3VDC
Voltage CAN secundary side: 5.0VDC

Extras:

• Power led indicator 3.3V
• Power led indicator 5.0V
• BUS termination switch
• TVS/ESD protection

Dimensions (LxBxH)

31mm x24mm x 16mm
