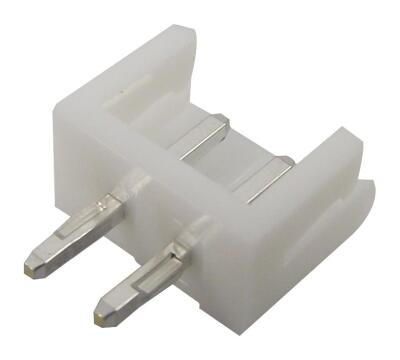

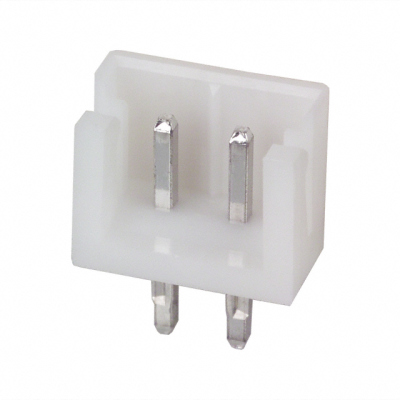

Connector JST-EH 2P 2.54mm pitch male THT verticaal B2B-EH-A C160262

 0,13 incl. BTW

Availability: 250 op voorraad Artikelnummer: CON-2422-B2BEHA Categorieën: , Tags: , , , , , , , , ,
Vergelijken

Beschrijving

Bekijk het specificatieblad voor meer informatie.

Product Overview

The B2B-EH-A(LF)(SN) is a 1-row crimp style Header Connector. The shrouded headers are interchangeable with those of the HR crimp style and insulation displacement connectors. With 8.1mm in height after mounting and 3.8mm in width. It is designed to meet the demand for the high-density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.

  • Top Entry Type
  • Compact and Slim
  • Highly Reliable Contact
  • Polarizing Guides
  • Easy and Effective Crimping
  • 3.0AAC/DC Current Rating
  • 250VAC/DC Voltage
  • -25 to +85°C Temperature Range
  • 1000MΩ Insulation Resistance
  • 800VAC/Minute Withstanding Voltage

Extra informatie

Gewicht 2 g
Afmetingen 0,4 × 0,4 × 0,5 mm
