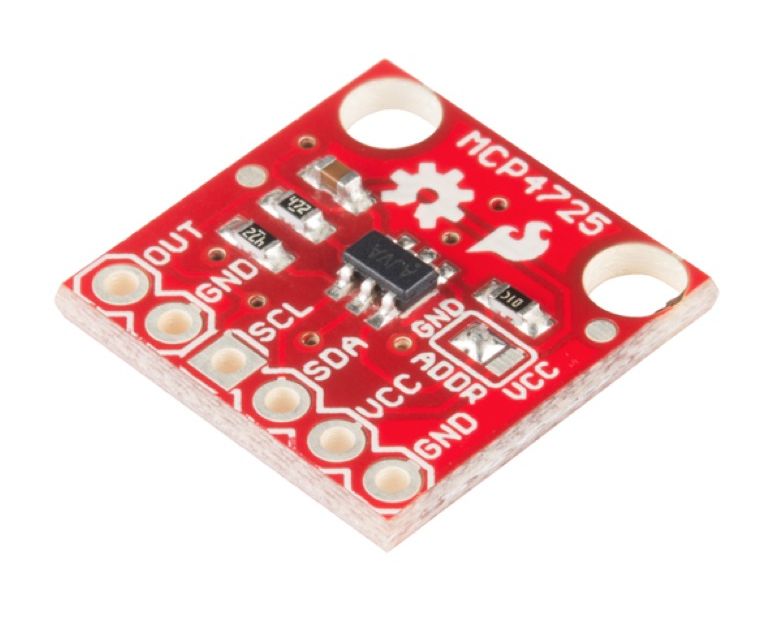

Digitaal naar Analoog Converter module / DAC 12-bit 1 kanaal I2C MCP4725

 3,41 incl. BTW

Availability: 22 op voorraad Artikelnummer: MOD-2020-MCP47 Categorieën: , Tags: , , , , , , , ,


Wordt geleverd met headerpins

Informatie (ENG):
You’ve always wanted to output analog voltages from a microcontroller, the MCP4725 is the DAC that will let you do it! The CJMCU-MCP4725 is an I2C controlled Digital-to-Analog converter (DAC).  Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

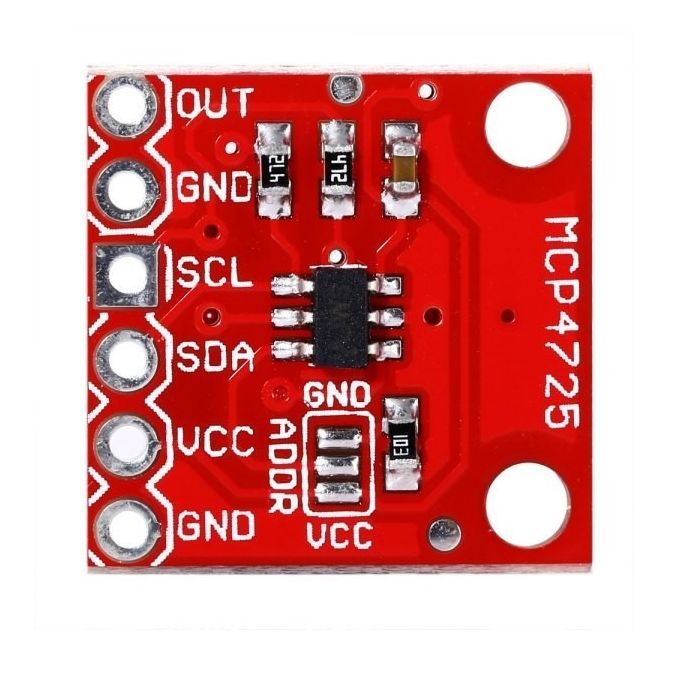

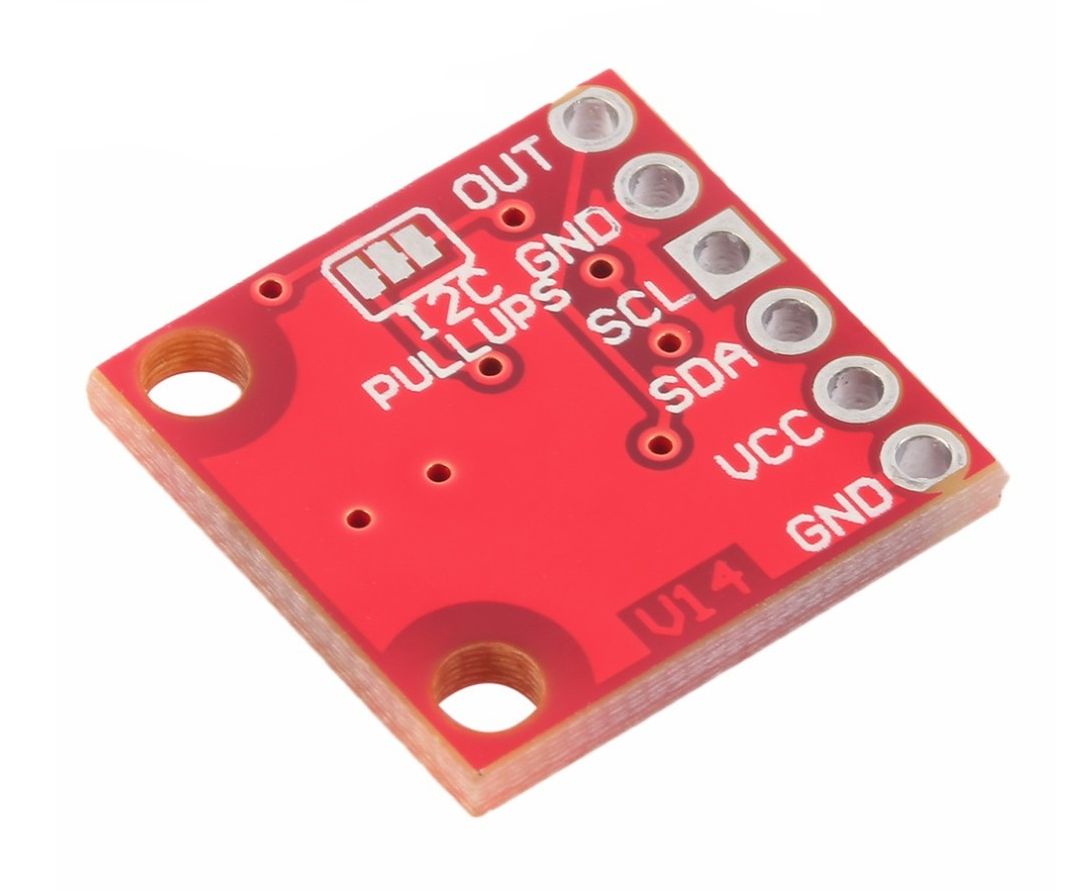

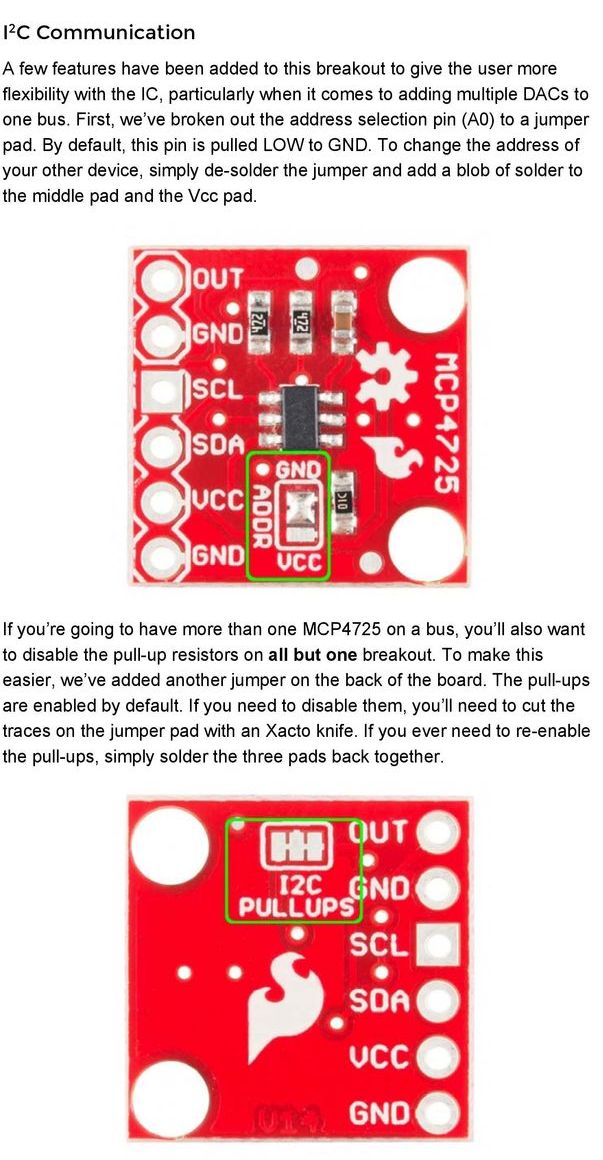

This version of the CJMCU-MCP4725 Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks. This board breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I2C pinout. Additionally, if you are looking to have more than one MCP4725 on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.
12-bit resolution
I2C Interface (Standard, Fast, and High-Speed supported)
Small package
2.7V to 5.5V supply
Internal EEPROM to store settings

Extra informatie

Gewicht 1,5 g
Afmetingen 1,5 × 1,5 × 0,5 mm
