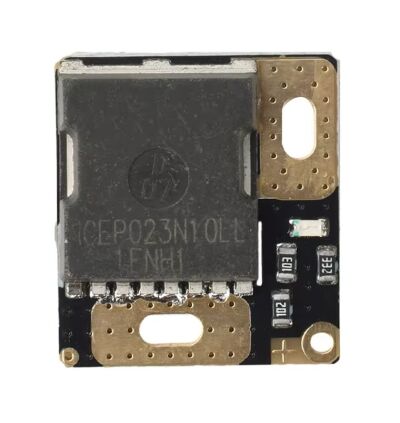

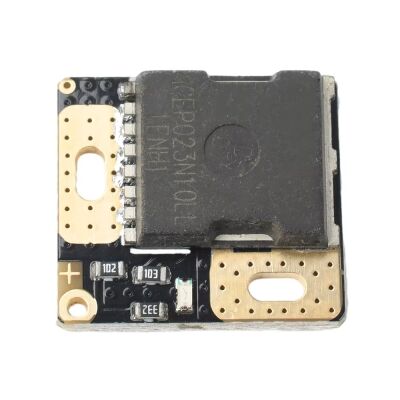

FET N-Channel Super Trench II Power Mosfet 100V 200A (300A piek) 400W module NCEP020N10LL

 1,31 incl. BTW

Availability: 40 op voorraad Artikelnummer: MOD-2185-20N10L Categorieën: , Tags: , , , , , , , ,
Vergelijken

Beschrijving

Bekijk de datasheet voor meer informatie

Features:
1. Support 5 to 18V DC voltage input, suitable for a variety of power supply environment, enhance versatility and flexibility
2. adopts high-quality high-power MOS tubes to withstand high-current loads, suitable for driving motors, LED light bars and other equipment.
3. Integration of PWM signal input, to realize the precise adjustment of output current, suitable for lighting gradient and motor speed control.
4. Small size of the module, easy to install, does not occupy space, very suitable for compact equipment and DIY projects.
5. Wide range of applications, ideal for electronic enthusiasts and professional engineers to meet diversified needs.

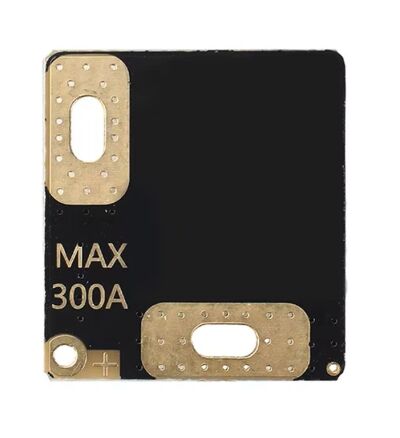

300A: continuous 10-200A (instantaneous 300A) input withstand voltage 100V

Extra informatie

Gewicht 7 g

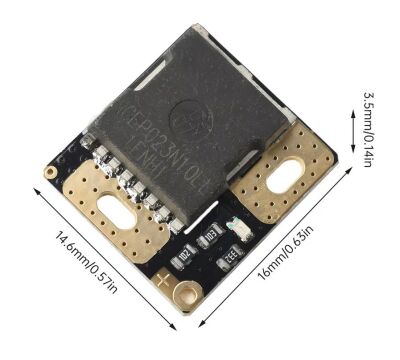

Afmetingen 2 × 3 × 0,5 mm
Wattage (Watt)

Voltagebereik (V)

Type

Toepassing

Stroomdoorvoer (A)

Package type
