Fotodiode sensor rechthoek helder transparant SGPD638C9
€ 0,19 incl. BTW
Availability: 190 op voorraad
Artikelnummer: SEN-0041-PD63
Categorie: Licht / Kleur sensor
Tags: Fotodiode, helder, rechthoek, Sensor, SGPD638C9, transparant
- Beschrijving
- Extra informatie
- Downloads
- Q & A
Beschrijving

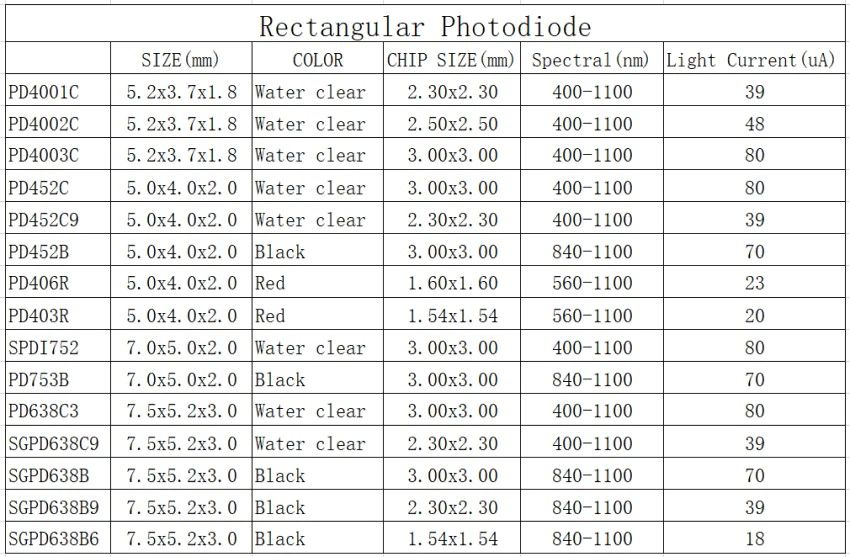

3.0×5.2mm Rectangular Photodiode: SGPD638C9
Chip size 2.30mm x 2.30mm , Active area 1.98mm x 1.98 mm
Range of Spectral Bandwidth: 400—1100nm
Wavelength of Peak Sensitivity: 940 nm
Open-Circuit Voltage: 0.32 V
Reverse Light Current: 39 uA
Dark Current: <10 nA
Reverse Breakdown Voltage: >30 V
Total Capacitance: 22 pF
Rise/Fall Time: 45/45 nS
SGPD638C9: Chip size 2.30mm x 2.30mm , Reverse Light Current 39 uA
Difference between Photodiode and Phototransistor
A. Abbreviation: Photodiode—PD / Phototransistor—PT
B. PIN Name: Photodiode—Anode and Cathode / Phototransistor—Emitter and Collector
C. Chip Structure: Photodiode—PN / Phototransistor—NPN(or PNP)
D. Response speed:Photodiode—fast /Phototransistor—slow
E. Amplification characteristics: Photodiode—No / Phototransistor—Yes
F. Output Linearity: Photodiode—Good / Phototransistor—Bad
Extra informatie
Gewicht | 1 g |
---|---|
Afmetingen | 1 × 0,5 × 1 mm |
SGPD638C9 datasheet (Shuguan)
1 bestand(en) 309.45 KB
