Grafische kaart AMD/ATI RV515 Radeon EAX1300 256MB DDR2 PCI-E 16x 1.1 DVI VGA S-VIDEO Asus (2e kans)

 19,36 incl. BTW

Availability: 1 op voorraad Artikelnummer: 2K-VID-0157-EAX1300 Categorieën: , Tags: , , , , , , , , , , , , ,
Vergelijken
ATI

Beschrijving


Dit is een 2e KANS Retro artikel/product, en is getest op werking/functionaliteit!


— GARANTIE 14 dagen na aankoop —


Bekijk het specificatieblad voor meer informatie!

Ps. De getoonde foto’s kunnen kwa bestickering en/of kleuren afwijken van het origineel.

Deze kaart is/heeft:
– Schoongemaakt
– Getest op Windows 7

ASUS has released an updated version of the ASUS EAX1300PRO Silent video adapter. Its main difference from other video card modifications is that in this case it uses passive cooling ReverseCool Technology, which is made in a very original way.

The EAX1300PRO Silent graphics card is based on the ATI Radeon X1300PRO graphics processor and supports Crossfire technology. Like all the latest graphics cards, it has a PCI-Express 16x interface and does not require additional power. ASUS EAX1300PRO is equipped with one VGA and one DVI-I output for connecting a monitor, as well as a TV-OUT output. The graphics processor is manufactured using 90 nm manufacturing technology. The clock frequency of the RV515 graphics processor is 601 MHz, and the clock frequency of the video memory is 401 MHz (800 MHz DDR). The board is equipped with 256 MB of GDDR2 video memory with a 128-bit data transfer bus. The graphics processor has four pixel pipelines and six vertex units.

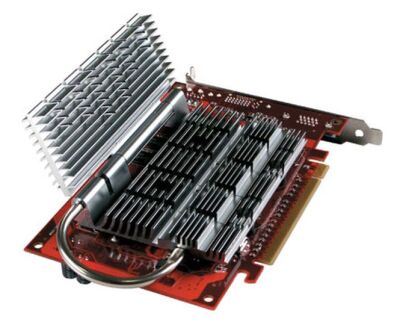

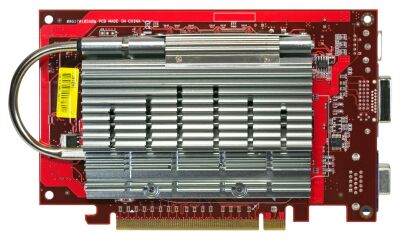

The unique cooling system is a massive radiator mounted directly above the graphics processor and memory chips. However, it is worth noting that the radiator is only tightly adjacent to the graphics chip itself. For more efficient heat dissipation, a second radiator is provided, connected to the first via a heat pipe. This radiator is mounted on the heat pipe, as a result of which it is mobile and can be turned at an angle of 90° to the main radiator, which is located directly above the chip. Thus, the second radiator can be installed perpendicular to the video card, and its edge will be above the processor cooler, which will provide even more powerful cooling. This solution makes the boards absolutely silent and does not allow the chips to heat up to critical temperatures.

The video card comes with a DVI/D-Sub 15-pin adapter, an S-Video/RCA adapter, a CD with drivers and utilities, a CD with a user manual in different languages, a user manual, and a CD with the King-Kong game.

Extra informatie

Gewicht 1000 g
Afmetingen 20 × 10 × 2 mm
Geheugen grootte (byte)

Geheugentype

Geheugenfrequentie (MHz)

Geheugen bandbreedte (GBps)

Geheugen bus (bit)

Fabrikant

Lengte (mm)

Koelingstype (Actief/Passief)

Chip

Fill Rate (Triangles/s)

Grafische resolutie

OS ondersteuning

Connector (VGA)

Fabrikant onderdeel nr.

Texture rate (Texels/s)

Connector (S-video)

Transistor aantal

Multi GPU support

Connector (DVI)

Chipgrootte

Pixel Rate (Pixel/s)

Connector (HDMI)

Chip Architectuur

Connector externe voeding

API ondersteuning (DirectX)

Pixel Shader versie

Vormfactor

API ondersteuning (OpenGL)

Pixel shader aantal

API ondersteuning (OpenCL)

API ondersteuning (Vulkan)

Interface

Vertex Shader versie

Generatie

Vertex Shader aantal

TMU (Texture mapping unit) aantal

ROP (Render output unit) aantal

GPU Clock (MHz)

Bouwjaar

Lithografie (nm)

Slotbreedte

Merk

ATI

ATI
