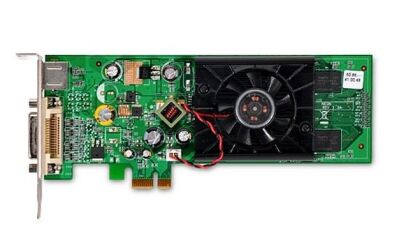

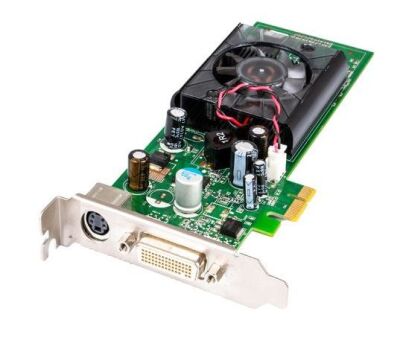

Grafische kaart nVidia G86 GeForce 8400GS 256MB DDR2 PCI-E 1x 1.1 DMS-59 S-VIDEO Nvidia (2e kans)

 18,76 incl. BTW

Availability: 1 op voorraad Artikelnummer: 2K-VID-0164-8400GS Categorieën: , Tags: , , , , , , , ,
Vergelijken

Beschrijving


Dit is een 2e KANS Retro artikel/product, en is getest op werking/functionaliteit!


— GARANTIE 14 dagen na aankoop —


Bekijk het specificatieblad voor meer informatie!

Ps. De getoonde foto’s kunnen kwa bestickering en/of kleuren afwijken van het origineel.

Deze kaart is/heeft:
– Schoongemaakt

– Getest op Windows 10

The GeForce 8400 GS was a graphics card by NVIDIA, launched on April 17th, 2007. Built on the 80 nm process, and based on the G86S graphics processor, in its G86-213-A2 variant, the card supports DirectX 11.1. Even though it supports DirectX 11, the feature level is only 10_0, which can be problematic with many DirectX 11 & DirectX 12 titles. The G86S graphics processor is an average sized chip with a die area of 127 mm² and 210 million transistors. It features 16 shading units, 8 texture mapping units, and 4 ROPs. NVIDIA has paired 256 MB DDR2 memory with the GeForce 8400 GS, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 459 MHz, memory is running at 400 MHz.
Being a single-slot card, the NVIDIA GeForce 8400 GS does not require any additional power connector, its power draw is rated at 40 W maximum. Display outputs include: 1x DVI, 1x VGA, 1x S-Video. GeForce 8400 GS is connected to the rest of the system using a PCI-Express 1.0 x16 interface. The card measures 170 mm in length, and features a single-slot cooling solution.

Extra informatie

Gewicht 1000 g
Afmetingen 20 × 10 × 2 mm
Geheugen grootte (byte)

Geheugentype

Geheugenfrequentie (MHz)

Geheugen bandbreedte (GBps)

Geheugen bus (bit)

Fabrikant

Koelingstype (Actief/Passief)

Chip

Fill Rate (Triangles/s)

Grafische resolutie

OS ondersteuning

Connector (VGA)

Fabrikant onderdeel nr.

Texture rate (Texels/s)

Transistor aantal

Connector (DVI)

Chipgrootte

Pixel Rate (Pixel/s)

Connector (HDMI)

Chip Architectuur

API ondersteuning (DirectX)

Pixel Shader versie

Vormfactor

API ondersteuning (OpenGL)

Pixel shader aantal

API ondersteuning (OpenCL)

API ondersteuning (Vulkan)

Interface

Vertex Shader versie

Generatie

TMU (Texture mapping unit) aantal

ROP (Render output unit) aantal

GPU Clock (MHz)

Bouwjaar

Lithografie (nm)

Slotbreedte

Connector (DMS-59)

1

Connector (S-video)

Merk

nVidia
