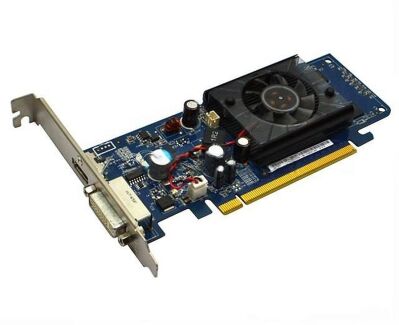

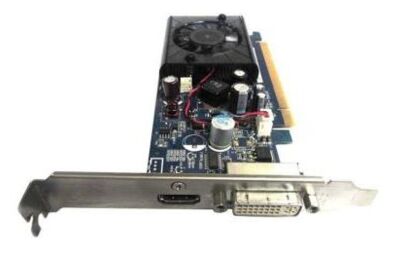

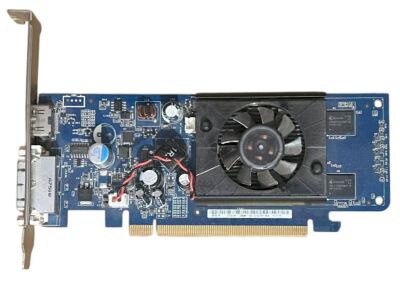

Grafische kaart nVidia G98 GeForce 8400 256MB DDR2 PCI-E 16x 2.0 VGA DVI HDMI Asus (2e kans)
€ 18,76 incl. BTW
- Beschrijving
- Extra informatie
- Merk
- Downloads
- Q & A
Beschrijving
Dit is een 2e KANS Retro artikel/product, en is getest op werking/functionaliteit! — GARANTIE 14 dagen na aankoop — Bekijk het specificatieblad voor meer informatie! |
Ps. De getoonde foto’s kunnen kwa bestickering en/of kleuren afwijken van het origineel.
Deze kaart is/heeft:
– Schoongemaakt
– Getest op Windows 10

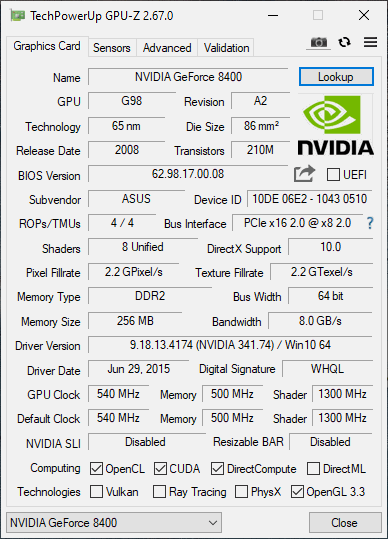

The GeForce 8400 was a graphics card by NVIDIA, launched on December 4th, 2007. Built on the 65 nm process, and based on the G98S graphics processor, the card supports DirectX 11.1. Even though it supports DirectX 11, the feature level is only 10_0, which can be problematic with many DirectX 11 & DirectX 12 titles. The G98S graphics processor is a relatively small chip with a die area of only 86 mm² and 210 million transistors. It features 8 shading units, 4 texture mapping units, and 4 ROPs. NVIDIA has paired 256 MB DDR2 memory with the GeForce 8400, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 540 MHz, memory is running at 500 MHz.
Being a single-slot card, the NVIDIA GeForce 8400 does not require any additional power connector, its power draw is rated at 25 W maximum. Display outputs include: 1x DVI, 1x VGA, 1x S-Video. GeForce 8400 is connected to the rest of the system using a PCI-Express 2.0 x16 interface.
Extra informatie
Gewicht | 1000 g |
---|---|
Afmetingen | 20 × 10 × 2 mm |
Geheugen grootte (byte) | |
Geheugentype | |
Geheugenfrequentie (MHz) | |
Geheugen bandbreedte (GBps) | |
Geheugen bus (bit) | |
Fabrikant | |
Koelingstype (Actief/Passief) | |
Chip | |
Fill Rate (Triangles/s) | |
Grafische resolutie | |
OS ondersteuning | |
Connector (VGA) | |
Fabrikant onderdeel nr. | |
Texture rate (Texels/s) | |
Transistor aantal | |
Connector (DVI) | |
Chipgrootte | |
Pixel Rate (Pixel/s) | |
Connector (HDMI) | |
Chip Architectuur | |
API ondersteuning (DirectX) | |
Pixel Shader versie | |
Vormfactor | |
API ondersteuning (OpenGL) | |
Pixel shader aantal | |
API ondersteuning (OpenCL) | |
API ondersteuning (Vulkan) | |
Interface | |
Vertex Shader versie | |
Generatie | |
TMU (Texture mapping unit) aantal | |
ROP (Render output unit) aantal | |
GPU Clock (MHz) | |
Bouwjaar | |
Lithografie (nm) | |
Slotbreedte |
