Grafische kaart nVidia G98 GeForce 9300GE 256MB DDR2 PCI-E 16x 2.0 VGA DVI HDMI DUAL-LOW-PROFILE PCPartner (2e kans)
€ 19,97 incl. BTW
- Beschrijving
- Extra informatie
- Merk
- Downloads
- Q & A
Beschrijving

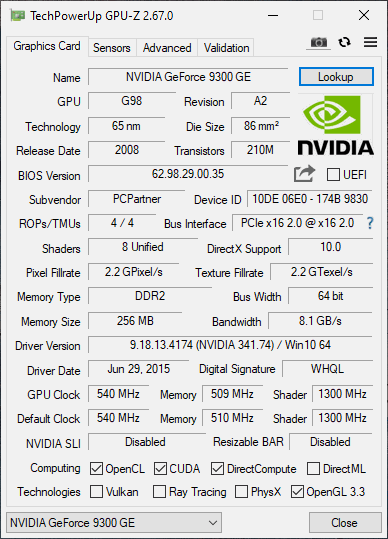

Dit is een 2e KANS Retro artikel/product, en is getest op werking/functionaliteit! — GARANTIE 14 dagen na aankoop — Bekijk het specificatieblad voor meer informatie! |
Ps. De getoonde foto’s kunnen kwa bestickering en/of kleuren afwijken van het origineel.
Deze kaart is/heeft:
– Schoongemaakt
– Getest op Windows 10
The GeForce 9300 GE was a graphics card by NVIDIA, launched on June 1st, 2008. Built on the 55 nm process, and based on the G98 graphics processor, in its G98-700-U2 variant, the card supports DirectX 11.1. Even though it supports DirectX 11, the feature level is only 10_0, which can be problematic with many DirectX 11 & DirectX 12 titles. The G98 graphics processor is a relatively small chip with a die area of only 80 mm² and 210 million transistors. It features 8 shading units, 4 texture mapping units, and 4 ROPs. NVIDIA has paired 256 MB DDR2 memory with the GeForce 9300 GE, which are connected using a 64-bit memory interface. The GPU is operating at a frequency of 540 MHz, memory is running at 400 MHz.
Being a single-slot card, the NVIDIA GeForce 9300 GE does not require any additional power connector, its power draw is not exactly known. Display outputs include: 1x DVI, 1x HDMI, 1x VGA. GeForce 9300 GE is connected to the rest of the system using a PCI-Express 2.0 x16 interface.
Extra informatie
Gewicht | 1000 g |
---|---|
Afmetingen | 20 × 10 × 2 mm |
Geheugen grootte (byte) | |
Geheugentype | |
Geheugenfrequentie (MHz) | |
Geheugen bandbreedte (GBps) | |
Geheugen bus (bit) | |
Fabrikant | |
Koelingstype (Actief/Passief) | |
Chip | |
Fill Rate (Triangles/s) | |
Grafische resolutie | |
OS ondersteuning | |
Connector (VGA) | |
Fabrikant onderdeel nr. | |
Texture rate (Texels/s) | |
Transistor aantal | |
Connector (DVI) | |
Chipgrootte | |
Pixel Rate (Pixel/s) | |
Connector (HDMI) | |
Chip Architectuur | |
API ondersteuning (DirectX) | |
Pixel Shader versie | |
Vormfactor | |
API ondersteuning (OpenGL) | |
Pixel shader aantal | |
API ondersteuning (OpenCL) | |
API ondersteuning (Vulkan) | |
Interface | |
Vertex Shader versie | |
Generatie | |
TMU (Texture mapping unit) aantal | |
ROP (Render output unit) aantal | |
GPU Clock (MHz) | |
Bouwjaar | |
Lithografie (nm) | |
Slotbreedte |
