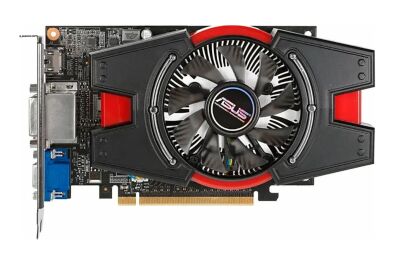

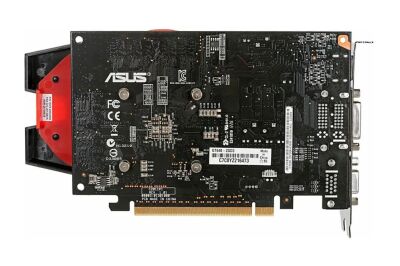

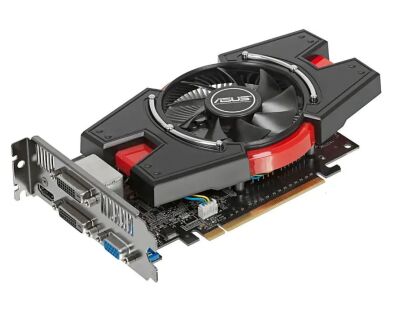

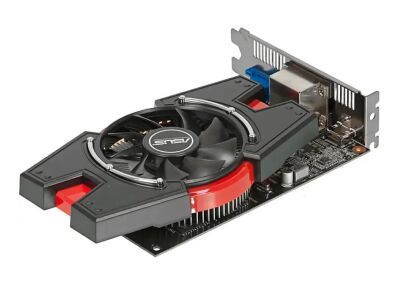

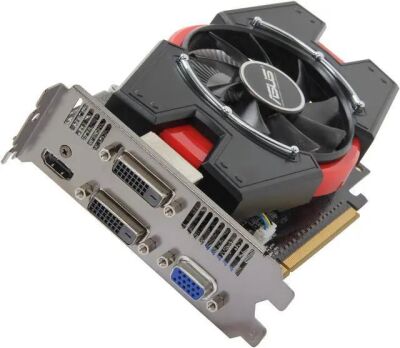

Grafische kaart nVidia GK107 GeForce GT 640 2GB DDR3 PCI-E 16x 2.0 2xDVI HDMI VGA Asus (2e kans)
€ 38,72 incl. BTW
- Beschrijving
- Extra informatie
- Merk
- Downloads
- Q & A
Beschrijving
Dit is een 2e KANS Retro artikel/product, en is getest op werking/functionaliteit! — GARANTIE 14 dagen na aankoop — Bekijk het specificatieblad voor meer informatie! Zonder doos tenzij anders vermeld |
The GeForce GT 640 was a mid-range graphics card by NVIDIA, launched on June 5th, 2012. Built on the 28 nm process, and based on the GK107 graphics processor, in its GK107-300-A2 variant, the card supports DirectX 12. Even though it supports DirectX 12, the feature level is only 11_0, which can be problematic with newer DirectX 12 titles. The GK107 graphics processor is an average sized chip with a die area of 118 mm² and 1,270 million transistors. It features 384 shading units, 32 texture mapping units, and 16 ROPs. NVIDIA has paired 2,048 MB DDR3 memory with the GeForce GT 640, which are connected using a 128-bit memory interface. The GPU is operating at a frequency of 902 MHz, memory is running at 891 MHz.
Being a single-slot card, the NVIDIA GeForce GT 640 does not require any additional power connector, its power draw is rated at 65 W maximum. Display outputs include: 1x DVI, 1x HDMI 1.4a, 1x DisplayPort 1.2. GeForce GT 640 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card measures 145 mm in length, and features a single-slot cooling solution. Its price at launch was 99 US Dollars.
Extra informatie
Gewicht | 1000 g |
---|---|
Afmetingen | 20 × 10 × 2 mm |
Geheugen grootte (byte) | |
Geheugentype | |
Geheugenfrequentie (MHz) | |
Geheugen bandbreedte (GBps) | |
Geheugen bus (bit) | |
Lengte (mm) | |
Koelingstype (Actief/Passief) | |
Chip | |
Fill Rate (Triangles/s) | |
Grafische resolutie | |
OS ondersteuning | |
Connector (VGA) | |
Fabrikant onderdeel nr. | |
Texture rate (Texels/s) | |
Connector (S-video) | |
Transistor aantal | |
Multi GPU support | |
Connector (DVI) | |
Chipgrootte | |
Pixel Rate (Pixel/s) | |
Connector (HDMI) | |
Chip Architectuur | |
Connector externe voeding | |
API ondersteuning (DirectX) | |
Pixel Shader versie | |
Vormfactor | |
API ondersteuning (OpenGL) | |
Pixel shader aantal | |
API ondersteuning (OpenCL) | |
API ondersteuning (Vulkan) | |
Interface | |
Vertex Shader versie | |
Generatie | |
TMU (Texture mapping unit) aantal | |
ROP (Render output unit) aantal | |
GPU Clock (MHz) | |
Bouwjaar | |
Lithografie (nm) | |
Slotbreedte |
