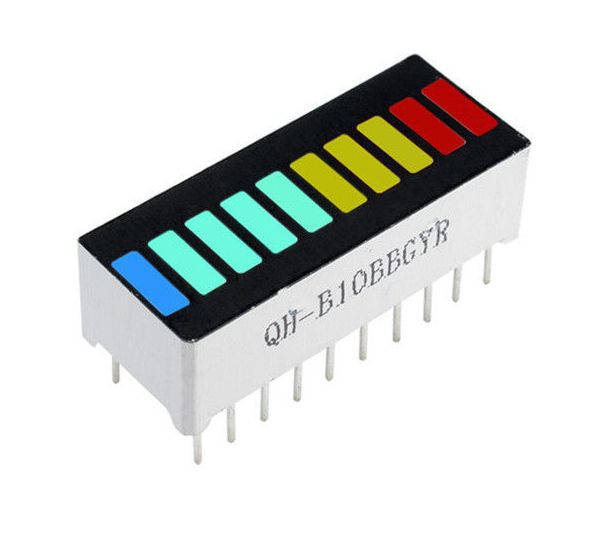

LED Bar module 10 segmenten blauw groen geel rood KYX-B10BGYR

Beschrijving

Description:

LED Bar-Graph is an LED array, which is used to connect with electronic circuit or micro-controller. It’s easy to connect LED bar graph with the circuit like as connecting 10 individual LEDs with 10 output pins. Generally we can use the LED bar graph as a Battery level Indicator, Audio equipements, and Industrial Control panels. There are many other applications of LED bar graphs .You can control the LED bar graph with the micro-controller or connecting to an electronic circuit.

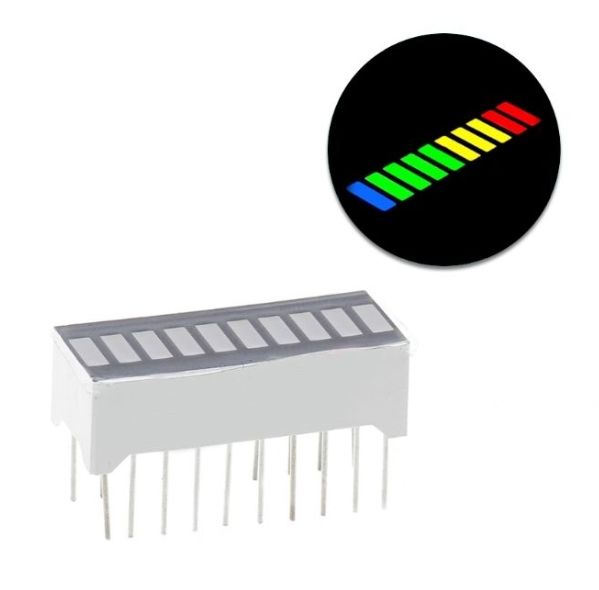

KYX-B10BGYR / B10 1B4PG3Y2R

LEDS:

1 x Blue Light

4 x Green Light

3 x Yellow Light

2 x Red Light

Specification:

– Color: red, yellow, green, blue

– Pin pitch: 2.54mm

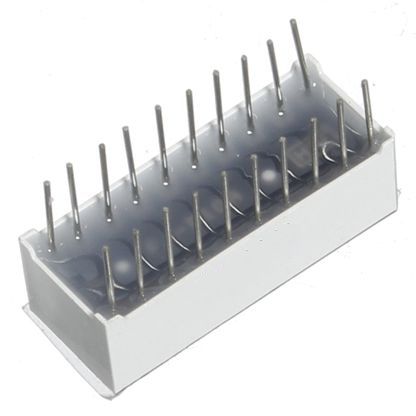

– Number of pins: 20

– Forward voltage: the red LED is 2.5V,yellow one is 2.0V, green one is 2.8V, blue one is 3.0V

– Forward Current: 15mA (max)

– Reverse voltage: 5V (max)

– Luminous Intensity: 60mcd

– Operating Temperature: -25℃ to 85℃

– Storage Temperature: -30℃ to 85℃

– Soldering Temperature: 260℃ for 5 sec

– Led Colors: Red, Green, Blue, Yellow, Orange

Features:

– 10 LEDs with individual control

– High Luster

– High Intensity

– Breadboard or Perf board friendly

– RoHS Compliant

– Wide viewing angle

Application:

– Industrial Controls

– Instrumentation

– Office Equipment

– Computer Peripherals

– Consumer Products

– Digital Display
