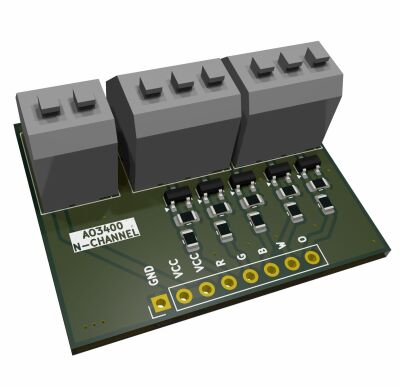

LED strip controller module 5-channel RGBWO 3.3V compatible 5x 5.8A N-Channel AO3400 (DomoticX eXperience EML01 V1) - Afbeelding 1

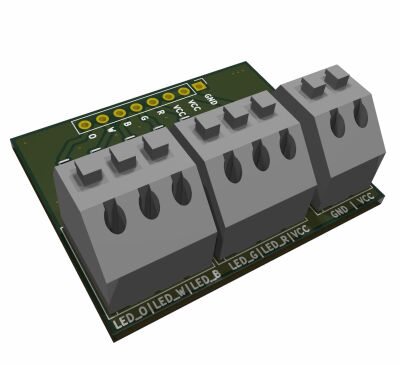

LED strip controller module 5-channel RGBWO 3.3V compatible 5x 5.8A N-Channel AO3400 (DomoticX eXperience EML01 V1) - Afbeelding 2

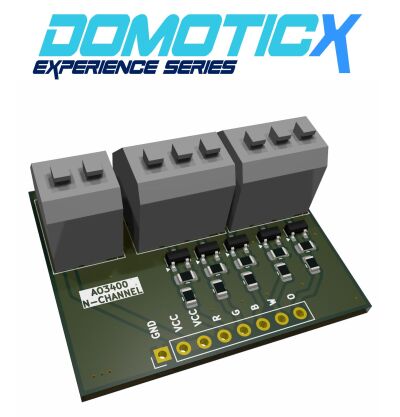

LED strip controller module 5-channel RGBWO 3.3V compatible 5x 5.8A N-Channel AO3400 (DomoticX eXperience EML01 V1) - Afbeelding 3

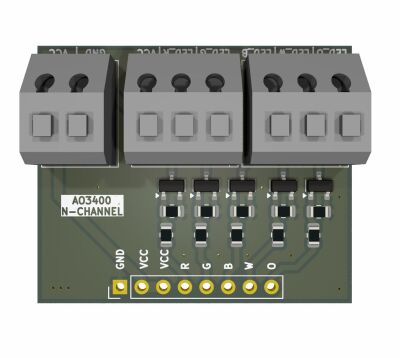

LED strip controller module 5-channel RGBWO 3.3V compatible 5x 5.8A N-Channel AO3400 (DomoticX eXperience EML01 V1) - Afbeelding 4

LED strip controller module 5-channel RGBWO 3.3V compatible 5x 5.8A N-Channel AO3400 (DomoticX eXperience EML01 V1)

€ 2,90 incl. BTW

Availability: 30 op voorraad Artikelnummer: MOD-3269-EML01 Categorieën: , , , Tags: , , , , , , , , , , , ,
Vergelijken

Beschrijving

This module is shipped with HEADER PINS

Specifications:

VDS = 30V
ID (at VGS=10V) 5.8A
RDS(ON) (at VGS=10V) < 28mΩ
RDS(ON) (at VGS = 4.5V) < 33mΩ
RDS(ON) (at VGS = 2.5V) < 52mΩ

VGS: 3-30V

Dimensions (LxBxH):

37mm x 30mm x 6mm

Extra informatie

Gewicht 50 g
Afmetingen 4 × 3 × 1,5 mm
Icoon

AO3400A datasheet (UMW)

1 bestand(en) 1.27 MB
Downloaden
