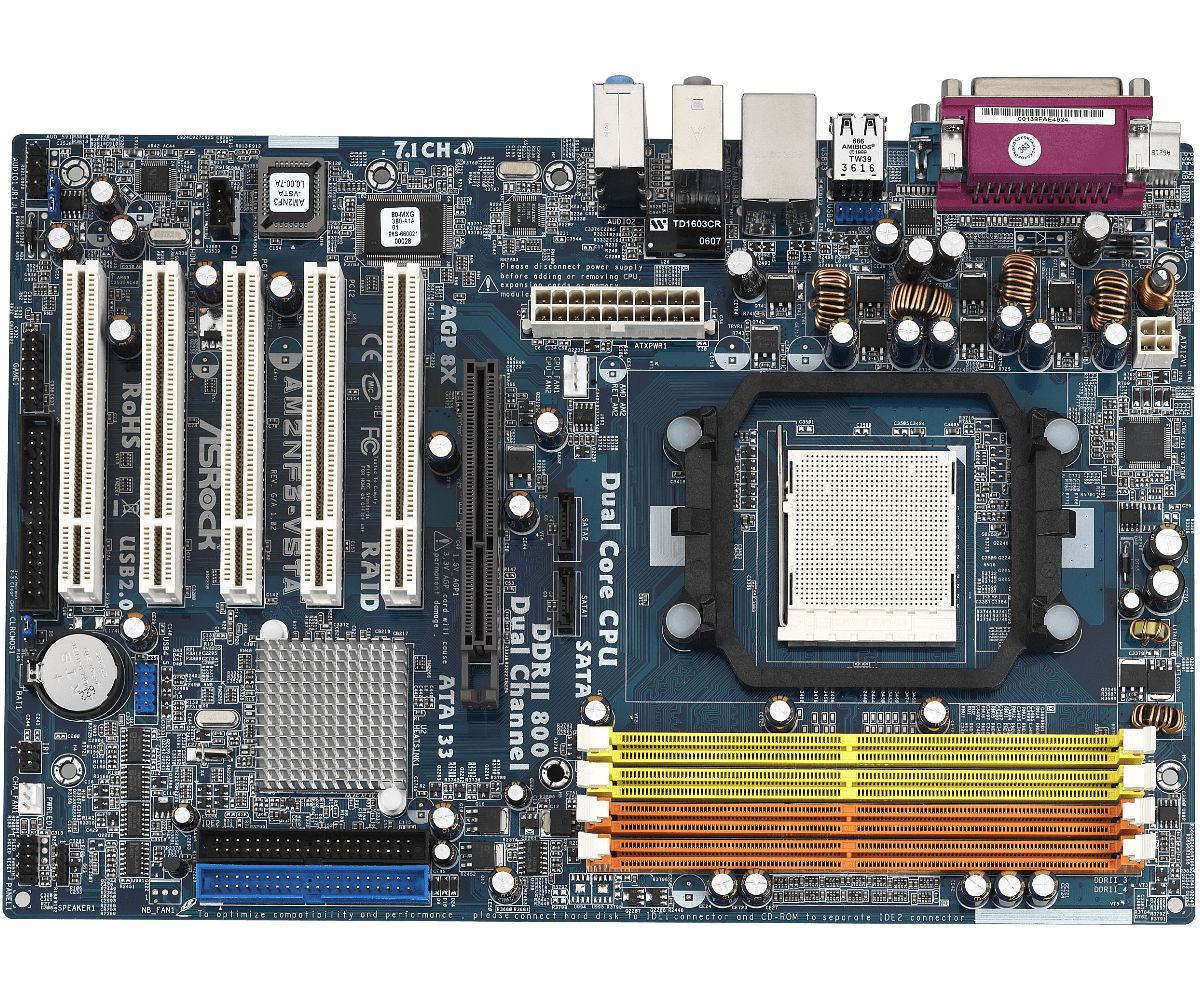

Moederbord Socket AM2+ DDR2 AGP ATX 24+4-pins / ASROCK AM2NF3-VSTA

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

• Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
• NVIDIA^® nForce3 250 Chipset
• Hyper-Transport Technology, AMD Cool ‘n’ Quiet Technology
• Supports Dual Channel DDR2 1066/800/667/533 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
• ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
• Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/ PCI Buses
• Hybrid Booster – ASRock Safe Overclocking Technology
• 1 x AGP 8X slot
• 2 x SATA 1.5 Gb/s, support RAID (RAID 0, 1, JBOD) and Hot Plug functions
• 7.1 CH Windows^® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture)
• Worldwide the only nForce3 MB with Windows^® Vista™ Premium Logo
• ASRock 8CH I/O: 4 x Ready-to-Use USB 2.0 Ports, 7.1 channel audio jacks
• ——————————————

• CPU
  – Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  – Supports AMD’s Cool ‘n’ Quiet Technology
  – Supports Untied Overclocking Technology
  – Supports Hyper-Transport Technology
  – AM3 CPU Ready*



  *If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

  *If you adopt AMD Phenom™ X4 AM2+ CPU on this motherboard with AGP VGA cards, please click here for AGP VGA Card support list.
• Chipset
  – NVIDIA^® nForce3 250
• Memory
  – Dual Channel DDR2 memory technology
  – 4 x DDR2 DIMM slots
  – Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
  – Max. capacity of system memory: 16GB**



  *Support with AM3 / AM2+ CPU.

  **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS
  – 4Mb AMI BIOS
  – AMI Legal BIOS
  – Supports “Plug and Play”
  – ACPI 1.1 Compliance Wake Up Events
  – Supports Jumperfree
  – SMBIOS 2.3.1 Support
• Graphics
  – n/a
• Audio
  – 7.1 CH Windows^® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture)
• LAN
  – Realtek PHY RTL8201CL
  – Speed: 10/100 Ethernet
  – Supports Wake-On-LAN
  – Supports PXE
• Slots
  – 5 x PCI slots
  – 1 x AGP 8X slot*



  *If you plan to install Windows^® XP 64-bit / Vista™ 32-bit / Vista™ 64-bit OS on this motherboard, please click here to read instructions and limitation carefully. For Windows^® 2000 / XP OS, there is no such limitation.
• Connector
  – 2 x SATA 1.5 Gb/s connectors, support RAID* (RAID 0, RAID 1, JBOD) and Hot Plug functions
  – 2 x ATA133 IDE connectors (support 4 x IDE devices)
  – 1 x Floppy connector
  – 1 x IR header
  – 1 x Game header
  – CPU/Chassis FAN connector
  – 20 pin ATX power connector
  – 4 pin 12V power connector
  – CD in header
  – Front panel audio connector
  – 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB23 ports on the I/O panel)



  *RAID function is only available under Windows^® 2000, XP or XP 64-bit OS.
• Rear Panel I/O
  ASRock 8CH I/O
  – 1 x PS/2 Mouse Port
  – 1 x PS/2 Keyboard Port
  – 1 x Serial Port: COM1
  – 1 x Parallel Port (ECP/EPP support)
  – 4 x Ready-to-Use USB 2.0 Ports
  – 1 x RJ-45 Port
  – Audio Jack: Side Speaker / Rear Speaker / Central Bass / Line in / Front Speaker / Microphone
• Unique Feature
  Hybrid Booster:
  – CPU Frequency Stepless Control
  – ASRock U-COP
  – Boot Failure Guard (B.F.G.)
  – ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
• Support CD
  – Drivers, Utilities, AntiVirus Software (Trial Version)
• Accessories
  – Quick Installation Guide, Support CD, I/O Shield
  – Floppy/ATA 133 Cables
  – 1 x SATA Data Cable
  – 1 x SATA 1 to 1 Power Cable
• Hardware Monitor
  – CPU Temperature Sensing
  – Chassis Temperature Sensing
  – CPU Fan Tachometer
  – Chassis Fan Tachometer
  – CPU Quiet Fan
  – Voltage Monitoring: +12V, +5V, +3.3V, Vcore
• Form Factor
  – ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm
• OS
  – Microsoft^® Windows^® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
• Certifications
  – FCC, CE

Extra informatie

Merk

ASRock
