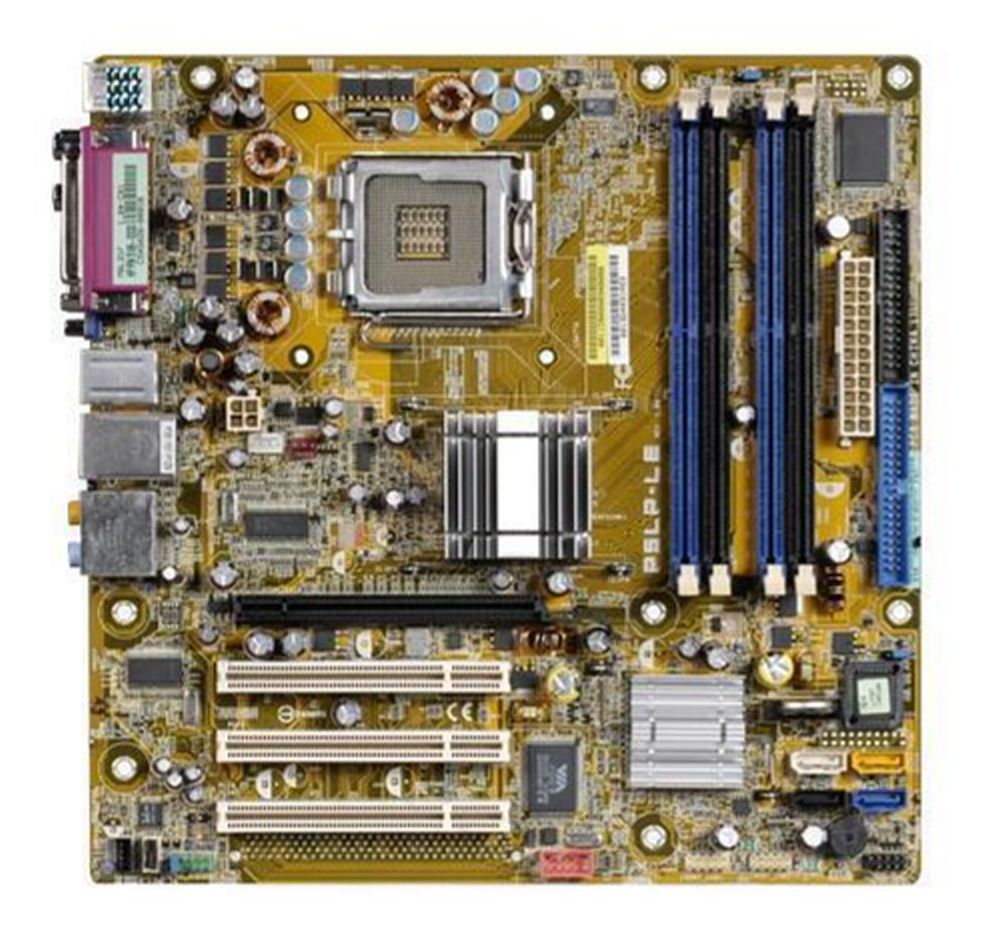

Moederbord Socket LGA775 DDR2 PCI-E MicroATX 24+4-pins / ASUS P5LP-LE (HP)

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

General InformationManufacturer: ASUS Computer InternationalManufacturer
Part Number: P5LP-LEManufacturer
Website Address:
http: //usa. asus.
comBrand Name: AsusProduct
Model: P5LP-LEProduct
Name: P5LP-LE
Desktop MotherboardProduct Type: Desktop
MotherboardProcessor & ChipsetChipset Manufacturer: IntelTotal
Processor Supported: 1Processor
Socket: Socket
T LGA-775Processor Supported: Pentium 4Celeron DPentium DCore 2 DuoMemoryNumber of
Memory Slots: 4Memory
Form Factor: DIMMUDIMM
Maximum
Memory Supported: 4 GBMemory
Speed Supported: 667
MHz533 MHz400 MHzMemory Standard: DDR2-667/PC2-5300DDR2-533/PC2-4200DDR2-400/PC2-3200Memory
Technology: DDR2
SDRAMI/O ControllerController Type: Floppy ControllerUltra ATA/66 (ATA-5)Ultra ATA/100 (ATA-6)Serial ATA
VideoOnboard Video: On-board Video ChipsetGraphics
Controller Manufacturer: IntelGraphics
Controller Model: GMA 950AudioAudio
Channels: 7.1I /O ExpansionsNumber of Total
Expansion Slots: 4Total Number of
PCI Express Slots: 1Number of PCI Express x16
Slots: 1Interfaces/PortsTotal Number of
USB Ports: 4Number of
USB 2.0 Ports:
4S/PDIF:
YesVGA: YesNumber of
Network (RJ-45) Ports: 1Onboard InterfacesNumber of
SATA Interfaces: 4Total Number of
Onboard USB Ports: 2Number of
Onboard USB 2.0 Ports: 2Physical
CharacteristicsForm Factor: Micro ATX
Width: 9.6″D
epth: 9.6″M iscellaneousEnvironmentally
Friendly: YesEnvironmental
Certification: RoHS

Description

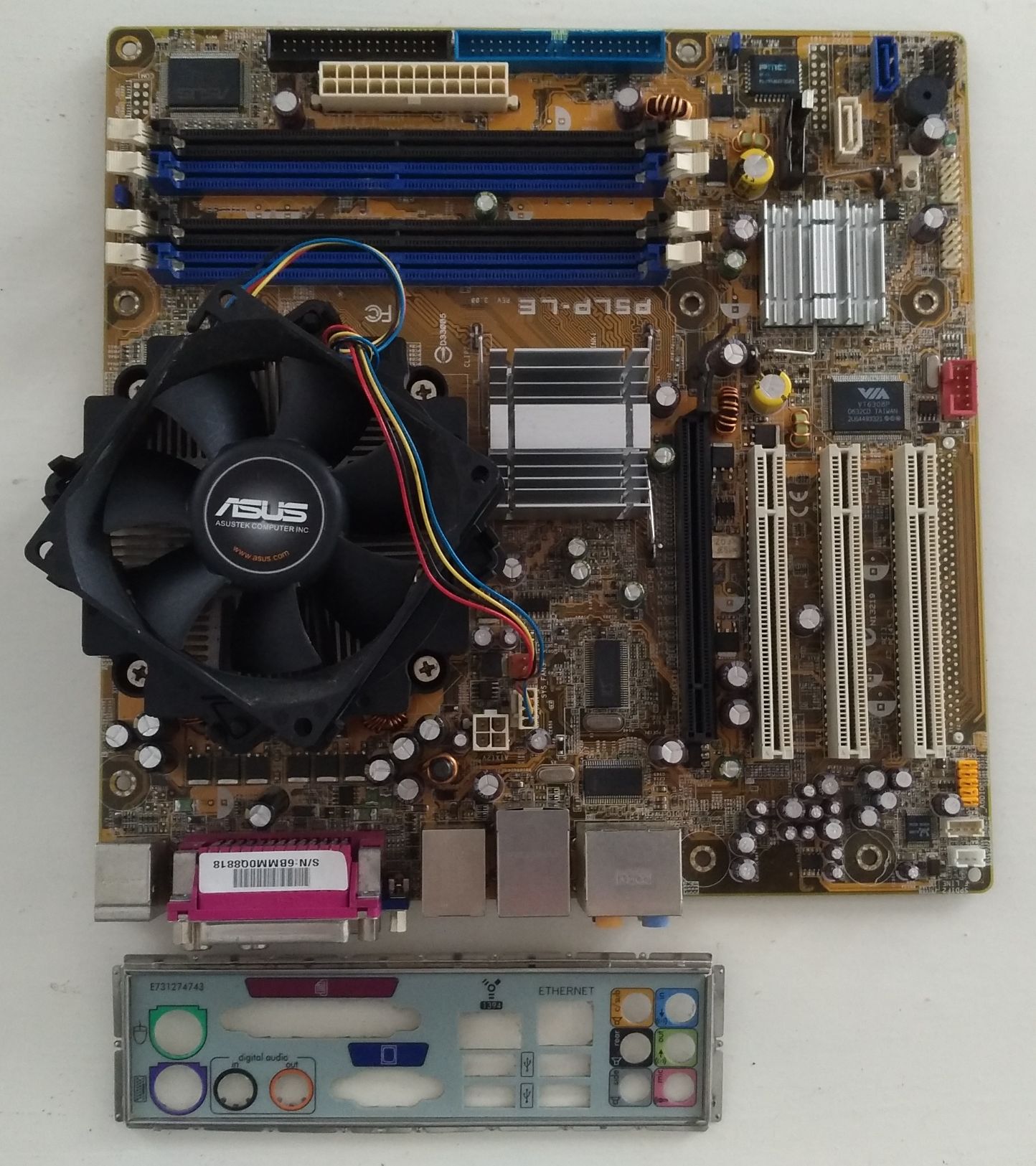

HP a61010n Leonite-GL8E 5188-6733 Asus P5LP-LE REV 5.03 Socket 775 Motherboard + Core 2 Duo E4300 1.8GHz CPU + Fan and I/O Plate

Download latest Drivers/Manual/BIOS

Motherboard description

• Motherboard name: ASUS P5LP-LE REV 5.03

• HP/Compaq name: Leonite-GL8E

Chipset

• Northbridge: Intel 945G

• Southbridge: ICH7DH

CPU

• Socket type: 775

• FSB: 533, 800, 1066MHz (processor dependent)

Memory

• Four 240-pin DDR2 DIMM 400, 533, 667Mhz Non ECC Unbuffered 4GB Max

Video

• Integrated graphics using Intel GMA 950

Audio

• Integrated Realtek ALC888 Audio

LAN

• Intel 82562V 10/100Mb/s 10-Base-T Ethernet

Expansion Slots

• One PCI Express x16

• Three PCI

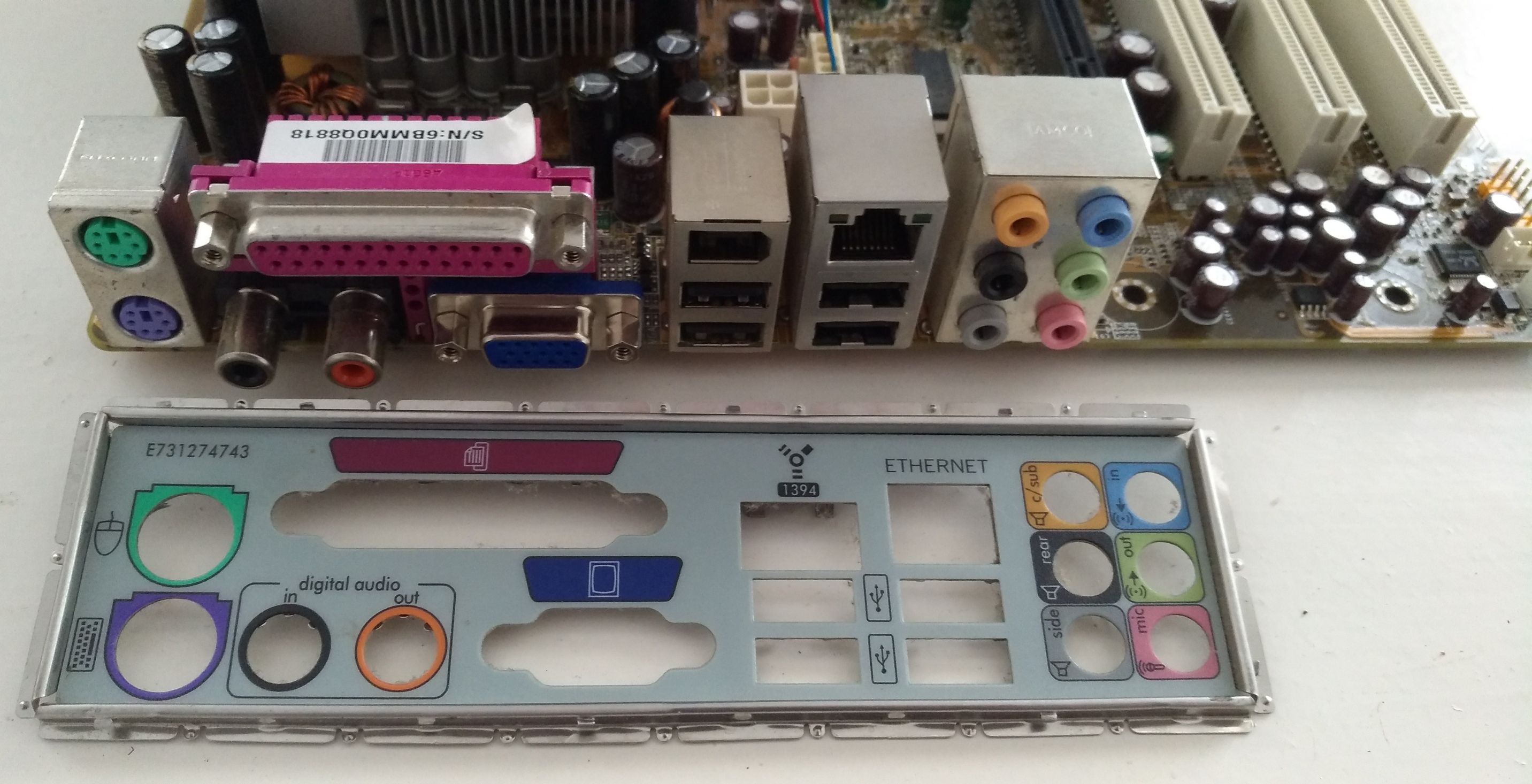

Back I/O panel

• PS/2 mouse (green)

• IEEE 1394a

• RJ-45 Network (LAN)

• Audio port

• USB 2.0: 4

• Video Graphics Adapter

• Coaxial SPDIF Out

• Coaxial SPDIF In

• PS/2 keyboard (purple)

Internal Connectors

• One 24-pin ATX power connector

• One 4-pin ATX power connector

• One PATA connector

• Four SATA connectors

• One floppy drive connector

• Two 12v fan connector for CPU fan and System fan

• One 9-pin header for power button, reset button, power LED, and HDD LED

• One SPDIF-Audio output connector

• One line input connector

• One 9-pin audio header for headphone-out and microphone-in

• Two USB 2.0 connectors supporting 4 additional USB 2.0 ports

• One IEEE 1394a header

• One jumper for resetting BIOS settings

• One jumper to disable BIOS password checking

Form Factor

• Micro-ATX
