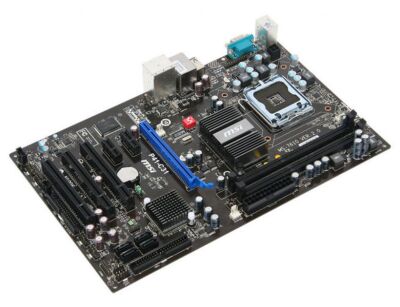

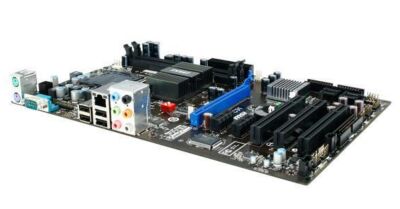

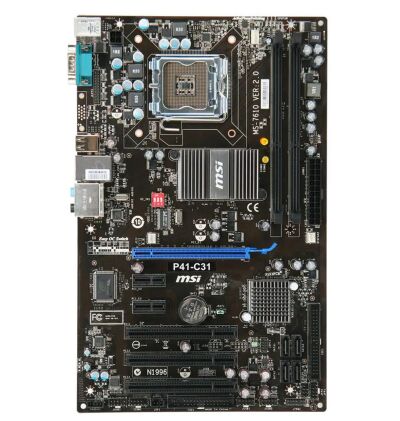

Moederbord Socket LGA775 DDR3 PCI-E ATX 24+4-pins / MSI MS-7610 P41T-C31 MET CPU HEASINK, MET I/O SHIELD (2e kans)

Beschrijving

Dit is een 2e KANS/Retro artikel/product, en is getest op werking/functionaliteit!

— GARANTIE 14 dagen na aankoop —

Opmerkingen:
– Getest en werkend.
– Wordt geleverd met nieuwe CR2032 batterij.
– Wordt geleverd met I/O shield indien van toepassing (tenzij anders vermeld)
– Wordt geleverd met processor koeler/heatsink indien van toepassing (tenzij anders vermeld)
– Alleen moederbord, dwz, wordt zonder processor, werkgeheugen, doos, kabels of CD (drivers) geleverd.
– Drivers zijn eventueel hier te downloaden: Drivers downloaden
– Lees onderstaande informatie goed door kwa ondersteuning processor, geheugen, etc.
——————————————

meer informatie: https://www.msi.com/Motherboard/P41C31/Specification

Socket 775
Baseclock/Hyper Transport 800/1066/1333
Chipset Intel® G41+ICH7
DDR3 Memory DDR3 800/1066*(OC)
Memory Channel Dual
DIMM Slots 2
Max Memory (GB) 4
PCI-E x16 1
PCI-E Gen Gen1 (1×16)
PCI-E x1 2
PCI 3
IDE 1
SATAII 4
TPM (header) 1
USB 2.0 ports (Rear) 4
Serial ports (Rear) 1
Audio ports (Rear) 6
APS Y

Form Factor ATX

CPU • Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package. • Supports Intel® Yorkfield, Wolfdale in the LGA775 package. • Supports Intel® next generation 45nm multi-core processors • Supports FSB 1333/1066/800 MHz. • Supports VRD 11.1 standard. • Supports FMB 05a@95W Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset • Intel® G41 Chipset – Supports FSB 800/1066/1333 MHz. • Intel® ICH7 Chipset – Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports. – 4 SATAII ports with transfer rate up to 3Gb/s. – PCI Master v2.3, I/O APIC. – ACPI 2.0 compliant.

Main Memory • Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066* (OC) DRAM, 4GB Max

Slots• One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant). • Two PCI Express x1 slots • Three 32-bit v2.3 master PCI bus slots. – Support 3.3v/5v PCI bus interface.

On-Board IDE/SATA • One Ultra DMA 66/100 IDE controller integrated in Intel® ICH7. – Supports PIO, Bus Master operation modes. – Can connect up to two Ultra ATA drives. • SATAII controller integrated in ICH7 chipset – Up to 3Gb/s transfer speed. – Supports four SATAII ports by ICH7

Audio• Chipset integrated by Realtek® ALC889 / ALC888S – Flexible 8-channel audio with jack sensing – Compliant with Azalia 1.0 Spec – Meet Microsoft Vista Premium spec

LAN• Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL

Internal I/O Connectors– ATX 24-Pin power connector – 4-pin ATX 12V power connector – CPU x1/ System x2 FAN connectors – CD-in connector – Front panel audio connector – Front panel connector – 1 x chasis intrusion connector – 2 x USB 2.0 connectors – 1 x Floppy disk drive connector – 4 x Serial ATAII connectors – 1 x ATA100 connector – 1 x SPDIF-Out connector – Clear CMOS Jumper – 1 x OC Switch – 1 x Serial port connector – 1 x Parallel port connector – 1 x TPM module connector

Back Panel I/O Ports – 1 x PS/2 keyboard – 1 x PS/2 mouse – 1 x Serial port (COM 1) – 1 x 6 in 1 audio jack – 4 x USB 2.0 ports – 1 x RJ45 LAN jack

BIOS• The motherboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically. • The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
