MOSFET module N-channel Trigger 3-15VDC NCE6020AK 60V 20A 45W (DomoticX eXperience EMN01 V1)
€ 5,93 incl. BTW
Availability: 47 op voorraad
Artikelnummer: MOD-3233-EMN01
Categorieën: DomoticX eXperience series, Relais / Schakel module, Transistor / MOSFET / TRIAC
Tags: 20A, 3-15VDC, 45W, 60V, DomoticX, EMN01, eXperience, module, MOSFET, N-Channel, NCE6020AK, trigger, v1
- Beschrijving
- Extra informatie
- Downloads
- Q & A
Beschrijving
This module is shipped with HEADER PINS
This is a high quality mosfet module, it can handle a current up to 20A switched in the GND, there is a gate voltage protection en back EMF diode placed.

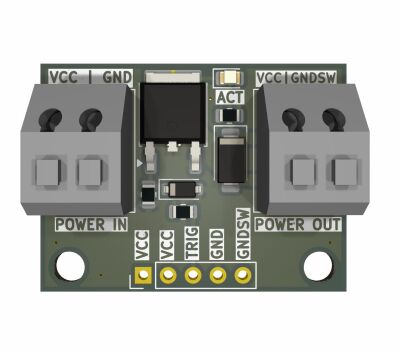

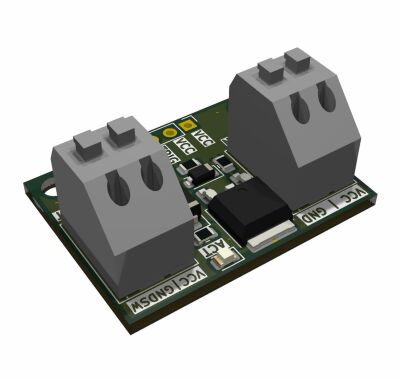

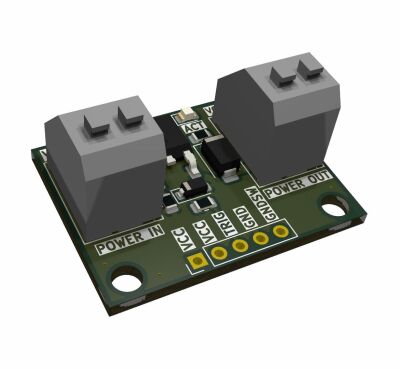

On this module is also a indication LED when the module is active, the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!
Specs:
Voltage: 0-60 VDC
Trigger: 3-15VDC
Mosfet: NCE6020AK
– The gate is voltage protected (15V) and inrush current limited by resitor.
– 1M Ohm resistor between GATE and DRAIN to prevent oscillating.
– Back EMF diode placed on output to protect the mosfet.
Dimensions (LxBxH):
31mm x 24mm x 16mm
Extra informatie
Gewicht | 75 g |
---|---|
Afmetingen | 4 × 3 × 1,5 mm |
