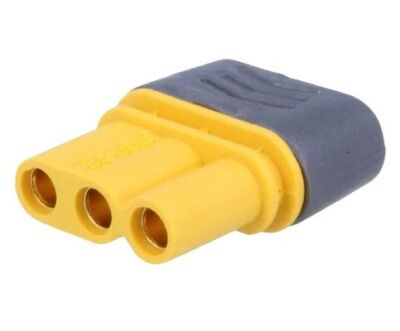

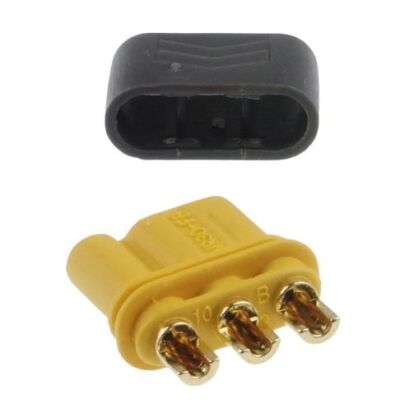

MR30 3-fasen motor connector female 30A

 0,91 incl. BTW

Availability: 20 op voorraad Artikelnummer: CON-0xxx-MR30F Categorie: Tags: , , , ,
Vergelijken

Beschrijving

Maximum current: 30 A (temporary current 40 A)

18 AWG wire

Gold-plated contacts

For mounting on a cable or PCB

Material: Nylon/PA

Low junction resistance of 0.8 mΩ

Permissible temperature: -20°C to 120°C

Dimensions: 11.9 x 4.9 x 15.4 mm

  • High Rated Current:With a rated current of 30A, the MR30 plug is designed for high-power applications.
  • Wide Temperature Range:Operating from -20°C to 120°C, the MR30 connector adapts to various environments.
  • Gold-Plated Metal Material:Featuring gold-plated metal, the MR30 connector ensures superior conductivity and durability.
  • Recommend Use 100 TIMES:Crafted for longevity, the MR30 connector is recommended for 100+ uses, reducing maintenance.
  • High Voltage Resistance:The MR30 plug withstands DC 500V, making it suitable for high-voltage connections.

Extra informatie

Gewicht 4 g
Afmetingen 3 × 1,5 × 1 mm
