Nuvoton N76E003AT20 8-Bit 8051 MCU 16MHz 18KB FLASH TSSOP-20

 0,93 incl. BTW

Availability: 29 op voorraad Artikelnummer: IC-0148-N76E Categorieën: , Tags: , , , , , , , ,
Vergelijken
Nuvoton

Beschrijving

The N76E003 provides up to 18 I/O pins under 20 pin package and rich peripherals including two UARTs, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2% deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC. N76E003 supports small form factor packages TSSOP20 (4mm x 6.5mm) and QFN20 (3mm x 3mm) for easy board design.

N76E003AT20 has:
16-MHz 8051 core
2.4 – 5.5V operating range
18 KB of flash memory
1 K of SRAM
Dedicated 6-channel 16-bit PWM module
Two UARTs, an SPI peripheral, and an I2C peripheral
12-bit 8-channel ADC @ 500 ksps
Programmable slew-rate GPIO
Dual data pointers (DPTRs)

Target Application:
Access Control System, Thermostat, Bluetooth Speaker, Electric Meter, Data Collector, Battery charger, Beauty Equipment, Small Home Appliance, etc.

Key Features:

Core
– 1T 8051 processor
– Max frequency up to16 MHz
– Wide operating voltage: 2.4V to 5.5V
– Temperature range: -40℃ to 105℃

Memory
– 18 KB of Flash memory
– 1 KB of SRAM
– Supports configurable Data Flash
– Supports program update by:

ISP (In-System Programming)
ICP (In-Circuit Programming)
IAP (In-Application Programming)
PWM
– Up to 6-ch PWM
– Programmable dead-zone generator

ADC
– 12-bit 8-ch ADC
– Runs up to 500 kSPS

Connectivity
– Two UARTs up to 115200 bps
– One SPI up to 8 MHz
– One I²C up to 400 kHz

Clock Control
– < 2% deviation16 MHz Internal RC oscillator
– 10 kHz Internal RC oscillator

Part No. N76E003AT20
Flash (Kbytes) 18
SRAM (Kbytes) 1K
Data Flash (Kbytes) Configurable
ISP ROM (Kbytes)
I/O up to 18
Timer (16-bit) 4
Connectivity-UART 2
Connectivity-SPI 1
Connectivity-I²C 1
PWM (16-bit) 6
ADC (12-bit) 8
ICP IAP ISP
INT 2
Special Function 1T 8051, 16 MHz internal RC, KBI, on-chip debugger
Operating Temp. Range (°C ) -40 ~ +85
Comp.

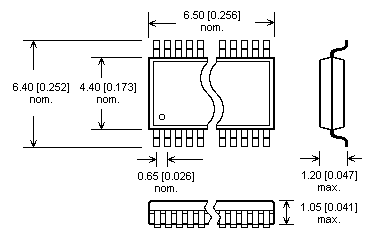

Chip Package TSSOP20 (4.4×6.5)

Extra informatie

Gewicht 0,5 g
Afmetingen 1 × 1 × 0,5 mm
