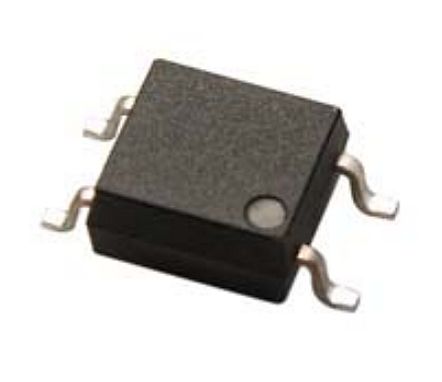

Optocoupler 1-Kanaal EL357 SOP-4
€ 0,15 incl. BTW
Availability: 99 op voorraad
Artikelnummer: IC-0138-EL357
Categorie: Optocoupler en Schakelaar IC
Tags: 1-Kanaal, EL357, Optocoupler, SOP-4
- Beschrijving
- Extra informatie
- Q & A
Beschrijving
Informatie (ENG)
The EL357 series contains an infrared emitting diode, optically coupled to a phototransistor. It is packaged in a 4-pin small outline SMD package.
Features
• Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V)
• High isolation voltage between input and output (Viso=3750 V rms )
• Compact small outline package
Applications
• Programmable controllers
• System appliances, measuring instruments
• Telecommunication equipments
• Home appliances, such as fan heaters, etc.
• Signal transmission between circuits of different potentials and impedances
Extra informatie
Gewicht | 1 g |
---|---|
Afmetingen | 1 × 1 × 0,5 mm |
