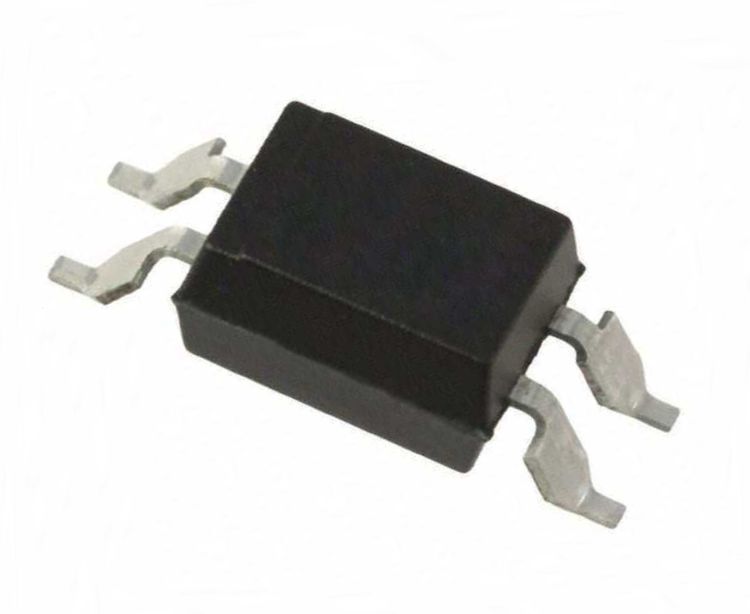

Optocoupler 1-Kanaal SFH6206-3 SOP-4

Beschrijving

Informatie (eng)

The SFH620A (DIP) and SFH6206 (SMD) feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These couplers have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 or SMD package. The coupling devices are designed for signal transmission between two electrically separated circuits. The couplers are end-stackable with 2.54 mm lead spacing. Creepage and clearance distances of > 8 mm are achieved with option 6. This version complies with IEC 60950 (DIN VDE 0805) for reinforced insulation to an operation voltage of 400 V RMS or DC.

• Good CTR linearity depending on forward current
• Isolation test voltage, 5300 V RMS
• High collector emitter voltage, V CEO  = 70 V
• Low saturation voltage
• Fast switching times
• Low CTR degradation
• Temperature stable
• Low coupling capacitance
• End-stackable, 0.100″ (2.54 mm) spacing
• High common-mode interference immunity

Extra informatie

Gewicht	1 g
Afmetingen	1 × 1 × 0,5 mm
