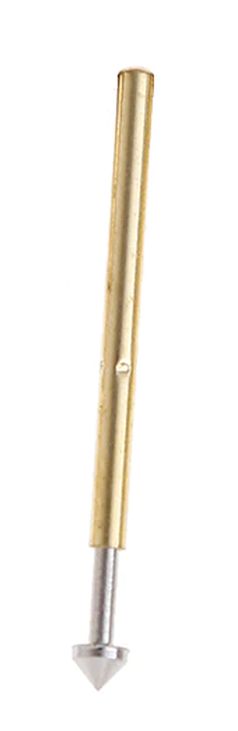

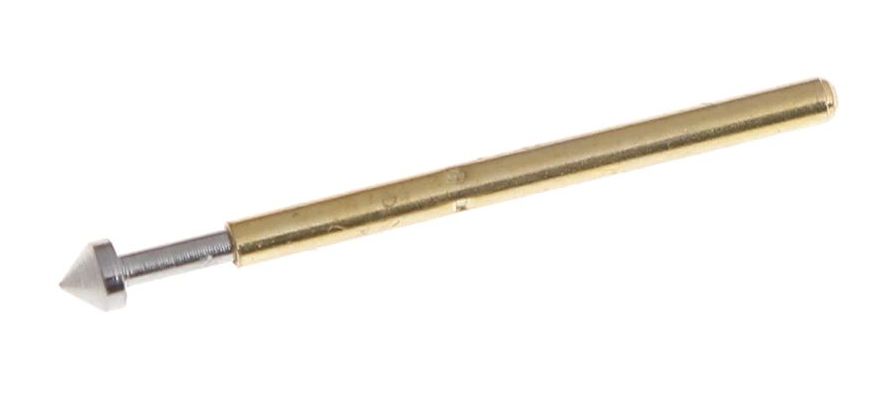

Pogo Pin Test Probe 0.75mm conisch P75-E3

 0,18 incl. BTW

Availability: 84 op voorraad Artikelnummer: CON-0049-P75E3 Categorie: Tags: , , , , , ,
Vergelijken

Beschrijving

Spring: music wire, gold plated
P75-E2 needle diameter: 1.5 mm;
Needle tube diameter: 1.0 mm;
Needle rod diameter: 0.66 mm;
Needle total length: approx. 16.5mm
Pin sets sold separately, the needle sheath diameter of 1.32mm
Drill size: approx. 1.4mm
Minimum test distance: approx. 1.91mm
Full Stroke: 2.50mm
Current rating: 3A
Current resistance: 50mΩ
Plunger: heat treated beryllium copper

Extra informatie

Gewicht 0,2 g
Afmetingen 2 × 5 × 2 mm
