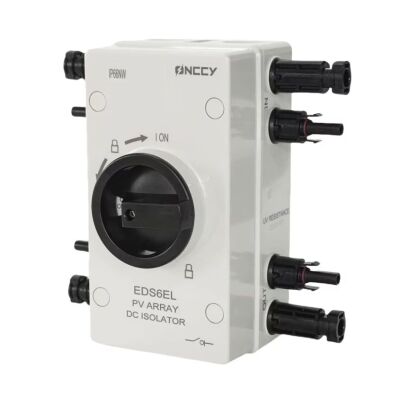

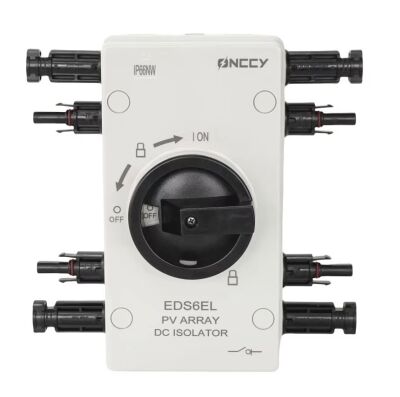

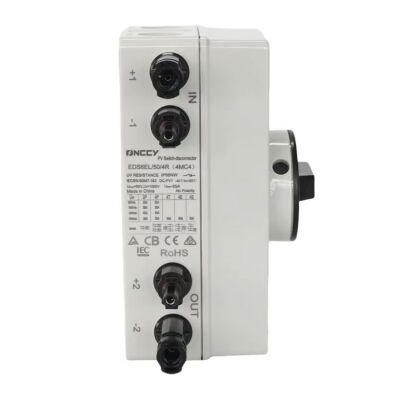

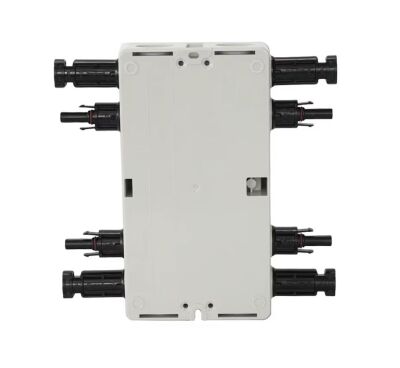

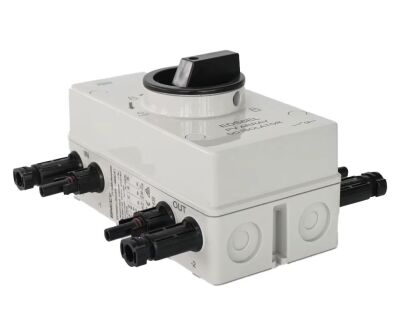

PV schakelaar DC Isolator 1500V 40A 2-kanalen MC4 connector NCCY EDS6EL-40-4R 4M4C

Beschrijving

EDS6EL DC Isolator(1600V) IP66 Enclosure

Rated insulation voltage：1500V

Rated thermal current：55A

Rated impulse withstand voltage：8000

Rated short-time withstand current (1s)：780A

Rated short-time making capacity：1200A

Maximum cable cross sections (incl. jumper)

Solid or standard：4-16mm²

Flexible：4-16mm²

Flexible (+ multicore cable end)：4-16mm²

General parameters

Knob positions：12 o’clock OFF, 3 o’clock ON

Electrical Life：3000 Cycles

Mechanical Life：10000 Cycles

Distance of contacts(per pole)：8mm

IP rating of shafte and mounting nut：IP66

Torque

Tightening torque terminal screws M4.: 1.2-1.8 N·m

Tightening torque single hole mounting nut M16: 2.0-2.3 N·m

Tightening torque knob screws M3: 0.5-0.7 N·m

Switching on or off torque: 0.9-1.3 N·m
