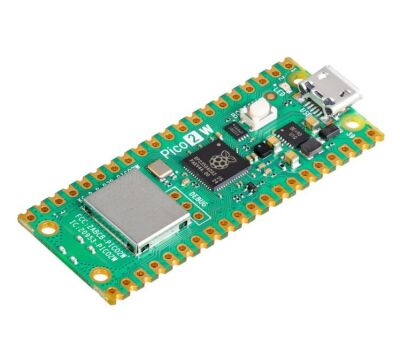

Raspberry Pi Pico 2W RP2350 ARM microcontroller micro-usb (WiFi and Bluetooth)

Beschrijving

Wordt geleverd met 2x 1×20 en 1×3 male headerpins

Raspberry Pi Pico 2W is Raspberry Pi Foundation’s update to their popular RP2040-based wireless ico board, now built on RP2350: their new high-performance, secure microcontroller. With a higher core clock speed, double the on-chip SRAM (512KB), double the on-board flash memory (4MB!), more powerful Arm M33 cores, new security and low-power features, and upgraded interfacing capabilities, the Raspberry Pi Pico 2 delivers a significant performance and feature boost while retaining hardware and software compatibility with earlier members of the Raspberry Pi Pico series.

The unique dual-core, dual-architecture capability of RP2350 allows users to choose between a pair of industry-standard Arm Cortex-M33 cores and a pair of open-hardware Hazard3 RISC-V cores. You can use either Arm or RISC-V cores, so this is a great way to dabble in RISC-V development with an affordable board that has lots of peripherals. The M33 has an FPU, and is ‘basically’ 2x as fast as the M0+ of the RP2040 when we speed-tested it.

Not only is the Pico 2 twice as fast, it has twice as much RAM, 520KB compared to 264KB. The Pico also has twice as much FLASH memory, 4MB instead of 2MB, which will make it a much better board for CircuitPython usage where the internal memory is used to store files. There’s also one more PIO blocks (3 blocks with 4 state machines apiece, rather than 2) so you can do even more pin twiddling at once. For folks who want to use the RP2350 to generate high frequency output signals like DVI display output, you can use the HSTX (high speed transmission) peripheral rather than PIO.

For customers who wanted a more secure microcontroller for product design, the RP2350 provides a comprehensive security architecture, built around Arm TrustZone for Cortex-M, and incorporating signed boot, 8KB of antifuse OTP for key storage, SHA-256 acceleration, a hardware TRNG, and fast glitch detectors. These features, including the secure boot ROM, are extensively documented and available to all users without restriction: this transparent approach, which contrasts with the “security through obscurity” offered by legacy vendors, allows professional users to integrate RP2350, and Raspberry Pi Pico 2, into products with confidence.

Programmable in C / C++ and CircuitPython/MicroPython, and with detailed documentation, Raspberry Pi Pico 2 is the ideal microcontroller board for enthusiasts and professional developers alike. It makes an excellent upgrade to the RP2040, with lots of back-compatibility and some excellent upgrades.

Please note: The Pico 2Wcomes with the A2 version of the RP2350, which is affected by the E9 erratum. This erratum affects some uses of GPIO and PIO such as high-impedance inputs and the internal pulldowns. You may need to use 8.2K or smaller resistors if pull-downs are required. At this time, Sept 9 2024, there is no other version of the RP2350 available – only the A2 version.

Specifications

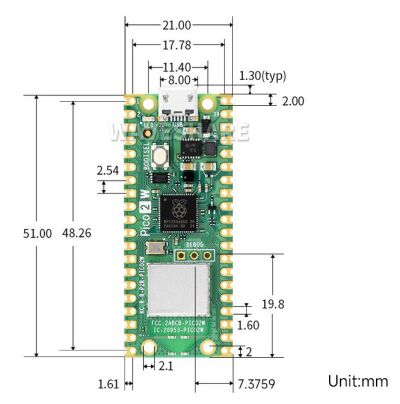

Afmetingen	21x55mm
CPU	Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @150MHz
Geheugen	520 KB on-chip SRAM; 4 MB on-board QSPI flash
Connectiviteit	2.4GHz 802.11n wireless LAN and Bluetooth 5.2

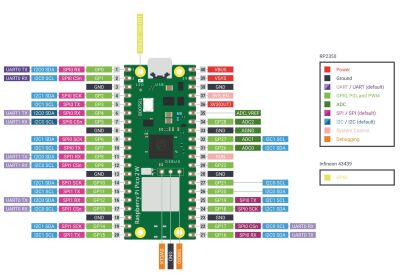

Interface	26 GPIO pinnen, waarvan 4 geschikt voor ADC
Aansluitingen	2 × UART 2 × SPI controllers 2 × I2C controllers 24 × PWM channels 1 × USB 1.1 controller and PHY, with host and device support 12 × PIO state machines
Input	1.8-5.5V DC
Werktemperatuur	-20°C tot 85°C

Een vergelijkingstabel tussen de Pico W en Pico 2 W

Feature	Raspberry Pi Pico 2 W	Raspberry Pi Pico W
SoC	RP2350A, Dual Core Arm Cortex M33 or Dual Core RISC-V Hazard3 running at up to 150 Mhz	RP2040, Dual Core Arm Cortex M0+ running at up to 133 MHz
SRAM	520 KB	264 KB
Flash Storage	4MB QSPI	2MB QSPI
Security	Arm TrustZone, 8KB OTP, Secure Boot	None
Wi-Fi / Bluetooth	Wi-Fi b/g/n and Bluetooth via CYW43439	Wi-Fi b/g/n and Bluetooth via CYW43439
Language Support	MicroPython, CircuitPython, C, C++	MicroPython, CircuitPython, C, C++
USB Interface	USB 1.1 Device and Host	USB 1.1 Device and Host
GPIO Logic Level	3.3V	3.3V
GPIO	26 x Digital IO	26 x Digital IO
	4 x 12-bit ADC (Analog pins)	3 x 12-bit ADC (Analog pins)
	2 x UART, 2 x I2C, 2 x SPI, 24 x PWM	2 x UART, 2 x I2C, 2 x SPI, 16 x PWM
Programmable IO	12 PIO State Machines	8 PIO State Machines
Onboard LED	GPIO 25	GPIO 25
Power	1.8 to 5.5V via Micro USB or VSYS	1.8 to 5.5V via Micro USB or VSYS
MCU Sleep Mode	<10uA	100uA
Dimensions	21 x 51mm	21 x 51mm
