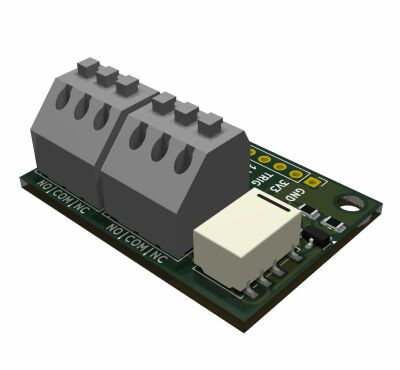

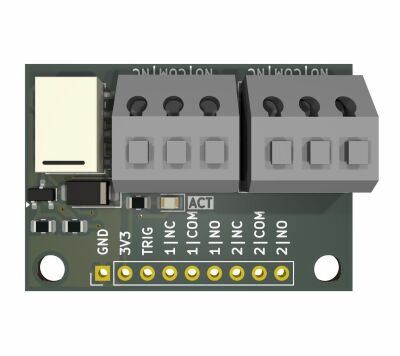

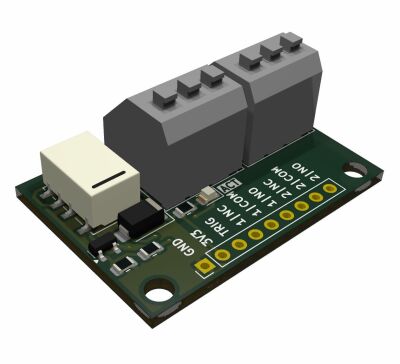

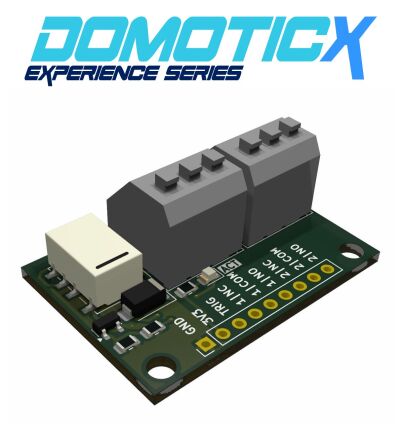

Relay module DPDT 3.3V 2xNO 2xNC G6K-2F-Y-TR-DC3 (DomoticX eXperience ER301 V1)

Beschrijving

This module is shipped with HEADER PINS

This is a Relay module it’s main purpose is to provide potentialfree normally open (NO) and normally closed (NC) contacts.

It can handle a little current up to 1A @ 30VDC or 0.3A @ 125VAC (PCB track width current limit: 1.2A)

On this module is also a indication LED when the module is active, the module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!

Specs:

Voltage: 3.3VDC

Trigger: 3-10VDC

Relay:
Type: G6K-2F-Y-TR-DC3
Coil current: 33mA (91 Ohm)
Max. switching current: 1 A

Max. switching voltage: 125 VAC, 60 VDC

Dimensions (LxBxH):

37mm x 26mm x 16mm
