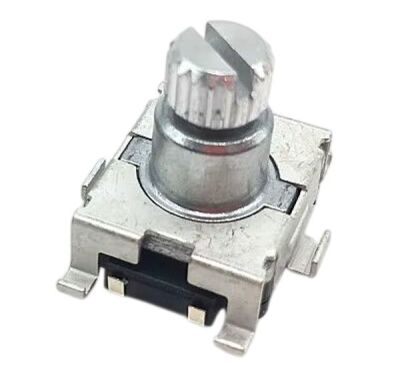

Rotary encoder met drukknop 9.5mm geribbelde as EC11 SMD EC110402M2F-VH1 (Remeha iSense repair)

Beschrijving

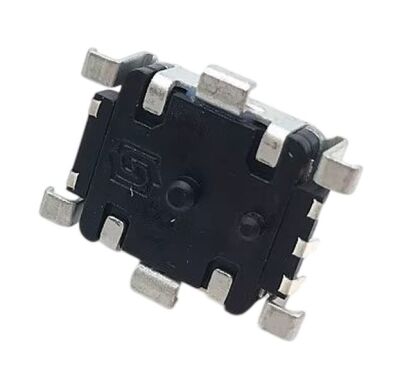

Incremental mechanical rotary encoder, 15 pulses per revolution and 30 detents, with push switch and with knurled shaft. Vertical and SMD installation.

Adaptable to various electronic devices:

• Remeha iSense klokthermostat knob
• Volkswagen T5 California (models from 2003 to 2015) control unit knob
• Volkswagen T6 California (models from 2015 to 2020) control unit knob

Model: EC110402M2F-VH1

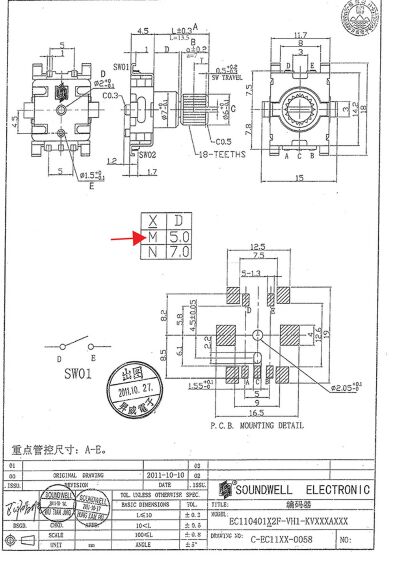

EC11 SMD Encoding Switch Product Specifications

Main specifications:
               Dimensions: ∮11mm;
               Rated voltage: DC 5V;
               Number of positions: 16/20/30/32;
                Number of pulses: 8/15/16/20;
               Operating temperature: -40°C to 85°C;
               Rotational life: over 30,000 cycles;

I. Mechanical Characteristics
       1. Detent Torque: 20-200 gf.cm
       2. Number and position of detent: 16/20/30/32 points
       3. Shaft wobble: 0.2 mm MAX
       4. Shaft play in rotational wobble: 2° MAX

II. Electrical Characteristics
       1. Resolution: 8/16/15/20 pulses/360°
       2. Phase difference: ≥3ms
       3. Rated voltage: DC 5V
       4. Insulation resistance: 10MΩ 1 Minute at DC 250V
       5. Dielectric voltage: 1 Minute at AC 50V

III. Endurance Characteristics Durability Feature
      1: Rotational life: 30,000 cycles per minute
