RP2040 ARM microcontroller developement board 16MB flash USB-C paars

Beschrijving

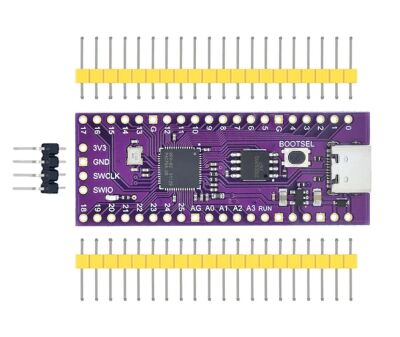

Wordt geleverd met 2x 1×20 en 1×4 horizontale male headerpins

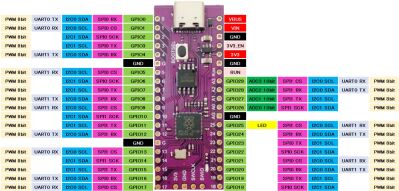

Let op: Dit board is niet compatible/vervangbaar met een originele Raspberry Pi Pico, de pinout en afmetingen zijn anders!

This is a high-performance microcontroller development board with a flexible digital interface. In terms of hardware, Raspberry Pi’s RP2040 microcontroller chip is equipped with ARM Cortex MO dual-core processor, running frequency up to 133MHz, built-in 264KB SRAM, 16MB memory, and up to 26 multi-function GPIO pins. In terms of software, you can choose THE C/C SDK provided by Raspberry PI, or use MicroPython for development, and supporting perfect development materials tutorial, which can be convenient for quick start development, and embedded into the application of the product.

The main features are:

1. The RP2040 microcontroller chip designed by Raspberry Pi is adopted

2. Equipped with dual-core ARM Cortex M0 processor, running frequency up to 133MHz flexible clock

3. Built-in 264KB SRAM and 16MB on-chip Flash (Boyamicro BY25Q128ES)

4. USB1.1 host and device support

5. Support low power sleep and hibernation modes

6. Drag and drop programs can be downloaded through USB recognized as mass memory

7. Up to 30 multifunctional GPIO pins

8. 2 SPIs, 2 12Cs, 2 UART, 4 12-bit ADC, 16 controllable PWM channels

9. Accurate on-chip clock and timer

10. Temperature sensor

11. On-chip accelerated floating point library

12. 8 programmable I/0 (PIO) state machines for custom peripheral support

13. The MicroPython firmware has been burned and can be developed using MicroPython directly
