RS-485 RS-422 transciever module 3.3V UART RTU SP3485 TVS/ESD protection (DomoticX eXperience ERT01 V1)
€ 4,24 incl. BTW
Availability: 30 op voorraad
Artikelnummer: MOD-3267-ERT01
Categorieën: Communicatie module, DomoticX eXperience series, RS485 / Modbus, RS485 / Modbus module
Tags: 3.3V, DomoticX, ERT01, eXperience, module, protection, RS-422, RS-485, RTU, SP3485, transciever, TVS/ESD, UART, v1
- Beschrijving
- Extra informatie
- Downloads
- Q & A
Beschrijving
This module is shipped with HEADER PINS

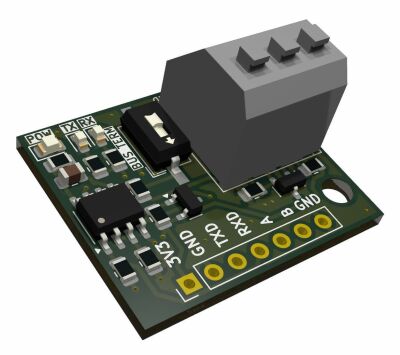

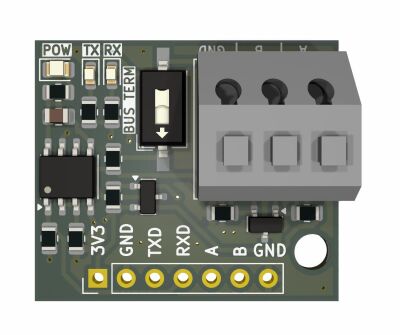

This is a high quality RS485 transciever module with a SP3485 transciever chip, the RS485 lines are TVS/ESD protected.
On this module is also a power indication LED and a switch for bus termination resistor (120 Ohm), the module has auto RX/TX switching components and LEDS for RX and TX communication, no need for extra I/O to regulate! The module can be placed easily in a breadbord and external wires can be connected easily with the push-in connector on top!
Specs:
RS485 Interface: RS485/Modbus
RS485 Transciever: SP3485 (Max. Bitrate: 10 Mbps)
Voltage: 3.3VDC
Extras:
- Power led indicator
- Auto RX/TX switching
- RX/TX Leds
- BUS termination switch
- TVS/ESD protection
Dimensions (LxBxH):
27mm x 24mm x 16mm
Extra informatie
Gewicht | 50 g |
---|---|
Afmetingen | 4 × 3 × 1,5 mm |
