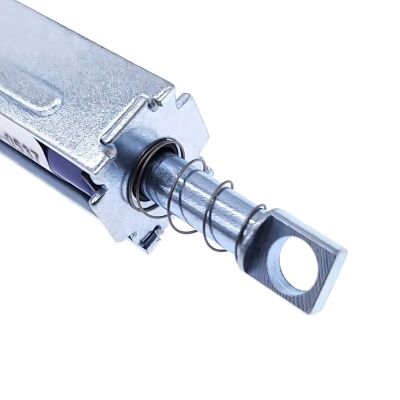

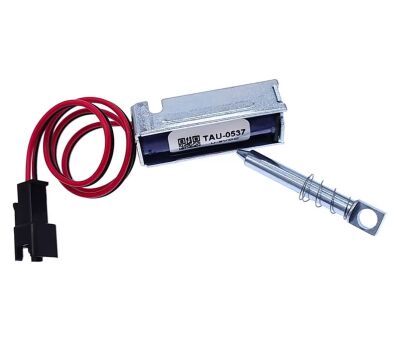

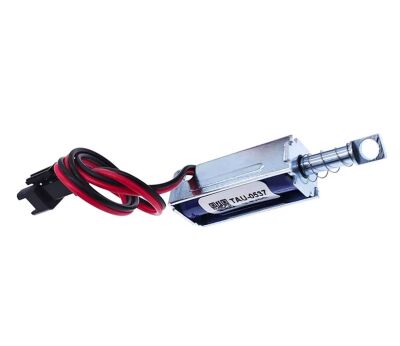

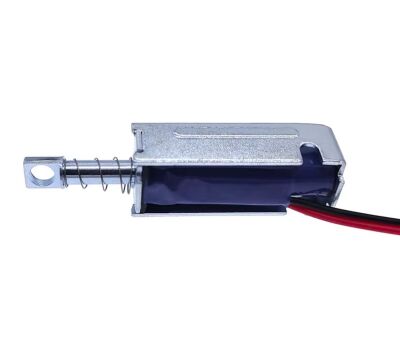

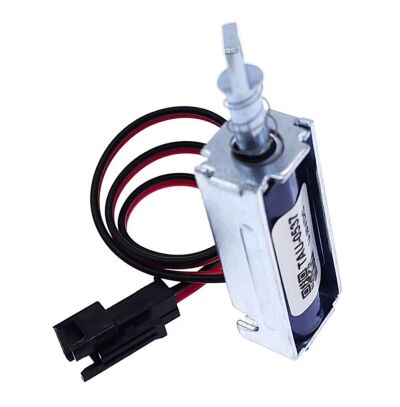

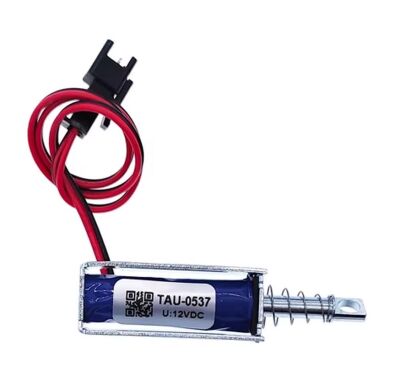

Solenoid 12V 2A Pull 10mm open frame met JST-SM 2P connector TAU-0537

Beschrijving

Product Details
Introducing the TAU-530 Solenoid, an efficient and robust electromagnet designed specifically for intermittent work. This high-performance solenoid is perfect for applications requiring consistent on-off cycling, such as 1 second on and 1 second off. Despite continuous operation, the TAU-530 maintains stable temperatures, ensuring reliability and longevity.

Key Features:
Intermittent Operation: Designed for applications requiring rapid on-off cycling, enhancing performance and reliability.
Temperature Stability: Capable of maintaining stable temperatures during continuous operation, contributing to extended service life.
High Force Output: Provides strong magnetic force, suitable for various mechanical and industrial applications.

Technical Specifications:
Scope: Applicable only for the Tubular solenoid U0530S.

Standard Test Condition:
Ambience temperature: 20±2°C
Relative humidity: 65RH±5%
Atmospheric pressure: 1013mbar
Power: Steady power
Load: Counter weight
Test posture: Plunger to be vertical and load down

Model	Voltage	Current	Stroke	Initial suction	Maximum single power-on time
TAU-0537-6V	6V	1.5A	5mm	130	8S
TAU-0537-12V	12V	2A	5mm	130	10S
TAU-0537-24V	24V	1A	5mm	130	15S

Additional Characteristics:
Insulation resistance: 100MΩ between coil and frame AC500V.
Dielectric strength: AC1000V (50/60Hz) for 1 minute or AC1200V (50/60Hz) for 1 second (5mA).
Temperature rise: 65°C max after DC12V applied by resistance method (10% ED).
Life: Repetitive operation for 0.5 million cycles (10% ED).
Lead wire strength: 0.5kgf added in random direction without chipping off.
Operating temperature and humidity: -5°C to +55°C, 5%RH to 85%RH.

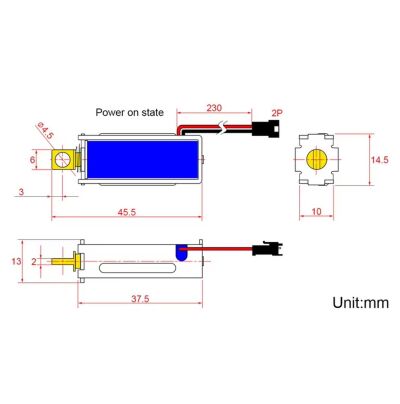

Dimensional Specifications:
Dimensions: Refer to the attachment for detailed measurements.

Technical Requirements:
No dimension tolerance shall be ±0.2.
Slide bar movement is flexible, without jamming.
