Stroommeter sensor AC 5A verhouding 2000-1 2.5mA analoog ZMCT102

 0,94 incl. BTW

Availability: 50 op voorraad Artikelnummer: SEN-2102-T102C Categorie: Tags: , , , , , ,
Vergelijken

Beschrijving

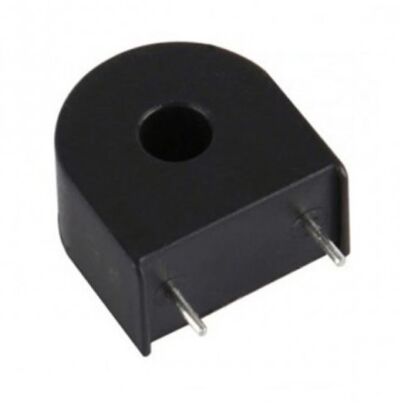

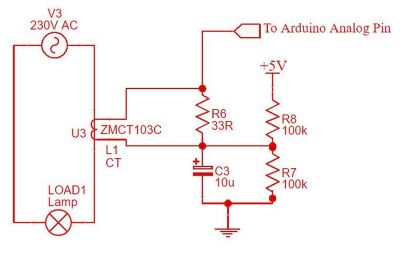

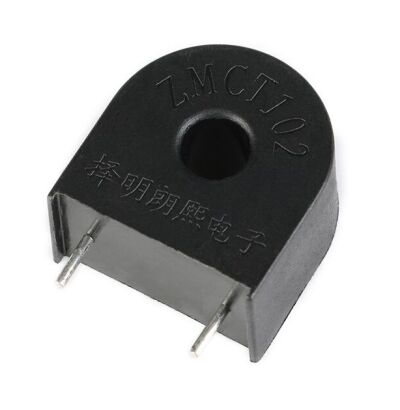

ZMCT102 is a Micro precision current transformer having current ratio of 5A/2.5mA.ZMCT102 is the best choice to measure the AC current using a microcontroller. This CT is very easy to mount on PCB, It also provides high galvanic isolation and very high accuracy.

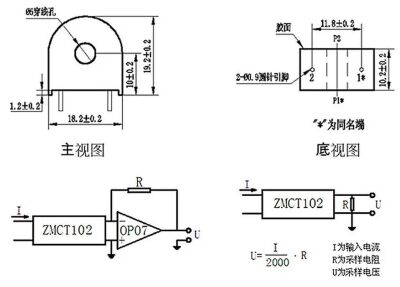

This current transformer module makes it easy to measure AC current upto 5 Amps. ZMCT102  is  a small size PCB mount CT with 2000:1 turns ratio and Dimensions:  18.2 x 12 x 19.2 mm (LxWxH).

Features:
Application Would Include Current, Power, And Energy Monitoring Device
Current Measurement
Precision Power Meter
Low Cost, Small Size High accuracy, PCB Mounting Pattern
Fully ROHS Compliant, CE proved

Specification:
Model : ZMCT102
Input Current : 0 – 20 Ampere (100Ω)
Output Current : 2.5mA at 5 Ampere
Turns ratio : 2000:1
phase angle Error : Input 1 A, Sampling Resistor 100Ω
Linearity : ≤0.2%
Permissible error -0.2%≤f≤+0.2%
Isolation Voltage : 4500 Volts
Application : Current and Power Measurement
Encapsulation : Epoxy
Installation : PCB Mounting (Pin Length>3mm)

Extra informatie

Gewicht 8 g
Afmetingen 3 × 3 × 2 mm
