Tuimelschakelaar M12 3-standen 6A 250VAC Marquardt 0815-0101 (TE SOLDEREN, GEEN M3.5 BOUTEN) (scraps/e-waste)

Beschrijving

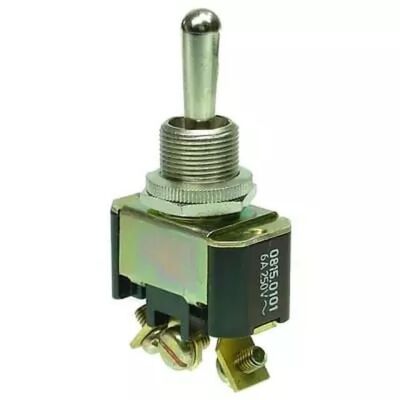

Toggle switches, type Marquardt 0815.

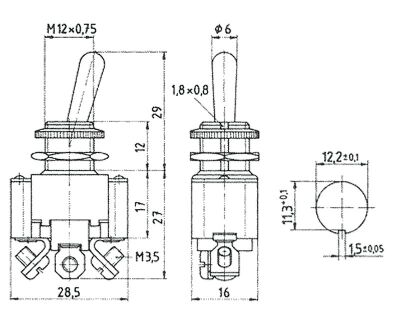

With screw connection and M12 x 0.75 bushing mount

Breaking capacity: 6.0 A/250 VAC.

Leakage current resistance: PTI 125

Degree of protection: IP 40

Ambient temperatures termination/actuation side (no condensation): –20 to +85 °C/–20 to +55 °C,

Technical attributes (type, number of poles, switching functions ON, OFF): 0815.0101, single-pole, ON-OFF-ON

Technical specifications

	Property	Value
	contact surface	silver-plated
	Type of mounting	central Mounting
	Breaking capacity	6 A/250 VAC
	Actuator colour	metal
	Pin number	1 pole
	Design	vertical
	illuminated	No
	Connection	screw connection
	Shift position	On-Off-On
	Latching switching function	latching
