USB-C UART module 3.3V RX/TX/CTS/DTR/RTS CH340K (DomoticX eXperience EUK01 V1)

 4,72 incl. BTW

Availability: 30 op voorraad Artikelnummer: MOD-3261-EUK01 Categorieën: , , Tags: , , , , , , , , ,
Vergelijken

Beschrijving

This module is shipped with HEADER PINS.

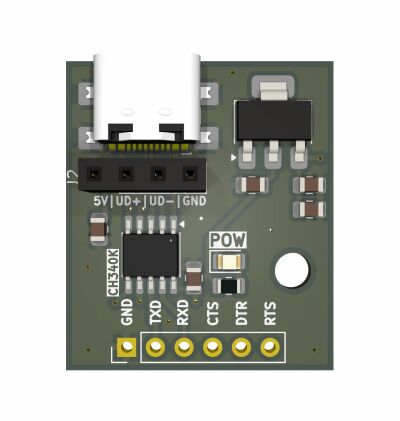

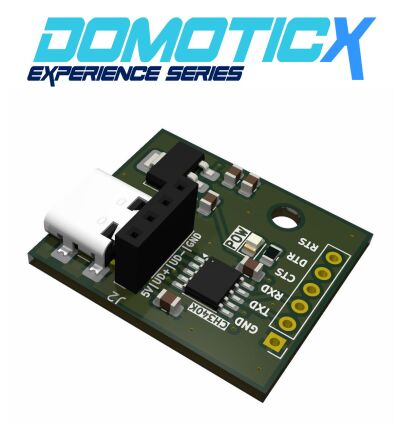

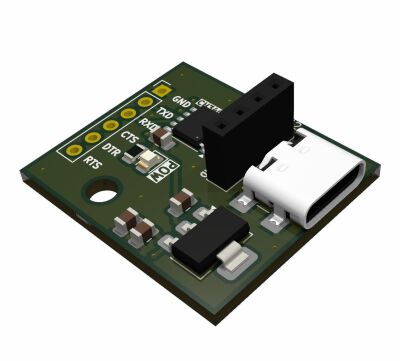

This is a USB to UART module with a CH340K USB chip, it supports baudrates from 150 to 2000000, and also provides common CTS/DTR/RTS modem signals.

On this module is also a indication LED when the module is powered, the module can be placed easily in a breadbord and you can also add your own USB wires to the module with the provided pinsocket.

Specs:

Voltage: 3.3VDC

Baud rates: 50, 75, 100, 110, 134.5, 150, 300, 600, 900, 1200, 1800, 2400, 3600, 4800, 9600, 14400, 19200, 28800, 33600, 38400, 56000, 57600, 76800, 115200, 128000, 153600, 230400, 460800, 921600, 1500000, 2000000, etc.


– The gate is voltage protected (15V) and inrush current limited by resitor.

– 1M Ohm resistor between GATE and DRAIN to prevent oscillating.

– Back EMF diode placed on output to protect the mosfet.

Dimensions (LxBxH):

24mm x 28mm x 12mm

Extra informatie

Gewicht 50 g
Afmetingen 4 × 3 × 1,5 mm
