Beschrijving
Dit is een 2e KANS/Vintage artikel/product, en is getest op werking/functionaliteit! — GARANTIE 14 dagen na aankoop — |
Getest op Windows XP, drivers worden automatisch gevonden en geïnstalleerd!
4 slots op de achterkant, 1 in de kast

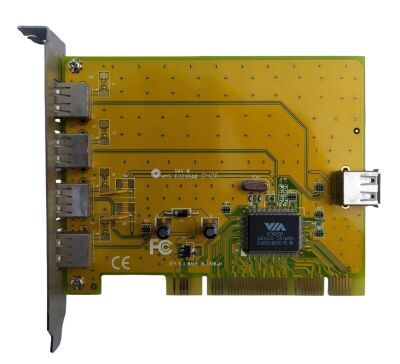

EV-CV4N is a high-speed 480 Mbps USB 2.0 PCI card supporting the new USB 2.0 peripherals and all the existing USB 1.1 devices. The card adds 4 external plus 1 internal USB 2.0 high-speed ports to desktop system. With 40 times faster throughput than USB 1.1 ports, EU-CV4N supports data rates up to 480 Mbps. The card is an ideal choice for external storage devices, MP3 players, external writer, digital cameras, webcam, networking and video devices, and all other USB devices.
Key Features
Fully Plug and Play
Designed with VIA VT6202 Chipset
Complies with USB 2.0 and 1.1 standards
Connects up to 127 devices in a tiered star configuration
Supports high-speed (480Mbps), full-speed (12Mbps) and low speed (1.5Mbps) devices
4 Ports (root hub and four down stream function ports)
Suuplies 500mA power for each port
Select Bus-Powered and self-powered mode automatically
Over current detection / protection, power switch control
Integrated physical layer transceivers
Normal and low power operating modes
Extra informatie
| Gewicht | 55 g |
|---|---|
| Afmetingen | 11 × 12 × 1,5 mm |
| Aansluitingen | |
| Chip | |
| Fabrikant onderdeel nr. | |
| Interface | |
| Data snelheid (Mbit/s) | |
| Slotbreedte |
