Beschrijving
USB Programmer
- Support 24EEPROM and 25 SPI flash 8pin/16pin chip
- USB to TTL port, can getroot online
- With CH341A chip

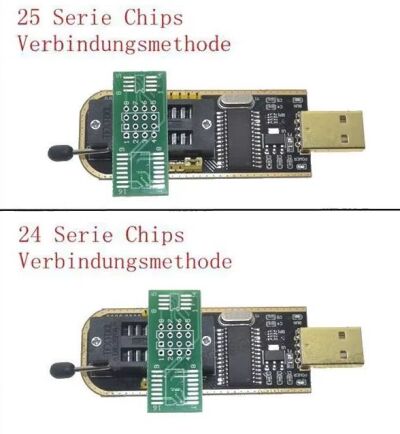

- Recognize 25 series chip automatically
- And support download STC series procedure of singlechip

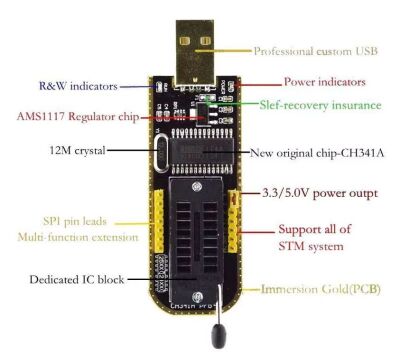

- With 24/25 status indicator lamp
- SPI pin to support expanding the utility
Features:

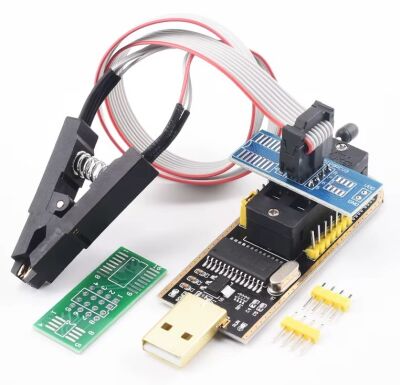

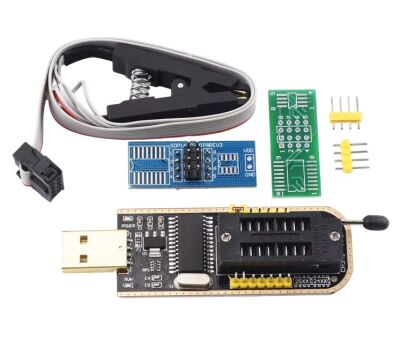

Ch341a 24 25 Series Eeprom Flash Bios Usb Programmer Module + Soic8 Sop8 Test Clip For Eeprom 93cxx / 25cxx / 24cx
**Advanced Programming Capabilities**
The CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module is a versatile tool designed for the efficient programming and testing of EEPROM 93CXX, 25CXX, and 24CX series chips. With its user-friendly interface and compatibility with a wide range of devices, this programmer module is an essential tool for professionals and hobbyists alike. The inclusion of the SOIC8 SOP8 Test Clip ensures compatibility with a broad range of chips, making it a valuable asset for any integrated circuit enthusiast.
**Ease of Use and Compatibility**
The CH341A USB Programmer Module is engineered for simplicity and ease of use. It supports the automatic recognition of 25 series chips, making it a reliable solution for both beginners and seasoned professionals. The module’s USB to TTL port facilitates getting root online, while the CH341A chip ensures compatibility with a variety of devices. The module’s 24/25 status indicator lamps provide clear visual feedback during programming, ensuring that users can monitor progress with ease.
**Designed for Performance and Convenience**
The CH341A 24 25 Series EEPROM Flash BIOS USB Programmer Module is not just about functionality; it’s also about convenience. It comes with a 5V-3.3V power supply output, which means users can power their devices directly from the module. The module’s compact size and lightweight design make it portable, allowing users to take it wherever they go. The module’s performance is enhanced by its ability to expand its utility through the SPI pin, providing additional functionality to users as needed. Despite its advanced features, the module remains user-friendly, making it an indispensable tool for anyone involved in the field of integrated circuits.
Ondersteunt o.a. de volgende 24 serie chips:
| Fabrikant | Modellen |
|---|---|
| ATMEL | AT24C01B, AT24C01, AT24C01A, AT24C02, AT24C02A, AT24C02B, AT24C04B, AT24C04, AT24C04A, AT24C08A, AT24C08B, AT24C08, AT24C16, AT24C16A, AT24C16B, AT24C32B, AT24C32A, AT24C32, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256B, AT24C256, AT24C256A, AT24C512B, AT24C512A, AT24C512, AT24C1024, AT24C1024A, AT24C1024B |
| CATALYST | CAT24C01L, CAT24WC01, CAT24WC02, CAT24C02, CAT24C04, CAT24WC04, CAT24WC08, CAT24C08, CAT24WC16, CAT24C16, CAT24WC32, CAT24C32, CAT24WC64, CAT24C64, CAT24WC128, CAT24C128, CAT24WC256, CAT24C256, CAT24C512, CAT24WC512, CAT24C1024, CAT24WC1024 |
| COMMON 24C | 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V, 24C2048 3V, 24C2048 5V, 24C4096 3V, 24C4096 5V |
| FM | FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C17L, FM24C16L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L |
| HT | HT24Q01, HT24LC01, HT24Q02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24LC32, HT24C32, HT24LC64, HT24C64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24LC512, HT24C512, HT24C1024, HT24LC1024 |
| IS | IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024 |
| MIC | MIC24LC01, MIC24AA01, MIC24AA01A, MIC24LC01B, MIC24LC02B, MIC24AA02, MIC24C02C, MIC24AA02S, MIC24AA04, MIC24LC04B, MIC24LC02A, MIC24AA02A, MIC24LC025, MIC24LC08B, MIC24AA08, MIC24LC16B, MIC24AA16, MIC24LC32, MIC24AA32, MIC24LC64, MIC24FC64, MIC24AA64, MIC24FC128, MIC24AA128, MIC24LC128, MIC24AA256, MIC24LC256, MIC24FC256, MIC24AA512, MIC24LC512, MIC24FC512, MIC24AA1024 |
| NSC | NSC24C02L, NSC24C02, NSC24C64 |
| FM (extra) | FM24CL04, FM24C04A, FM24CL16, FM24C16A, FM24CL64, FM24C64, FM24C256, FM24CL256, FM24C512 |
| ROHM / BR | BR24L01, BR24C01, BR24L02, BR24C02, BR24L04, BR24C04, BR24L08, BR24C08, BR24L16, BR24C16, BR24L32, BR24C32, BR24C64, BR24L64 |
| ST | ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64 |
| XICOR | X24C01, X24C02, X24C04, X24C08, X24C16 |
Ondersteunt o.a. de volgende 25/26 serie chips:
| Fabrikant | Modellen |
|---|---|
| AMIC | A25L512, A25L05P, A25L10P, A25L010, A25L020, A25L20P, A25L40P, A25L040, A25L080, A25L80P, A25L016, A25L16P, A25L032 |
| ATMEL | AT25F512, AT25F512B, AT25F512A, AT25FS010, AT25F1024, AT25F1024A, AT25F2048, AT25DF021, AT25F4096, AT25FS040, AT25DF041A, AT26F004, AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321A, AT26DF321, AT25DF321, AT25DF641 |
| COMMON | 25X005, 25X05, 25X10, 25X20, 25X40, 25X80, 25X16, 25X32, 25X64, 25X128, 25X256, 25X512, 25X1024, 25X2048 |
| EON | EN25F05, EN25P05, EN25LF05, EN25F10, EN25LF10, EN25D10, EN25P10, EN25F20, EN25D20, EN25LF20, EN25F40, EN25D40, EN25LF40, EN25Q80, EN25D80, EN25F80, EN25P80, EN25T80, EN25B16T, EN25T16, EN25B16, EN25D16, EN25F16, EN25Q16, EN25P32, EN25Q32, EN25F32, EN25B32, EN25B32T, EN25Q64, EN25B64, EN25F64, EN25B64T, EN25F128, EN25Q128 |
| ES | ES25P10, ES25P20, ES25M40A, ES25M40, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32 |
| ESMT | F25L04UA, F25L004A, F25L08PA, F25L008A, F25L016A, F25L16PA, F25L32QA, F25L32PA |
| GIGADEVICE | GD25Q512, GD25Q10, GD25Q20, GD25F40, GD25D40, GD25Q80, GD25D80, GD25T80, GD25F80, GD25Q16, GD25Q32, GD25Q64, GD25Q128 |
| KH | KH25L8036D |
| MXIC | MX25V512, MX25L512, MX25L1005, MX25L2005, MX25L8035, MX25L4005A, MX25V4035, MX25V4005, MX25V8005, MX25L8005, MX25L1635D, MX25L1605D, MX25L1608D, MX25L3235D, MX25L3208D, MX25L3237D, MX25L3225D, MX25L3205D, MX25L3206E, MX25L6405D, MX25L6455E, MX25L6408D, MX25L6406E, MX25L6445E, MX25L12805D, MX25L12845E |
| NEXFLASH | NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32 |
| NSHINE | MS25X05, MS25X10, NS25X20, MS25X40, MS25X80, MS25X16, MS25X32, MS25X64, MS25X128 |
| PMC | PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B |
| SAIFUN | SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320 |
| SPANSION | S25FL004A, S25FL040A, S25FL008A, S25FL160, S25FL016A, S25FL032A, S25FL064A, S25FL128P, S25FL129P, S25FL128A |
| SST | SST25VF512A, SST25VF512, SST25VF010, SST25VF010A, SST25VF020A, SST25VF020, SST25VF040B, SST25VF040A, SST25VF040, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064C |
| ST | M25P05A, M25PE10, M25P10A, M25P20, M25PE20, M25PE40, M25P40, M25PE80, M25P80, M25PX80, M25PX16, M25P16, M25PE16, M25P32, M25PE32, M25PX32, M25PX64, M25P64, M25PE64, M25P128 |
| WINBOND | W25X10, W25X10L, W25P10, W25X10AL, W25X10A, W25P20, W25X20AL, W25X20A, W25X20, W25X20L, W25X40A, W25P40, W25Q40BV, W25X40L, W25X40, W25X40AL, W25Q80BV, W25Q80V, W25X80, W25P80, W25X80A, W25X80L, W25X80AL, W25P16, W25Q16BV, W25Q16V, W25X16, W25Q32BV, W25Q32V, W25X32, W25P32, W25Q64BV, W25X64, W25Q128BV |
Aanvullende informatie
| Gewicht | 100 g |
|---|---|
| Afmetingen | 7 × 7 × 3 mm |
