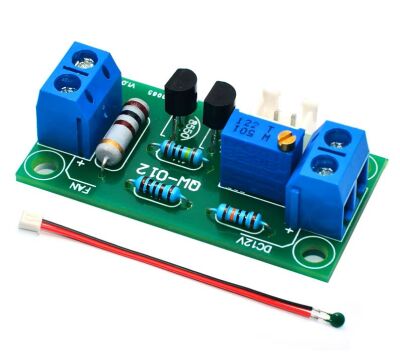

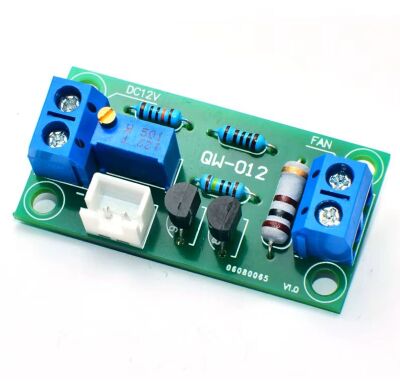

Ventilator toerental temperatuur controller module 12VDC max 200mA QW-012

Beschrijving

Let op: geschikt voor ventlatoren van 12VDC en max. 200mA (2-pin en 3-pin)

Working principle:

The circuit is equipped with a constant resistance, and the fan will rotate at a low speed when it is powered on. When the temperature control probe detects the temperature

Above the preset value, the circuit will control the fan speed to increase until the temperature is constant, if the temperature continues

When it rises, the fan will continue to accelerate until it is close to full power;

Applicable occasions:

Various industrial control power supplies and equipment, power amplifiers, computers, etc;

Fan specifications:

Please be sure to select the fan with current consumption less than 200mA to reduce the heating of the control panel

Board making is only applicable to DC 12V power supply and fan, and other specifications are strictly prohibited;

Specs:

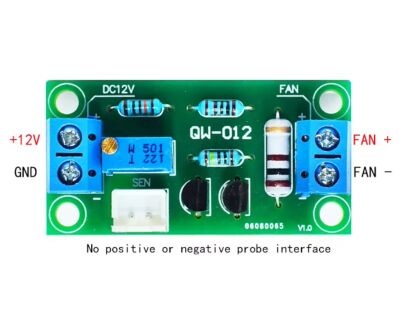

Voltage:DC 12V (only can use DC 12V)

Characteristic: Linear adjustable temperature

Temperature range: Linear adjustable temperature

Temperature control range: About 45-100 ℃ can be adjusted

Size:about 43.6mm*22mm*13mm
