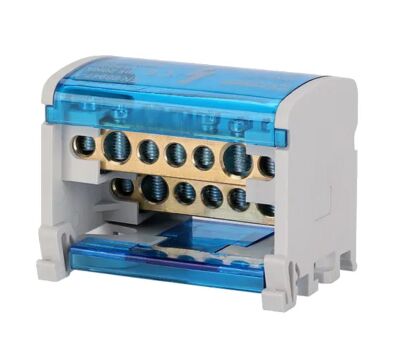

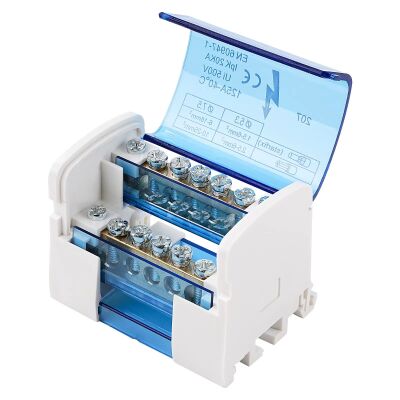

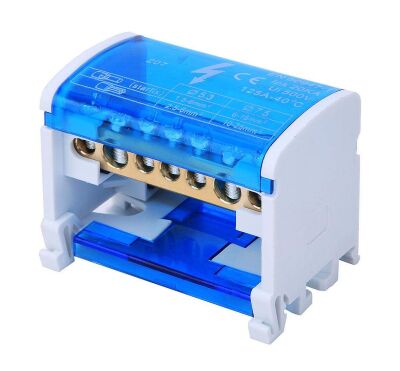

Verdeelblok 2-rails 125A 500V DIN-rail UK 207 blauw

Beschrijving

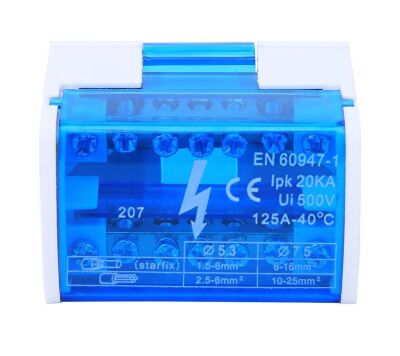

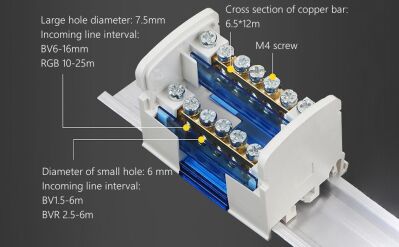

Gaten groot:

• 6 mm² t/m 16 mm² (massief)
• 10 mm² t/m 25 mm² (flexibel)

Gaten klein:

• 1.5 mm² t/m 6 mm² (massief)

• 2.5 mm² t/m 6 mm² (flexibel)

Let op: 125A (piek) is per rail en in ideale omstandigheden (mits goed gekoeld), houd 100A nominaal aan.

Features:

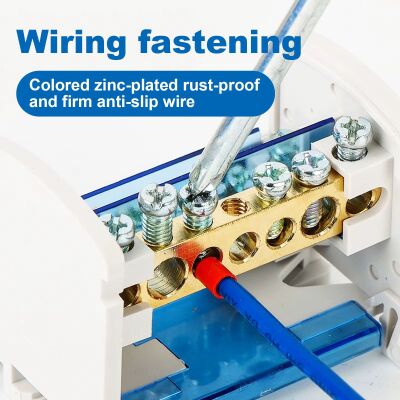

**Optimized Wiring Efficiency**
The 207 UKK 125A Din Rail Terminal Block Distribution Box is a professional-grade solution for electrical wiring. Its compact design, with a 2-layer junction box and 2 x 7 holes, allows for efficient wire management and space-saving installation. The terminal distribution box is crafted from high-quality PA nylon, providing a durable and flame-retardant enclosure that protects the internal components. The brass terminals, with a maximum current resistance of 125A, ensure reliable power transmission and long-lasting performance.

**Versatile Application and Safety**

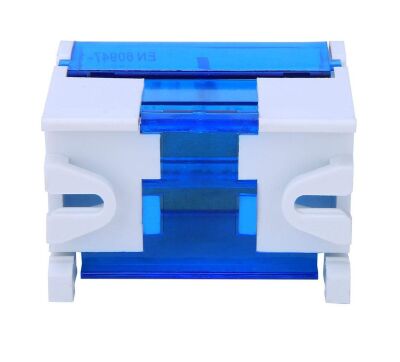

This junction box is not just about functionality; it’s designed with safety in mind. The transparent dustproof design allows for easy inspection of internal wiring without the need to open the cover plate, ensuring that the electrical connections remain safe and secure. The box’s 94V-2 flame retardant rating and solvent resistance properties make it an ideal choice for electrical cabinets and industrial applications. Its operating temperature range of -30℃ to 110℃ guarantees reliability in various environments.

**Ease of Installation and Maintenance**

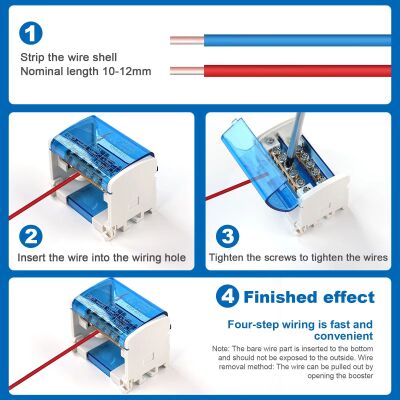

Installation is a breeze with the DIN rail mounting method, which provides a secure and stable connection. The terminal distribution box is a universal wire connector, suitable for a wide range of applications. Whether you’re working in electrical engineering or DIY projects, this junction box is designed to simplify your wiring tasks. Its lightweight and compact size make it easy to handle and install, ensuring that your electrical projects are completed efficiently and safely.

Model: 2-level junction box 207

Rated Current: 125A

Rated Voltage: 500V

Product Outlet: 2 input 12 output

Number of Holes: 2×7

Brass Rod: 6.5 x 12mm

Metal Material: Brass, primary color

Shell Material: High quality PA nylon material

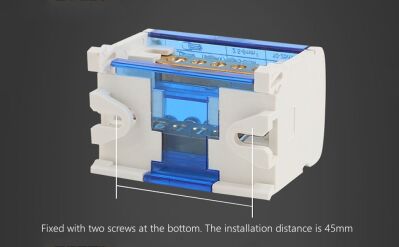

Installation: Din Rail

Application: Cabinet

Application Area: Electrical engineering

Fire Rating: 94V-2 flame retardant, solvent resistance, good impact resistance

Working Temperature: -30℃ ~ 110℃

Applicable Power Range: 250-450V

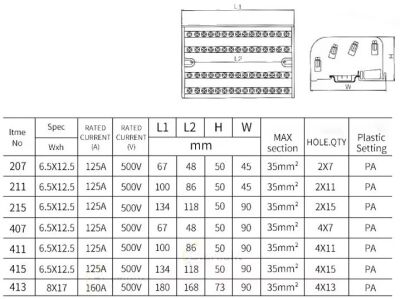

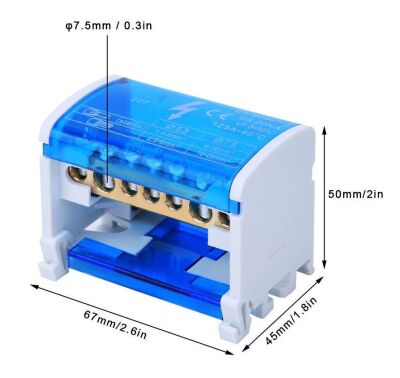

Size: Approx. 67 x 45 x 50mm / 2.6 x 1.8 x 2in
