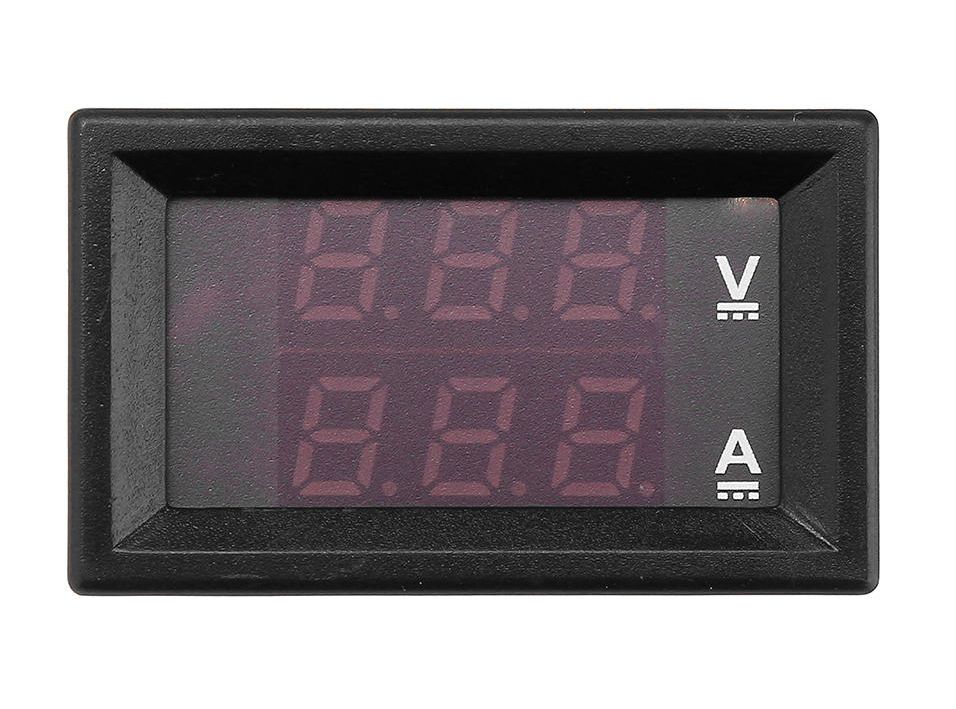

Voltmeter en Amperemeter 0-100V 0-10A segment display 0.28inch rood en blauw

Beschrijving

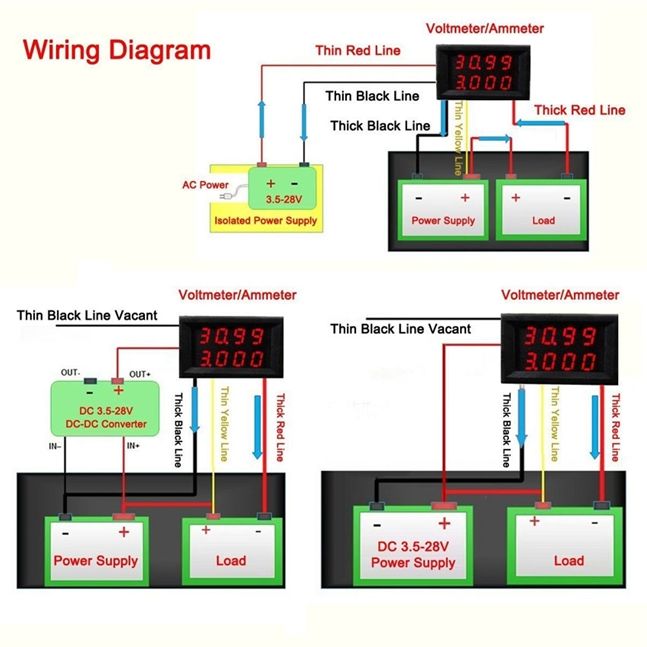

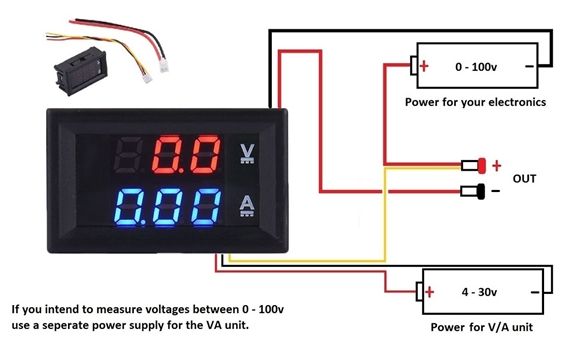

Kleine digitale voltmeter tot 100V en 10A eenvoudig aan te sluiten, werkspanning module 4-30V.

Informatie (ENG)

Specifications:
Working voltage: DC 4 – 30V (maximum input voltage can not exceed 30V, otherwise the meter will burn)
Working current: ≤20mA
Voltage measurement range: DC 0 – 100V
Current measurement range: DC 0 – 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measurement accuracy: 1% (±1 digit)
Display: 0.28″ digital tube, two-color blue and red
Refresh rate: about 300mS / time
Size: 48mm * 29mm * 26mm
Working temperature: -10 ° C – + 65 ° C

Extra informatie

Gewicht	100 g
Afmetingen	2,5 × 5 × 2 mm
