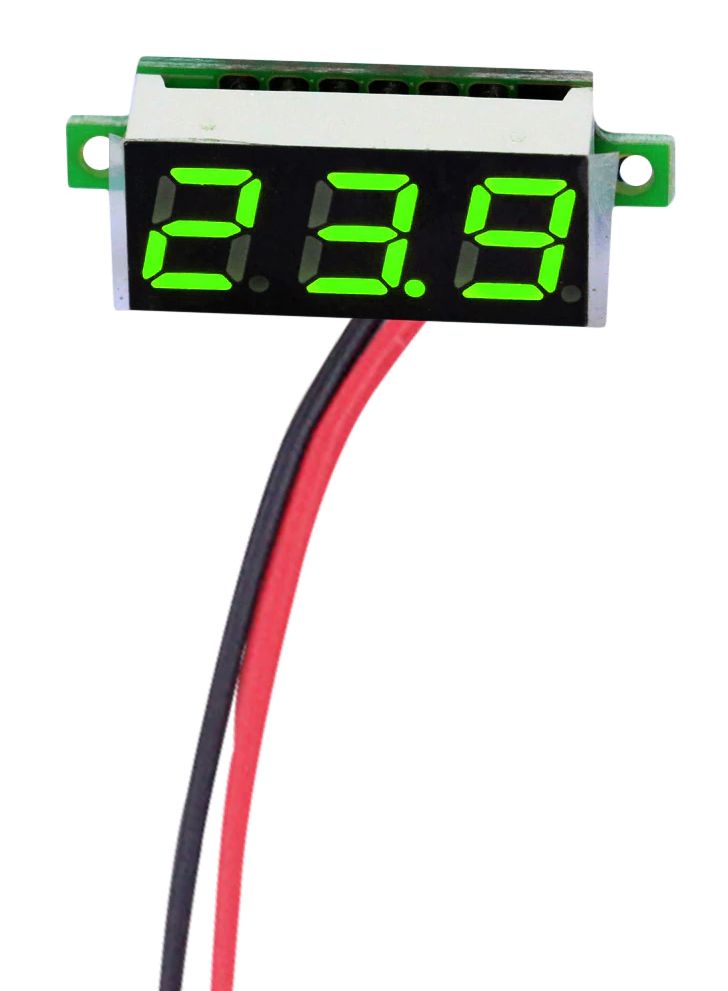

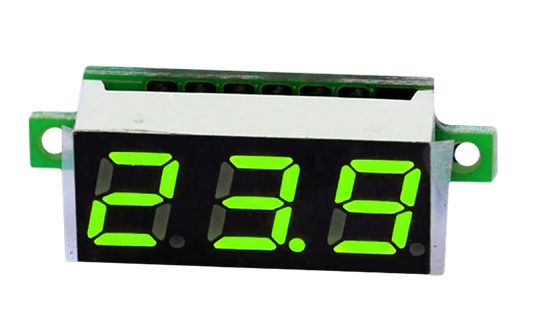

Voltmeter mini 2.5V – 30V segment display 0.28 inch groen

Beschrijving

Kleine digitale voltmeter tot 30V eenvoudig aan te sluiten.

Informatie (ENG)

Specifications:
Measuring range:DC 2.5V-30V
Working current:<30Ma
Input range:Dc 5-30V
Display:Three:0.28inch digital tube
Dimensions:31mm*11.5mm*9mm(L*W*H)
Measurement accuracy:1%
Operation Temp:-10 graden celcius-+80 graden celcius

Notes:
when we measure the voltage less than 10V, our voltmeter display the figure is accurate to two decimal places;when we measure the voltage more than 10V,our voltmeter display the figure is accurate to one decimal places.

The voltmeter is easy to connect, the conventional two lines, red positive, black negative, there is reverse connection protection, and the connection does not burn.

Extra informatie

Gewicht	3 g
Afmetingen	3 × 1 × 1 mm
