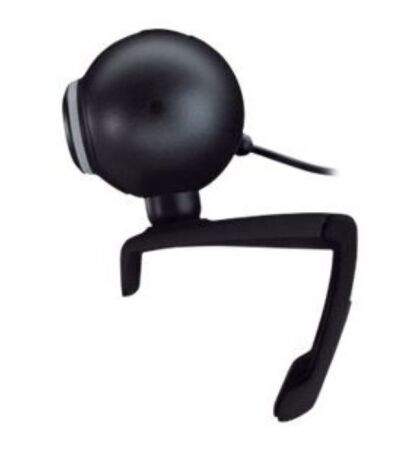

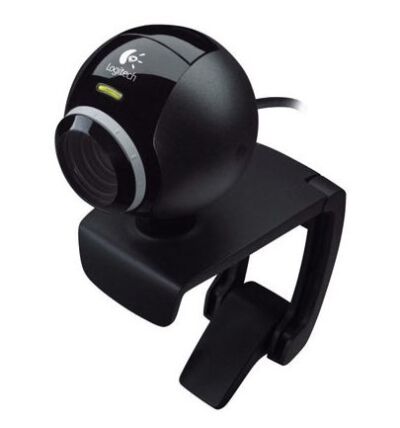

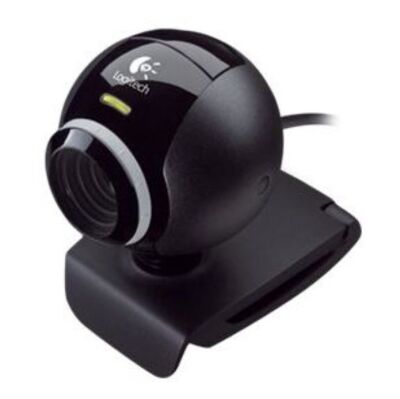

Webcam UVC Logitech QuickCam E 3500 grijs/zwart 320×240 USB-A V-UCU56

Beschrijving

Dit is een 2e KANS (vintage) artikel/product, en is mogelijk getest op werking/functionaliteit! het product kan eventuele gebuikersporen bevatten.

— GARANTIE 14 dagen na aankoop —

Windows:

Werkt! (UVC)

Linux:
Werkt!

Start making video calls without installing software. Capture photos at 1.3-megapixel resolution and enjoy great-looking images even in dimlight thanks to our exclusive RightLight™ technology.
Overview
– 1.3-megapixel photos: Capture high-quality VGA (640 x 480) video and 1.3-megapixel (software-enhanced) images.
– RightLight™ technology: Automatically produces improved image clarity, even in dim lighting.
– RightSound™ technology: Ensures crystal clear conversations without annoying background noise.

Convenience
– Built-in microphone: Ensures the whole family can take part in the conversation.
– Plug-and-play video calling: Make video calls without installing software. Just connect the webcam to get started.
– Universal monitor clip: Attaches securely to ultra-thin notebook monitors and desktop monitors alike, or can be placed on flat surfaces.
– Compatibility: Use it with all major instant messaging programs.

---

lsusb

Bus 001 Device 010: ID 046d:09a4 Logitech, Inc. QuickCam E 3500

dmesg

New high-speed USB device number 10 using ehci-platform
New USB device found, idVendor=046d, idProduct=09a4, bcdDevice= 0.06
New USB device strings: Mfr=0, Product=0, SerialNumber=2
SerialNumber: 2B769420
Found UVC 1.00 device <unnamed> (046d:09a4)
input: UVC Camera (046d:09a4) as /devices/platform/soc/5200000.usb/usb1/1-1/1-1.2/1-1.2:1.0/input/input8
usb 1-1.2: set volume quirk for QuickCam E3500

---

v4l2-ctl –device=/dev/video1 –all

Driver Info:
        Driver name      : uvcvideo
        Card type        : UVC Camera (046d:09a4)
        Bus info         : usb-5200000.usb-1.2
        Driver version   : 6.1.31
        Capabilities     : 0x84a00001
                Video Capture
                Metadata Capture
                Streaming
                Extended Pix Format
                Device Capabilities
        Device Caps      : 0x04200001
                Video Capture
                Streaming
                Extended Pix Format
Media Driver Info:
        Driver name      : uvcvideo
        Model            : UVC Camera (046d:09a4)
        Serial           : 2B769420
        Bus info         : usb-5200000.usb-1.2
        Media version    : 6.1.31
        Hardware revision: 0x00000006 (6)
        Driver version   : 6.1.31
Interface Info:
        ID               : 0x03000002
        Type             : V4L Video
Entity Info:
        ID               : 0x00000001 (1)
        Name             : UVC Camera (046d:09a4)
        Function         : V4L2 I/O
        Flags            : default
        Pad 0x01000007   : 0: Sink
          Link 0x0200001f: from remote pad 0x100000a of entity 'Extension 4' (Video Pixel Formatter): Data, Enabled, Immutable
Priority: 2
Video input : 0 (Input 1: ok)
Format Video Capture:
        Width/Height      : 320/240
        Pixel Format      : 'MJPG' (Motion-JPEG)
        Field             : None
        Bytes per Line    : 0
        Size Image        : 102400
        Colorspace        : sRGB
        Transfer Function : Rec. 709
        YCbCr/HSV Encoding: ITU-R 601
        Quantization      : Default (maps to Full Range)
        Flags             :
Crop Capability Video Capture:
        Bounds      : Left 0, Top 0, Width 320, Height 240
        Default     : Left 0, Top 0, Width 320, Height 240
        Pixel Aspect: 1/1
Selection Video Capture: crop_default, Left 0, Top 0, Width 320, Height 240, Flags:
Selection Video Capture: crop_bounds, Left 0, Top 0, Width 320, Height 240, Flags:
Streaming Parameters Video Capture:
        Capabilities     : timeperframe
        Frames per second: 15.000 (15/1)
        Read buffers     : 0

User Controls

                     brightness 0x00980900 (int)    : min=0 max=255 step=1 default=128 value=128
                       contrast 0x00980901 (int)    : min=0 max=255 step=1 default=32 value=32
                     saturation 0x00980902 (int)    : min=0 max=255 step=1 default=32 value=32
        white_balance_automatic 0x0098090c (bool)   : default=1 value=1
                           gain 0x00980913 (int)    : min=0 max=255 step=1 default=0 value=0
           power_line_frequency 0x00980918 (menu)   : min=0 max=2 default=2 value=2 (60 Hz)
                                0: Disabled
                                1: 50 Hz
                                2: 60 Hz
      white_balance_temperature 0x0098091a (int)    : min=0 max=10000 step=10 default=4000 value=4000 flags=inactive
                      sharpness 0x0098091b (int)    : min=0 max=255 step=1 default=240 value=240
         backlight_compensation 0x0098091c (int)    : min=0 max=2 step=1 default=1 value=1

Camera Controls

                  auto_exposure 0x009a0901 (menu)   : min=0 max=3 default=3 value=3 (Aperture Priority Mode)
                                1: Manual Mode
                                3: Aperture Priority Mode
         exposure_time_absolute 0x009a0902 (int)    : min=1 max=10000 step=1 default=166 value=166 flags=inactive
     exposure_dynamic_framerate 0x009a0903 (bool)   : default=0 value=1
