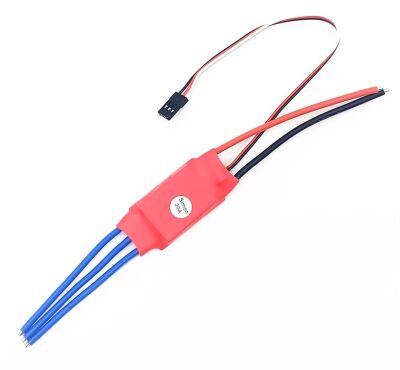

BLDC 3-fase motor ESC 7.4-13V 2S-3S 20A with BEC module SimonK Firmware

Beschrijving

Description:

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

• Highest efficiency 100% N-FET design.
• Highest accuracy with Crystal Oscillator (Temperature won’t affect the PWM operating range like other cheap ESC’s).
• No low voltage cutoff, because any cutoff in a multirotor = crash.
• No over temp cutoff, because any cutoff in a multirotor = crash.
• Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
• 16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
• Super simple, foolproof operation! Nothing to program other than the throttle range.

Specs:

• Cont Current: 20A
• Burst Current: 28A
• BEC Model: Linear mode
• BEC Output: 5V3A
• Li-ion/Li-poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH
• Weight: 21g
• Size: 32*24*7mm
