Chip IC smart card met 8mm HICO magnetische strip SLE4442 PVC wit

Beschrijving

Features:
– SLE4442 with 8mm Hico magnetic stripe
– Material: PVC

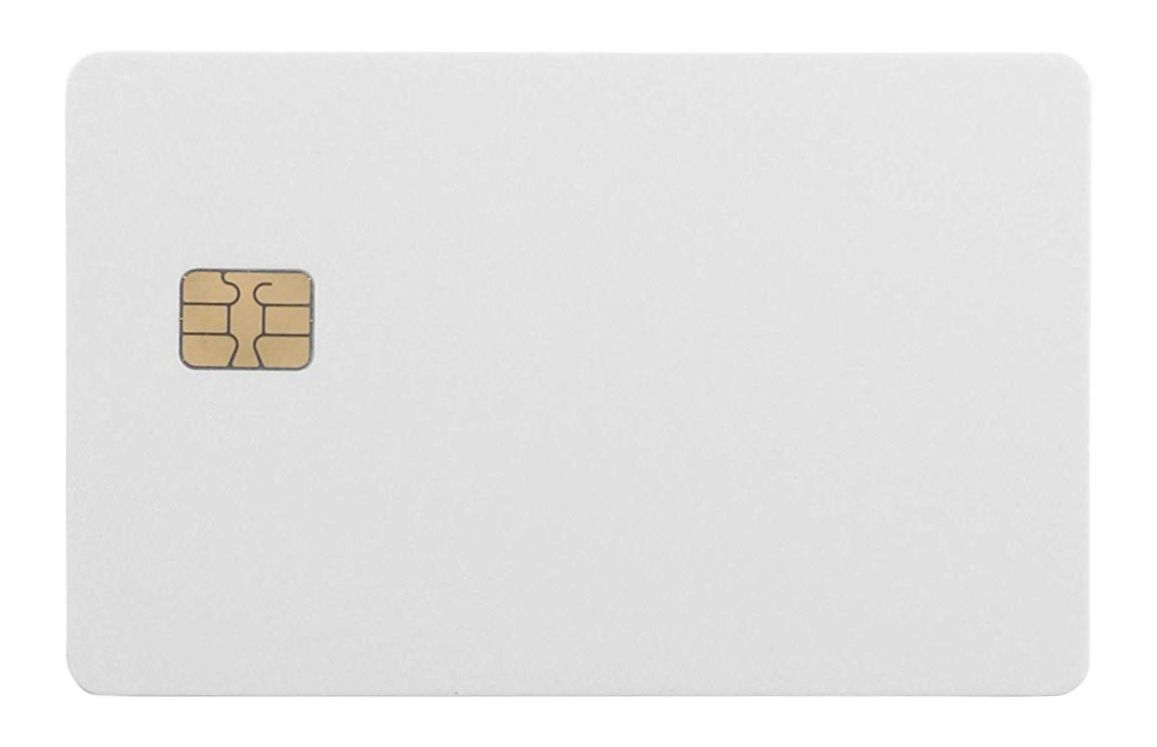

– Blank white card with SLE4442 Chip
– 3 bytes for error counter and card secret code area
– 256*8-bit EEPROM organization
– ISO 7816
– FM4442 compatible

Description:
– 1024 x 8 bit EEPROM organization
– Byte-wise addressing
– Irreversible byte-wise write protection
– 1024 x 1 bit protection memory organization
– Serial three-wire bus
– End of programming indicated on data output
– erase cycles more than 100,000 times
– Each write / erase time 5MS
– Data retention for minimum of ten years
– Contact configuration and serial interface in accordance to
– ISO standard 7816 (synchronous transmission)
– Additional Feature of SLE 4428 Smart Card:
  * Data can only be changed after entry of the correct
  * byte programmable security code (PSC)
– Default passwords: FFFFFF

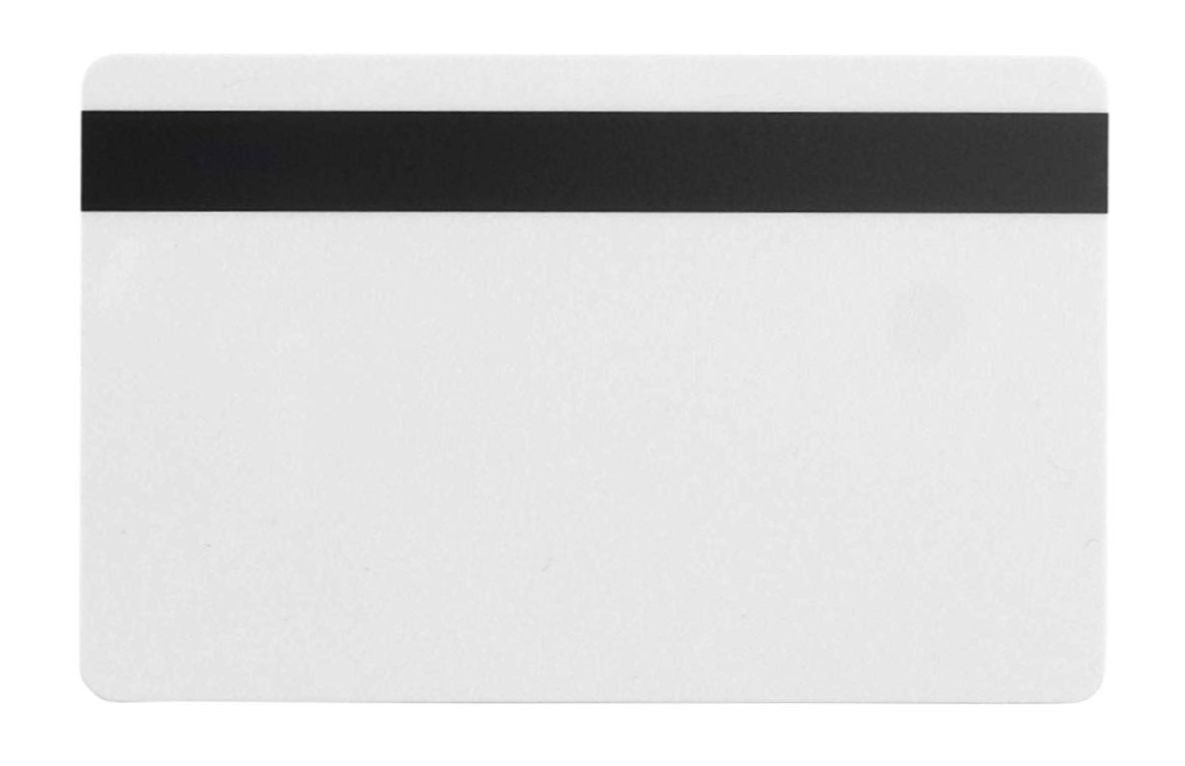

– Hi-co magnetic strip

Application:
Public transportation, Access control management, Club, Supermarket, Medical care, Bank, Parking, School, etc

Extra informatie

Gewicht	6 g
Afmetingen	85 × 55 × 0,8 mm
