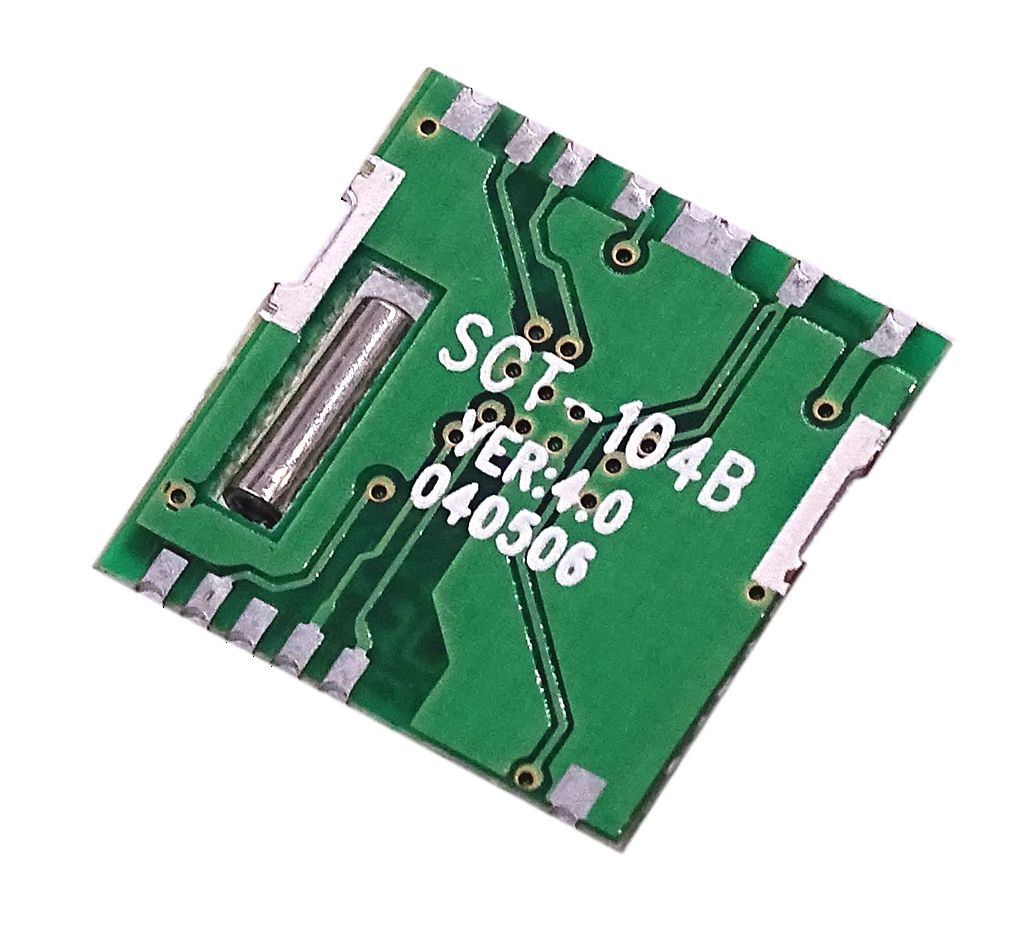

FM Stereo Radio Module I2C TEA5767 SCT-104B

Beschrijving

Specificaties:
– Power supply: 5V
– Frequency range: 76-108MHZ
– PCB size: 31*30mm
– With reverse polarity protection diode
– With power output filtering sensor
– Directly plug antenna interface
– I2C bus communication
– Multi capacitor combined filter
– Blue LED power indicator

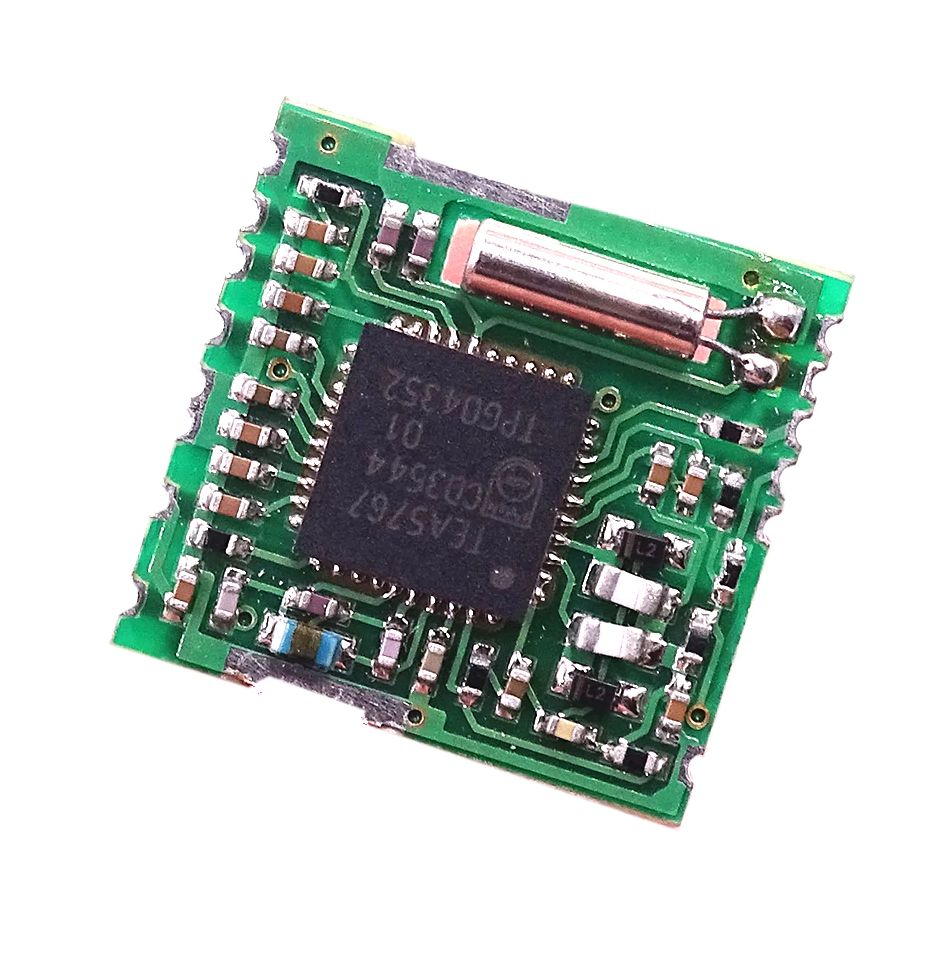

 FM chip module TEA5767
– Onboard 3.5mm audio interface
– If connects with singlechip, only connect the Power Ground and two I2C communication cable

Features:
– LC harmonic oscillator use low cost fixed chip
– No need to adjust Intermediate frequency
– High sensitivity(low noise RF input amplifier)
– High power auto gain control AGC circuit
– Soft mute

Extra informatie

Gewicht	1 g
Afmetingen	2 × 2 × 0,5 mm
Voltage (V)	2.7 ~3.6VDC
Frequentie (Hertz)	76 ~108Mhz
